4BChapter 5: Alarm settings
TruVision DVR 11 and DVR 11c User Manual 29

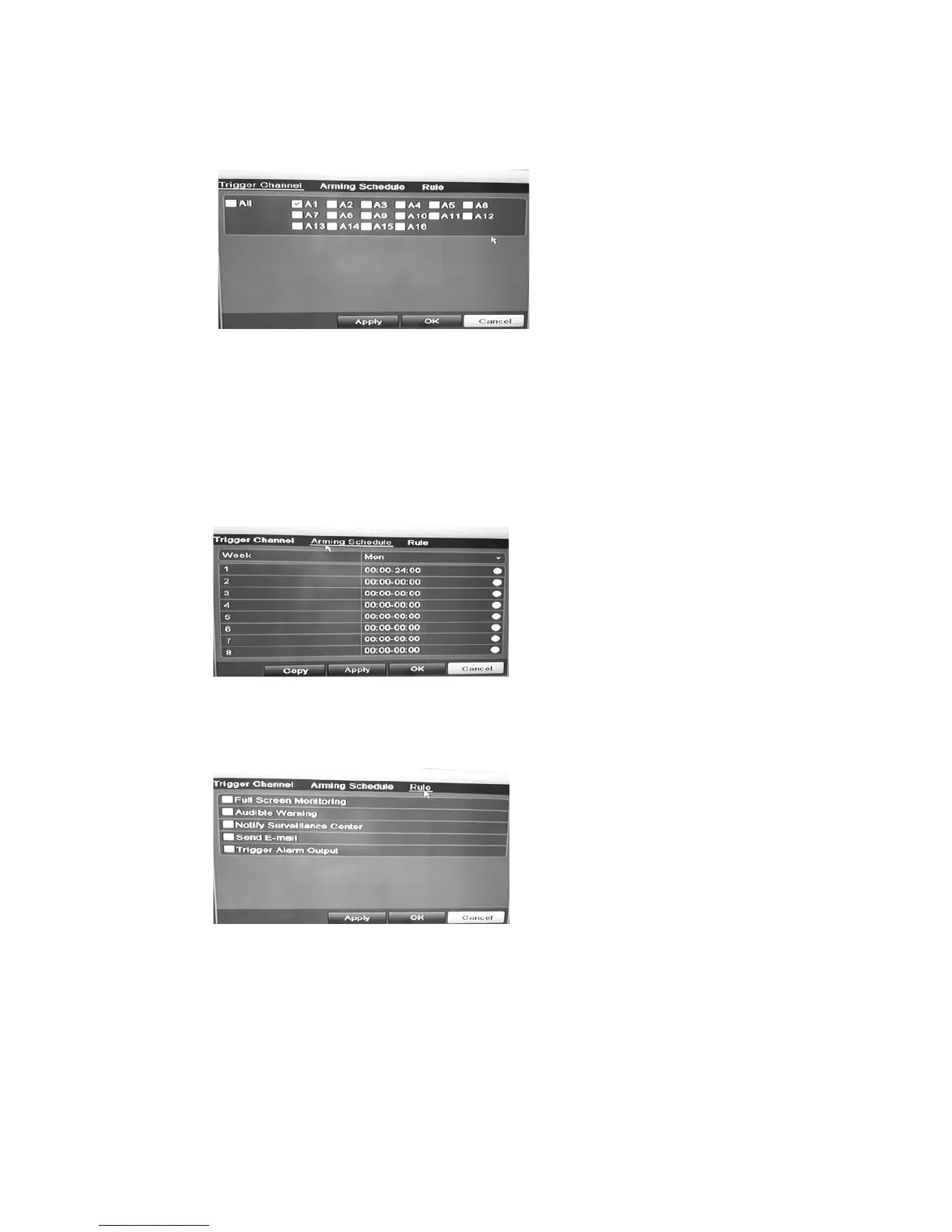

Click Rule. The Rule window appears. Click the Trigger Channel tab and
select the cameras that will record when a motion alarm is triggered. Click
Apply to save the settings.
8. Select the recording schedules for motion detection.
In the Rule window, click the Arming schedule tab and select the day of the
week and the time periods during the day when motion can be recorded. You
can schedule up to eight time periods in a day. Default is 24 hours.
Click Apply to save the settings. Click Copy to copy the settings to other
days of the week.
Note: Time periods defined cannot overlap.
9. Select the response method to motion detection.
In the Rule window, click the Rule tab to define the method by which you want
the DVR to notify you of the alarm. Click Apply to save settings.
10. Click OK to return to the motion detection settings window.
11. Click Back to return to live view.
