5BChapter 6: Network settings
42 TruVision DVR 11 and DVR 11c User Manual

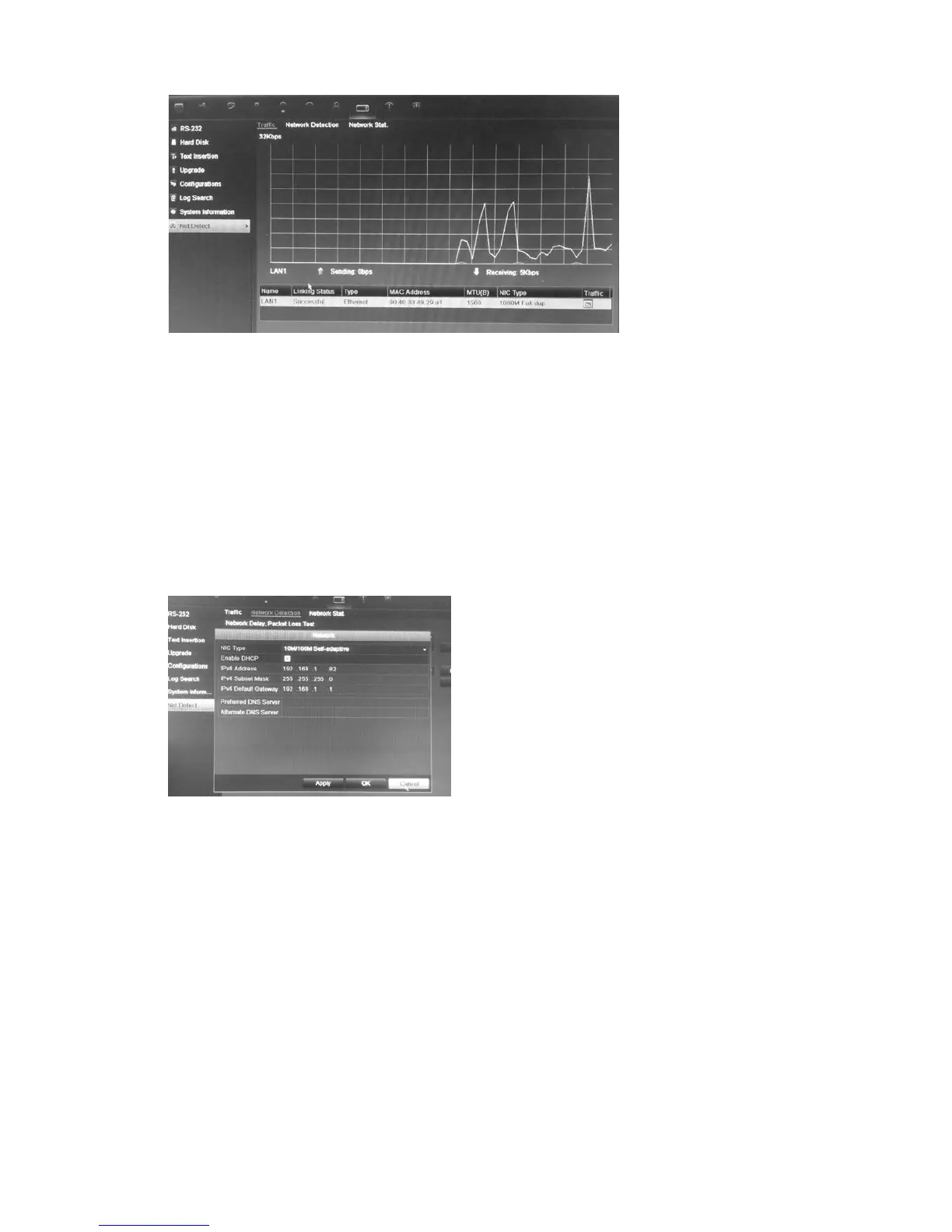

To check network delay and packet loss:
1. Click the System Settings icon in the menu toolbar and then click Net
detect.
2. Select the Network Detection Status tab.
3. Under the section “Network delay, Packet loss test”, enter the destination
address and click Test.
The test result appears in a pop-up window.
4. If you need to check the current network parameters, click the Network
button to get an overview.
The NIC type and Enable DHCP options can be changed. Click Apply to
save any changes made.
To check network statistics:
1. Click the System settings icon in the menu toolbar and then click Net
detect.
2. Select the Network Stat. tab.
3. The latest information is displayed on the bandwidth used by remote live and
playback as well by Net Receive Idle and Net Send Idle. Click Refresh to
update the information.
