X – Draw Box
Description This command is used to draw a box shape.
Syntax Xp
1
,p
2
,p
3
,p
4
,p
5
Parameters p
1
Horizontal start position (X) in dots.
p
2
Vertical start position (Y) in dots.
p
3
Line thickness in dots.
p
4
Horizontal end position (X) in dots.
p
5
Vertical end position (X) in dots.
Example N↵ :Clears image buffer

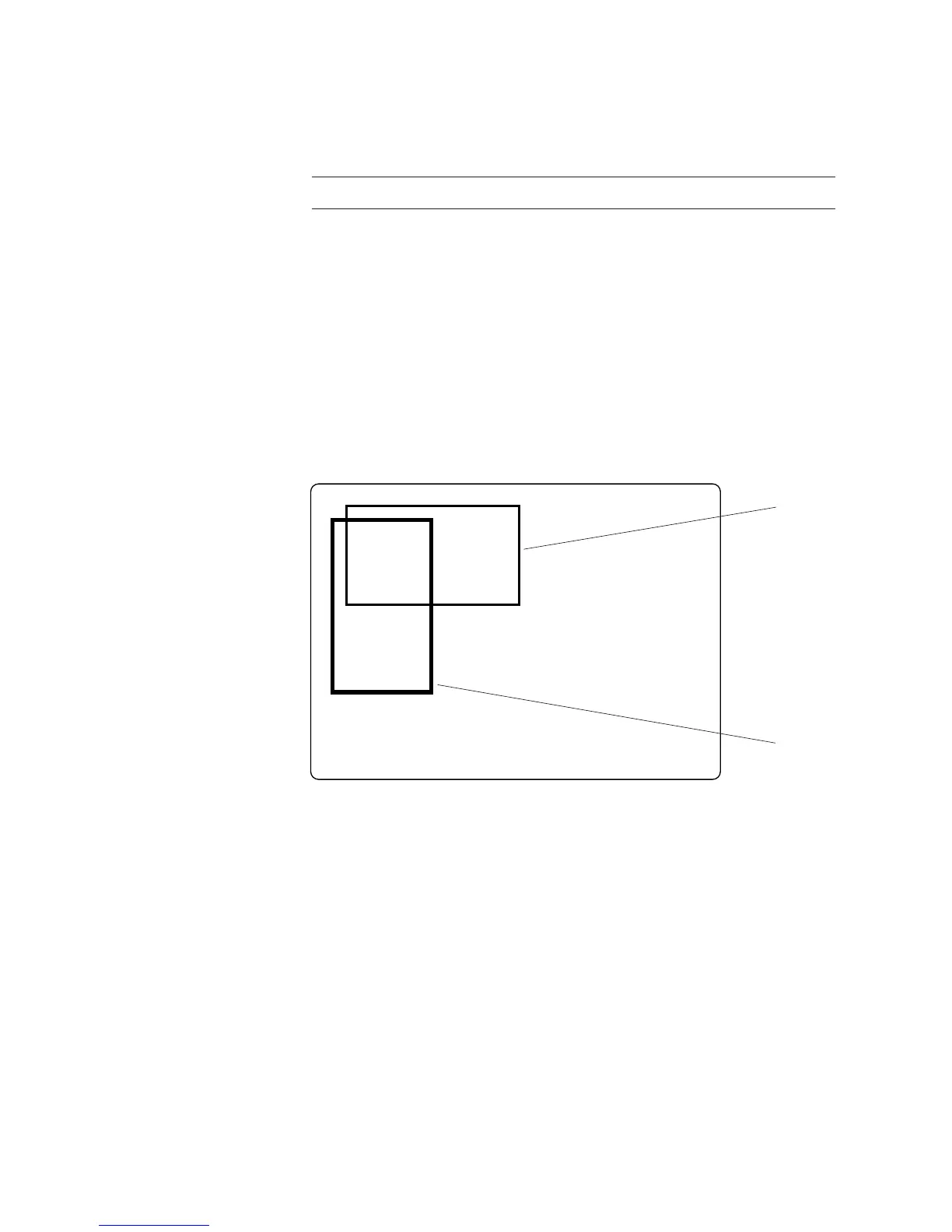

X50,200,5,400,20↵ :Prints box A
X200,50,10,20,400↵ :Prints box B
P1↵ :Prints a label
Box B
Box A
