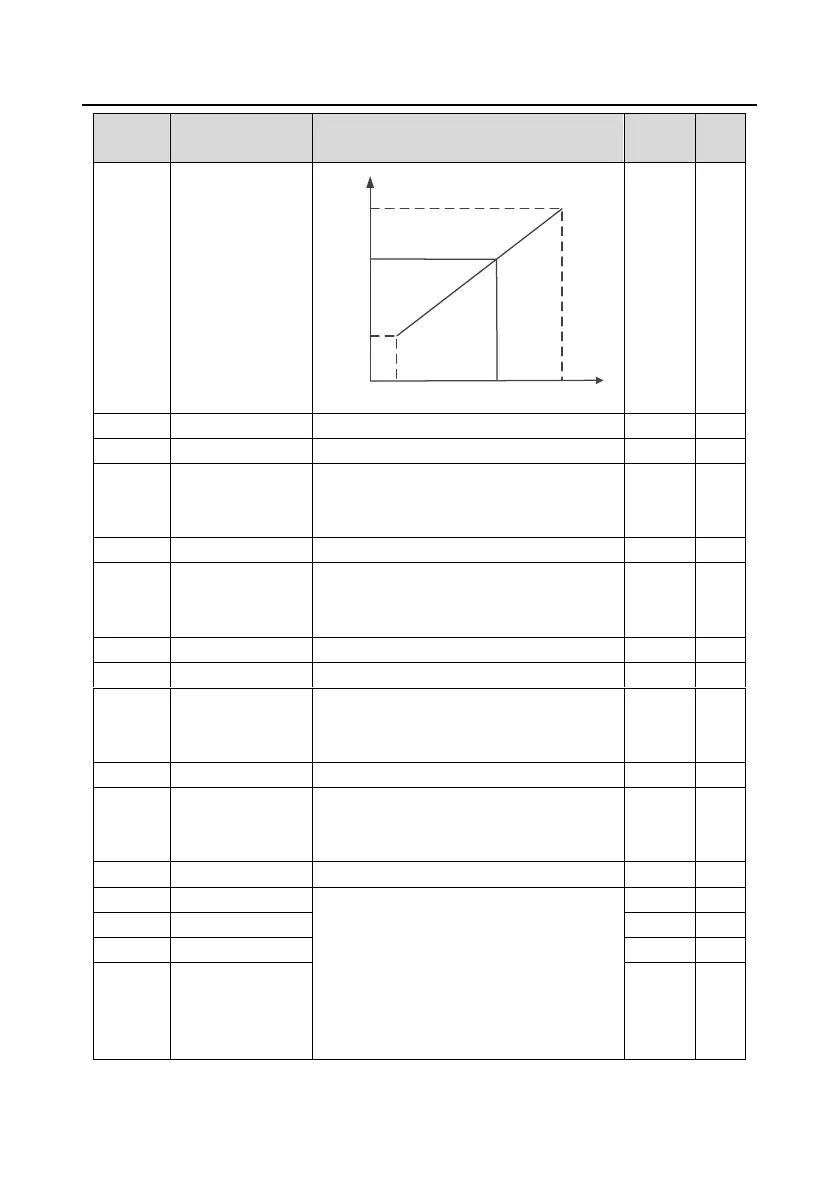

INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Function description
-33-
Function
code
Name
Description
Default
Modify
P18.29
P18.28
P05.38
P05.40
17.20
Mapping
percentage
Mapping
settings
(%)
Input
voltage
P05.41
PT1 input filter time
0.000s–10.000s
0.300s
○
P05.42
P2 lower limit
0.00V–P05.44
2.00V
○
P05.43
Corresponding
setting of P2 lower
limit
-100.0%–100.0%
0.0%
○
P05.44
P2 upper limit
P05.42–10.00V
10.00V
○
P05.45
Corresponding
setting of P2 upper
limit
-100.0%–100.0%
100.0%
○
P05.46
P2 input filter time
0.000s–10.000s
0.200s
○
P05.47
PT2 lower limit
0.00V–P05.49
0.00V
○
P05.48
Corresponding
setting of PT2 lower
limit
-100.0%–100.0%
12.5%
○
P05.49
PT2 upper limit
P05.47–10.00V
10.00V
○
P05.50
Corresponding
setting of PT2 upper
limit
-100.0%–100.0%
75.0%
○
P05.51
PT2 input filter time
0.000s–10.000s
0.300s
○
P06.01
Y1 output
0: Disable
1: Running
2: Running forward
3: Running reversely
4: Jogging
5: Inverter in fault
6–11: Reserved
5
○
P06.02
Reserved
0
○
P06.03
TAC1 output
0
○
P06.04
TAC2 output
0
○
