the carriage belt to maintain slight belt tension so that the car-
riage belt tensioner doesn’t move out of place.
3. While maintaining tension on the carriage belt, attach the car-
riage belt clips to each side of the carriage base.
4. Tighten the carriage belt tensioner by rotating the
9
/
64
-in (3.5-
mm) screw four full clockwise turns.

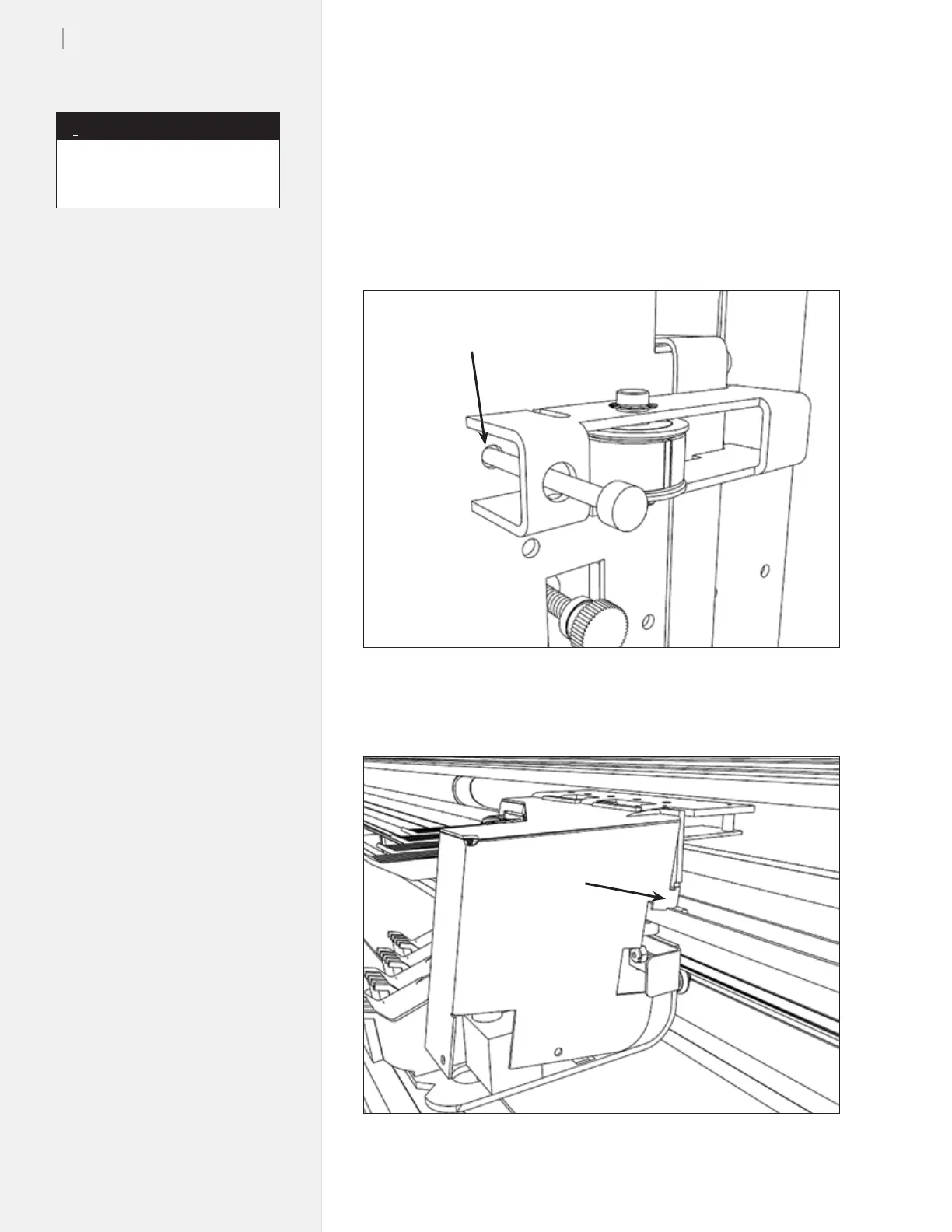

Figure 52. The carriage belt tensioner.
Make sure tensioner
is in holes
Figure 53. Install the carriage cover.
Locking tab
Make sure the belt is not twisted
before attaching the clips.
