Ioline FlexJet - Figure 63. There Should be a Small Gap in the Ribbon Cable Loop

75
Chapter 4: Repair Procedures
5. With the right hand, smooth the ribbon cable bundle beyond
the tape at the middle of the traverse so that the black sleeving
is stretched and lays relatively at and taut.
6. Firmly push the black sleeving into the tape at the middle of
he traverse. If it does not stick, apply the supplied non-foam
backed tape over the foam tape and repeat the process.
7. Move the carriage to the right 10 inches, then slide it back to
the left end plate and ensure that the loop in the cable bundle is
still not touching the left endplate. (Figure 64.)

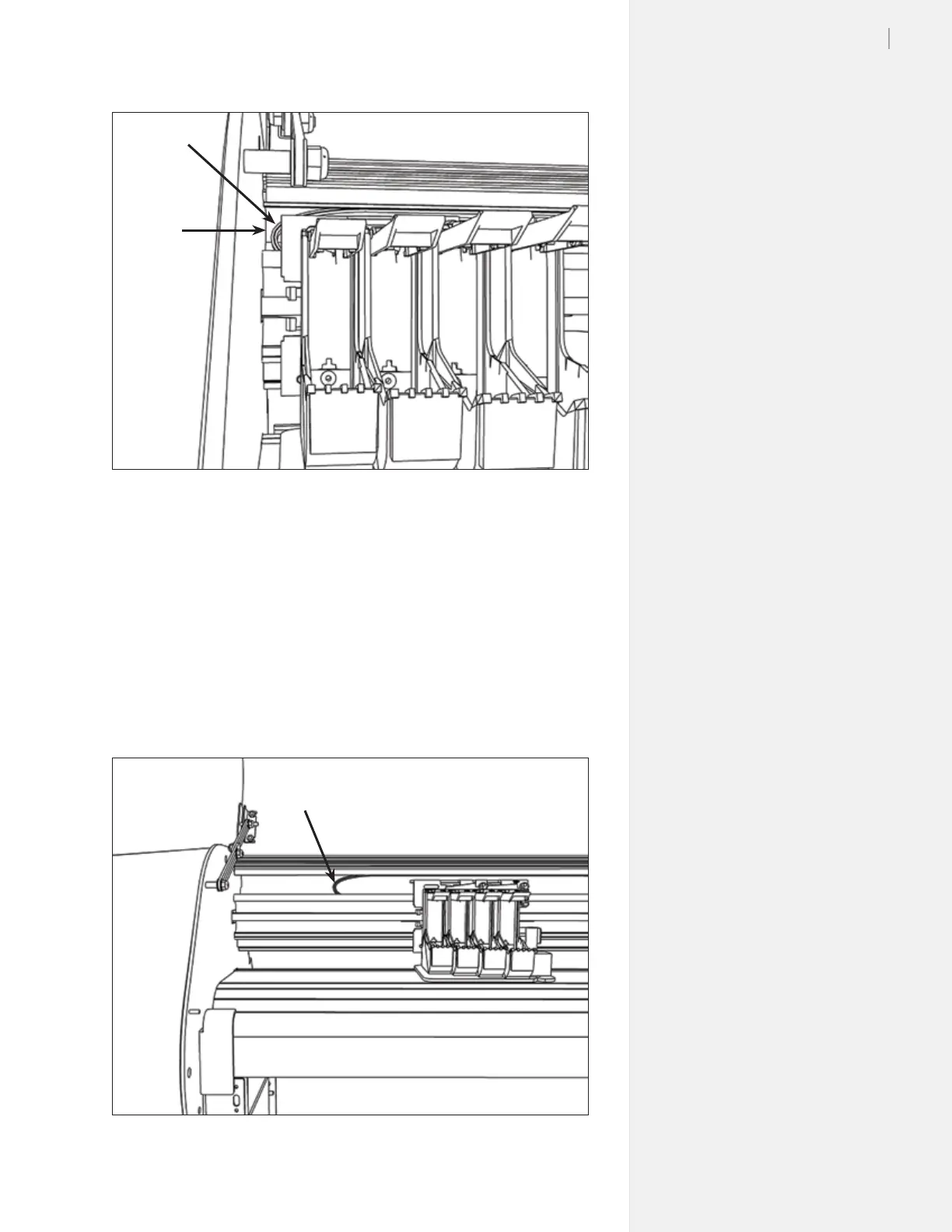

Figure 63. There should be a small gap in the ribbon cable loop.
Gap
Ribbon
Cable
Lop
Ribbon cable
Figure 64. The loop in the cable should not touch the left endplate.
