2.2.1 Call Server
The iPECS UCM has 2 types of server, embedded Gateway Module type and commodity type. The embedded
Gateway Module type servers are UCM-S2K. The commodity servers are UCM-S4K, UCM-S10K and UCM-
S30K and UCM-S60K in the ACT-STB mode.
In the ACT-ACT mode, the commodity servers are UCM-S4K, UCM-S10K, UCM-S30K, UCM-S60K, UCM-
S120K. UCM-S240K, UCM-S480K, and UCM-960K.
2.2.1.1 UCM-S2K
The UCM-S2K (2,000 Ports Embedded Gateway Module Type Server) is equipped with an embedded CPU
Gateway Module and can accommodate up to 2,000 ports. It supports max. 4GB DDR3 memory, SATA2
128GB SSD, 2 USB ports supporting USB 2.0, 10/100/1000Mbps Ethernet 2 ports and VGA (Video Graphics
Array) port.
CPU
Specifications
 Intel CPU ATOM N2800 1.8GHz
Memory
 DRAM: SO-DIMM DDR3 4GB
 SSD 128GB
Network interface
 10/100/1000Mbps Ethernet 2 ports
 USB 2.0 x 2 ports
 VGA 1 port
Others
 Coin Battery: 3V(CR2032)
 Reset switch
 Status LED
Mechanical specification
 Gateway Module dimension (W x L): 255 mm x 334.5 mm (Including card edge)
 Gateway Module weight: 970g

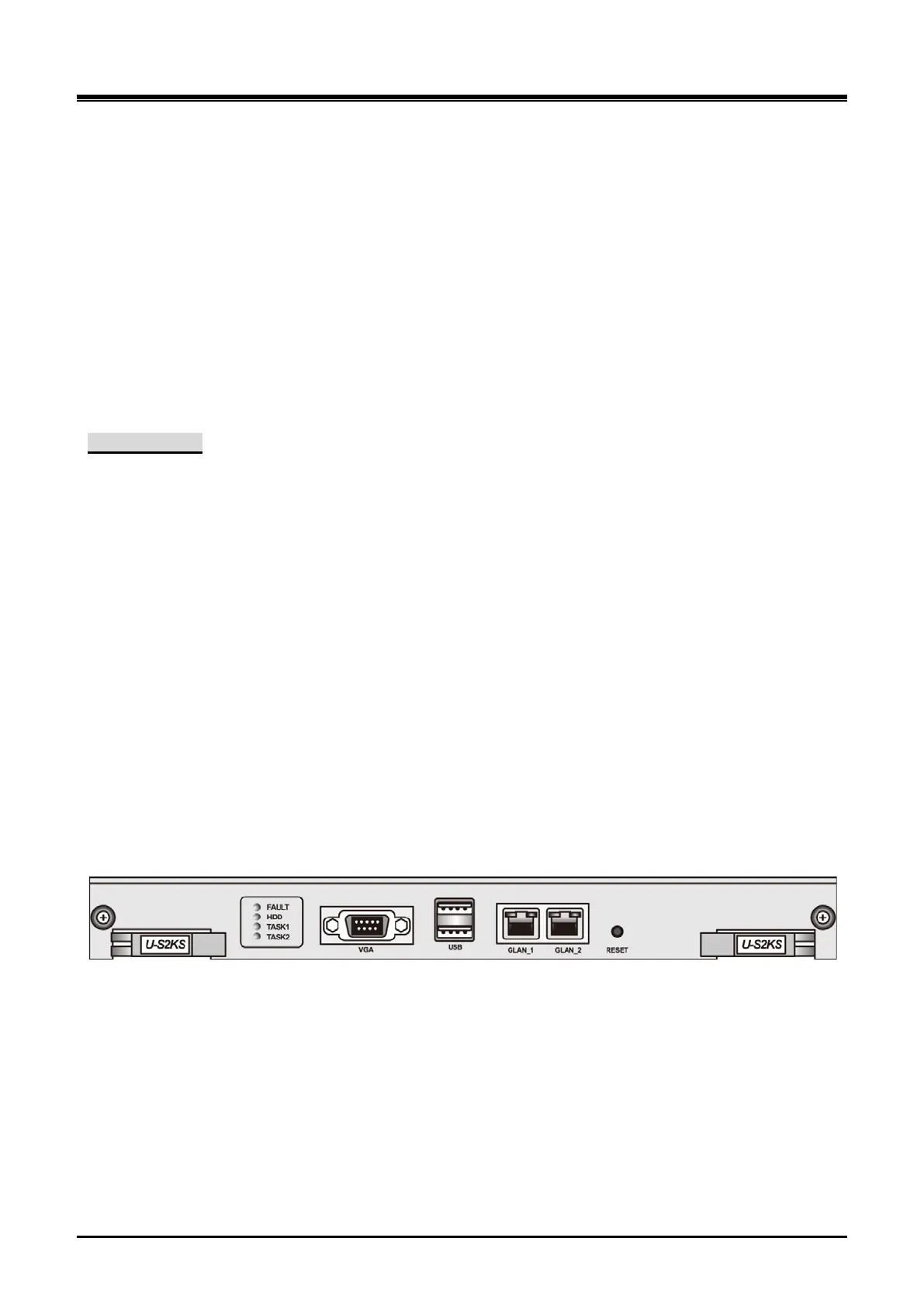

Figure 2-3 UCM-S2K
