3.3.2 UCM-1URMC Installation
The UCM-1URMC provides 1 slot for S2K or Gateway Module.
3.3.2.1 Installing Floor mount & Rack mount
The UCM-1URMC uses to floor standing or rack mounting depending on the environment.
The cabinet must be installed on flat place.
Floor Standing UCM-1URMC
Install the UCM-1URMC in the rack and fix it with the 4 screws in the mounting flange holes.
Rack mounting UCM-1URMC

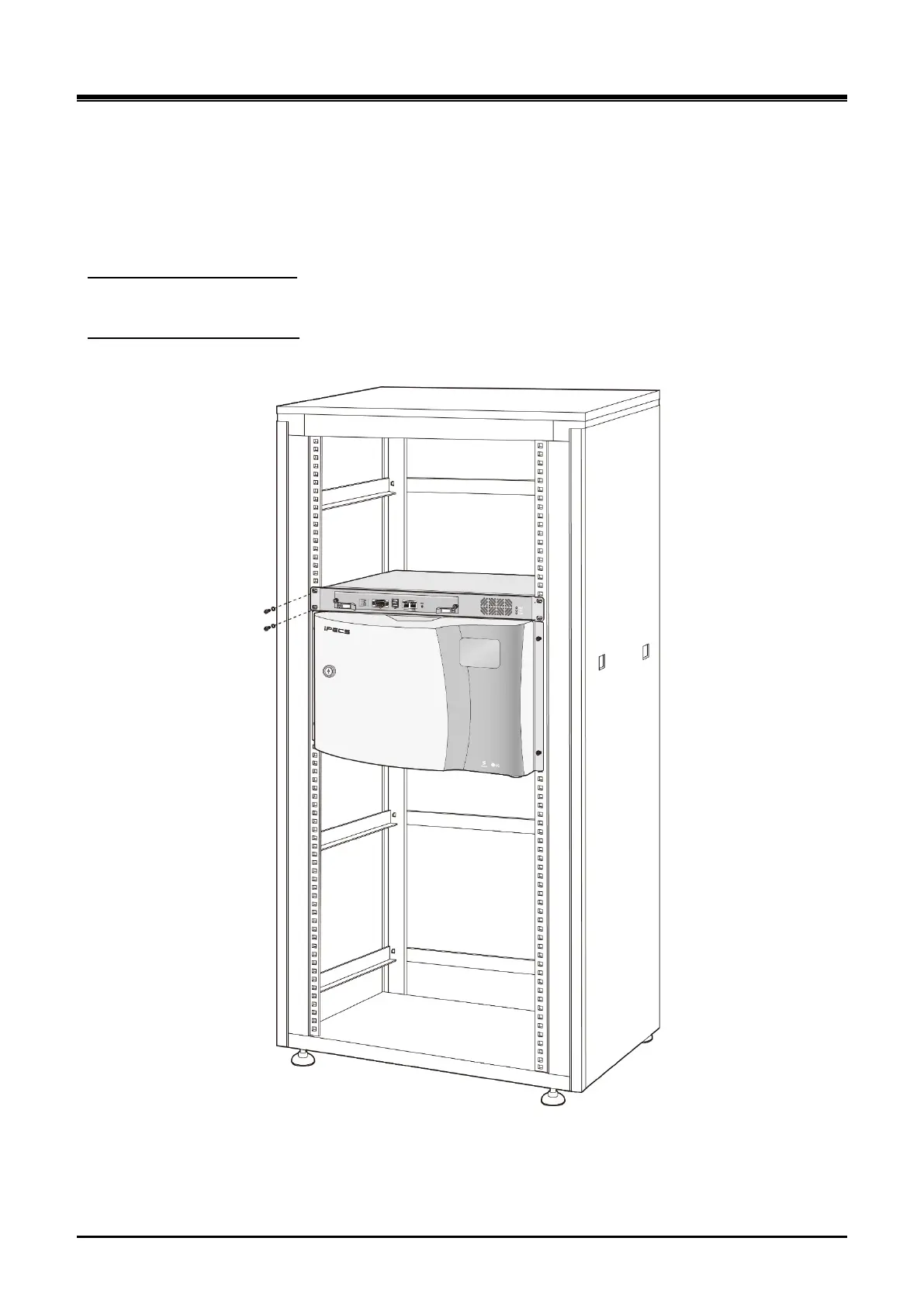

Figure 3-20 UCM-1URMC Installation at the 19” Rack
