2.2.3 Cabinet
The UCM-MGC3 and UCM-1URMC are the Cabinets for iPECS UCM
The UCM-MGC3 (Media Gateway Cabinet) provides 11 slots for UCM-S2K or Media Gateway Modules.
The UCM-1URMC supports 1 slot for UCM-S2K or Media Gateway Module.
2.2.3.1 UCM-MGC3 (Media Gateway Cabinet)
The UCM-MGC3 is designed for floor standing or 19” Rack mounting. It accommodates UCM-S2K or Media
Gateway Modules. It consists of Cabinet, Front Cover (Option sales item), UCM-LCDU, UCM-LANU, UCM-
MGBP3, Fan unit.
The UCM-S2K or Gateway Modules are installed on the 11 universal slots from the left side and the LCDU
and two PSUDs are installed on the right side.
Front view

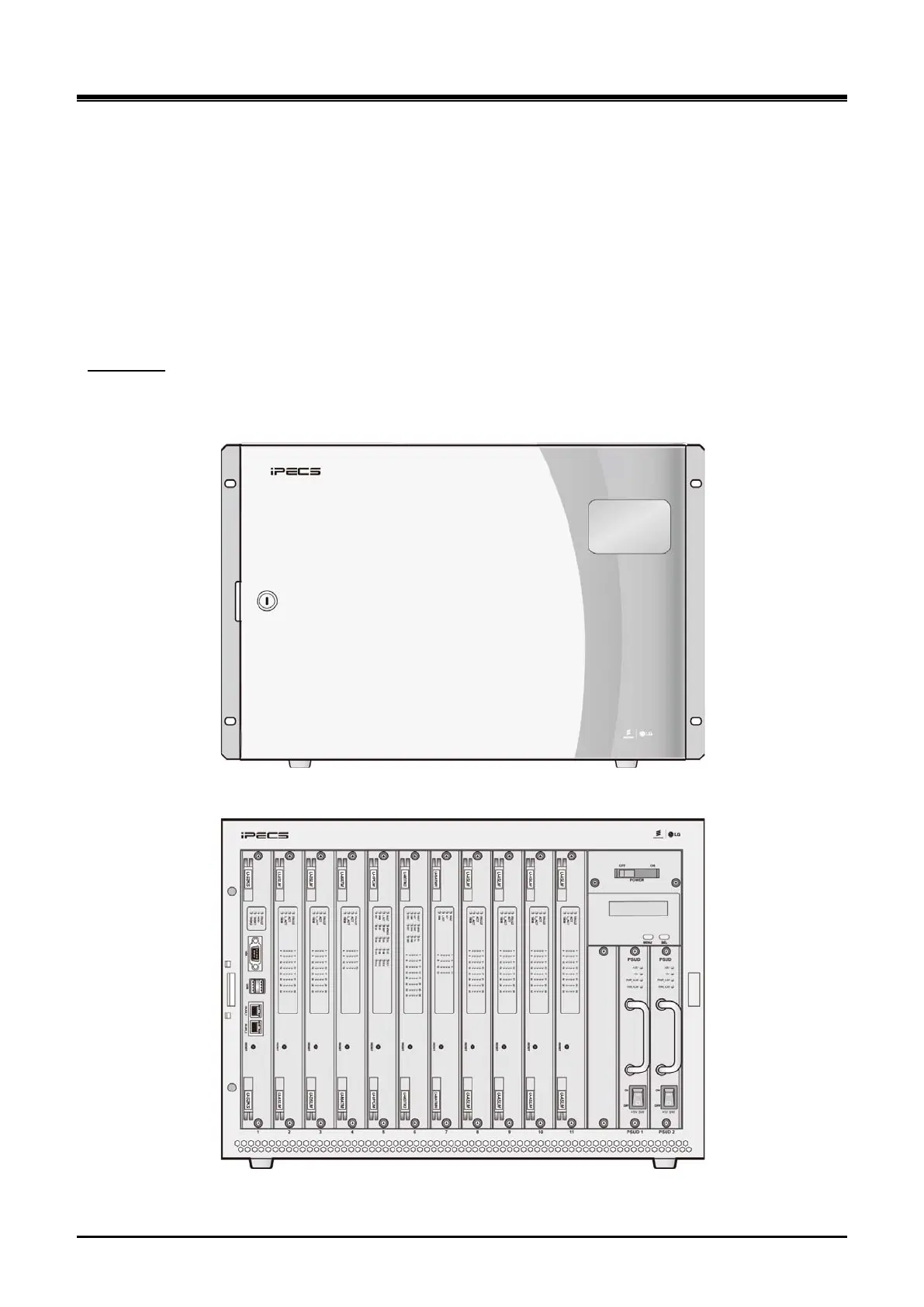

Figure 2-10 UCM-MGC3 Front view (with Front cover)
Figure 2-11 UCM-MGC3 Front view (without Front cover)
