There are Input DC power terminal block (connecting rectifier), RJ11 port (AC/DC Power monitoring), four
RJ45 ports, 11 champ connectors, two SIO ports, two Fan units. For more detail, refer to the chapter3 General
Installation Procedure
Rear view
LAN1 and LAN2 support Gigabit Ethernet.

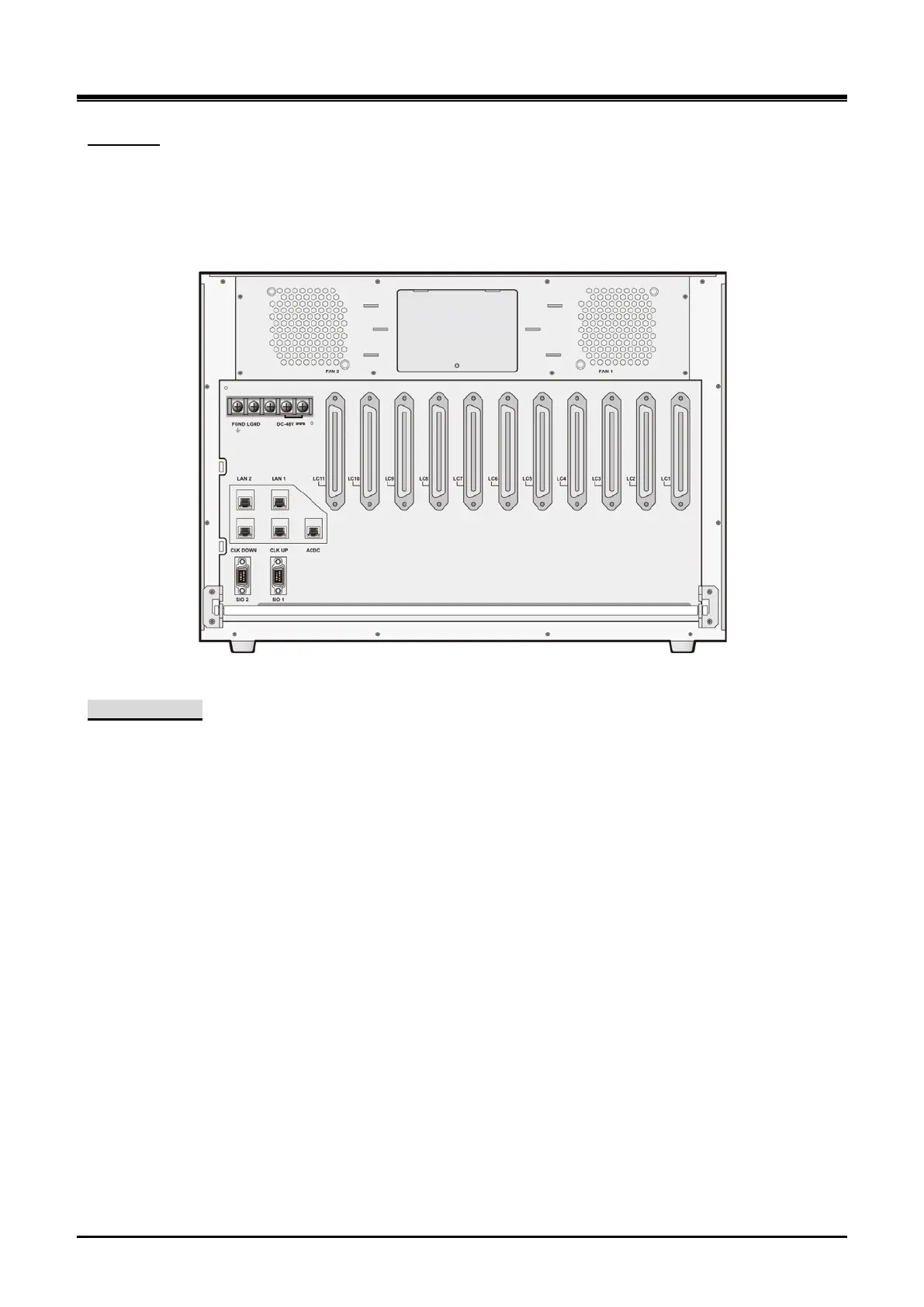

Figure 2-12 UCM-MGC3 Rear view
Capacity
Specifications
 Analog Subscriber Line: 352 ports
 Analog trunk: 176 ports
 Digital trunk: 352 ports
External connectors
 RJ45 connectors for LAN (10/100/1000 Ethernet) : 2 ports
 RJ45 connectors for synchronization: 2 ports
 RS232C connectors for SIO connection : 2 ports
 11 champ connectors
Circuit Protector switch
 Rated Current: 30A
 DC -48V ON/OFF switch
Terminal block
 DC -48V input (It is used DC -48V power source that is input from the rectifier)
 System grounding pin (FGND)
Mechanical specification
 Mechanical dimension (W x L x H): 443 mm x 409.3 mm x 310.3mm
 Weight (included the PSUD): 17.3Kg
