2.2.2.4 UCM-MDTM2
The UCM-MDTM2 (Multifunction Digital Trunk Gateway Module) supports one digital trunk
It provides digital trunk (E1/T1, 2048K/1544K bps ISDN PRI, CCS No.7) and it is available selectively with
switch or Gateway Module initialization information.
For trunk line interface,
E1 Cable line impedance matching jumper should be set to 120Ω .
T1 Cable line impedance matching jumper should be set to 100Ω.
UCM-MDTM2 can match the frequency synchronization over the network system through LANU after
extracting the clock from a particular trunk.
Channel capacity
Specifications
 2,048Kbps E1 Trunk / ISDN PRI European mode: 32 Ch. (30B+1D)
 1,544Kbps T1 Trunk / ISDN PRI American mode: 24 Ch. (23B+1D)
Line characteristics (E1 / T1)
 E1 ( ITU-T G.703 and G.704)
 Transfer rate: 2.048Mbps +/- 50ppm
 Impedance: 120 ohm
 Line code: HDB3
 T1 ( ITU-T G.703 and G.704)
 Transfer rate: 1.544Mbps +/- 50ppm
 Impedance: 100 ohm
 Line code: AMI / B8ZS
Interface specification
 Digital line interface: E1 / T1 / PRI / No.7
 10/100Base-T Ethernet 1 port
 SIO 1 port
Others
 Status LED
 Channel LED
 Reset switch
Electrical specification
 Input power: +5V, DGND, FGND
Mechanical specification
 Gateway Module dimension (W x L): 255 mm x 334.5 mm (Including card edge)
 Gateway Module weight: 540g

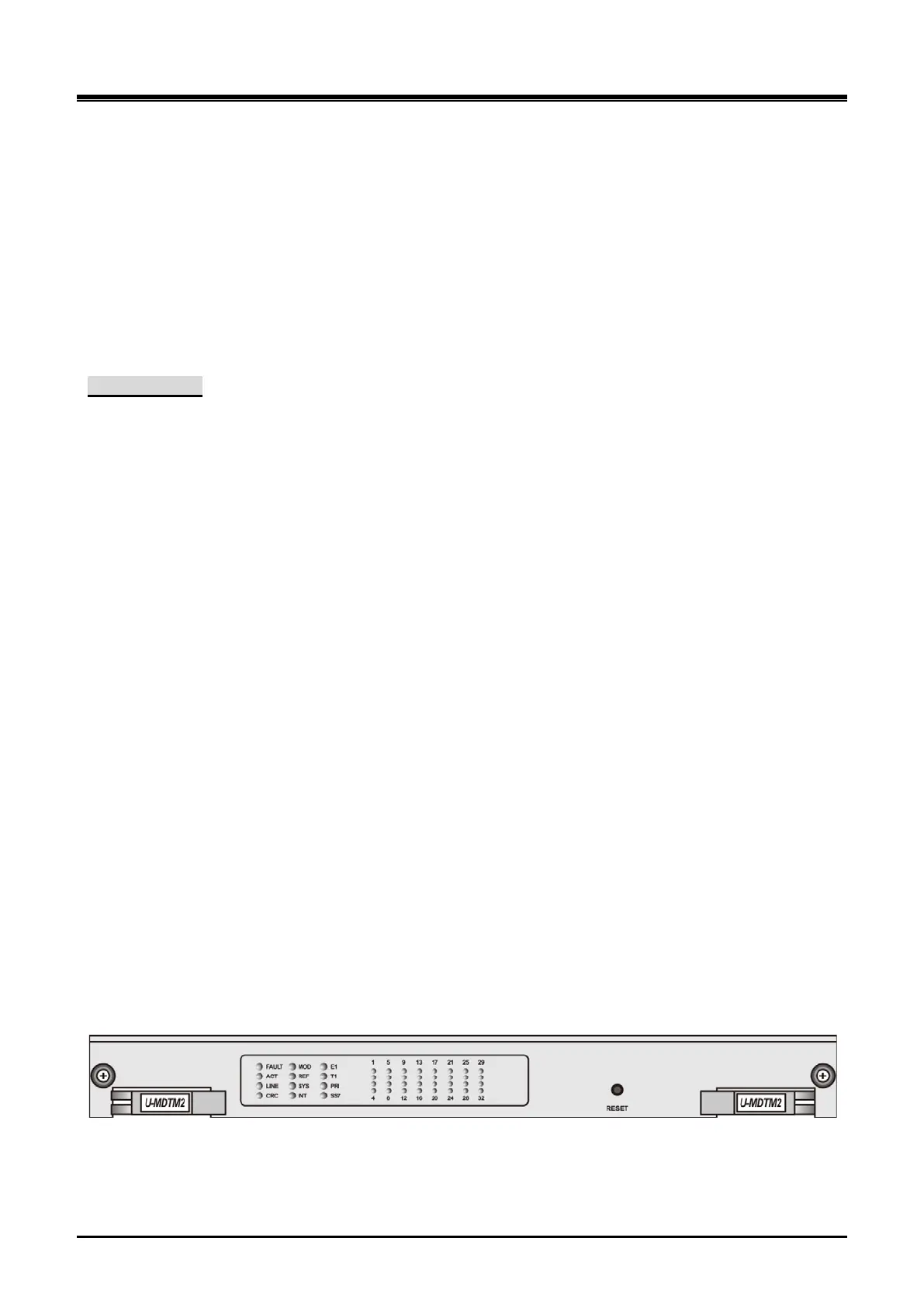

Figure 2-7 UCM-MDTM2
