iPECS UCM
Installation Manual Issue 1.1
8
2.2.2 Media Gateway Modules Description
The iPECS UCM is consist of 6 media gateway Modules, which are mounted in UCM-MGC3 or UCM-1URMC.
UCM-ASLM (Analog Subscriber Line Gateway Module)
UCM-DSLM (Digital Subscriber Line Gateway Module)
UCM-MATM (Multi-function Digital Trunk Gateway Module)
UCM-MDTM2 (Multi-function Digital Trunk Gateway Module)
UCM-MDTMX2 (Multi-function Digital Trunk Gateway Module 2 Links)
UCM-VPCM (Voice Prompt and Conference Gateway Module)
2.2.2.1 UCM-ASLM
The UCM-ASLM (Analog Subscriber Line Gateway Module) provides analog interfaces between SLTs (Single
Line Telephones) and iPECS UCM System. It consists of 32 SLT line interface circuits and a LAN interface
circuit.
It supports -48V DC power feed, ring signal supply, CID (Caller ID) transmission and DTMF dial signal
detection for SLTs. The UCM- ASLM Gateway Module supports message waiting signal generation and 5 REN
(Ringer Equivalence Number).
Maximum SLT installation distance is 8Km (26,000 feet) in case of using AWG24 or UTP5 cable.
Maximum capacity (Voice data length per packet)
Specifications
G.711: 32 Channels
Interface specification
10/100Base-T Ethernet 1port
SIO 1 port
Others
Status LED
Channel LED
Reset switch
Electrical specification
Supply Power Input: -48V, +5V, DGND, FGND
Mechanical specification
Gateway Module dimension (W x L): 255 mm x 334.5 mm (Including card edge)

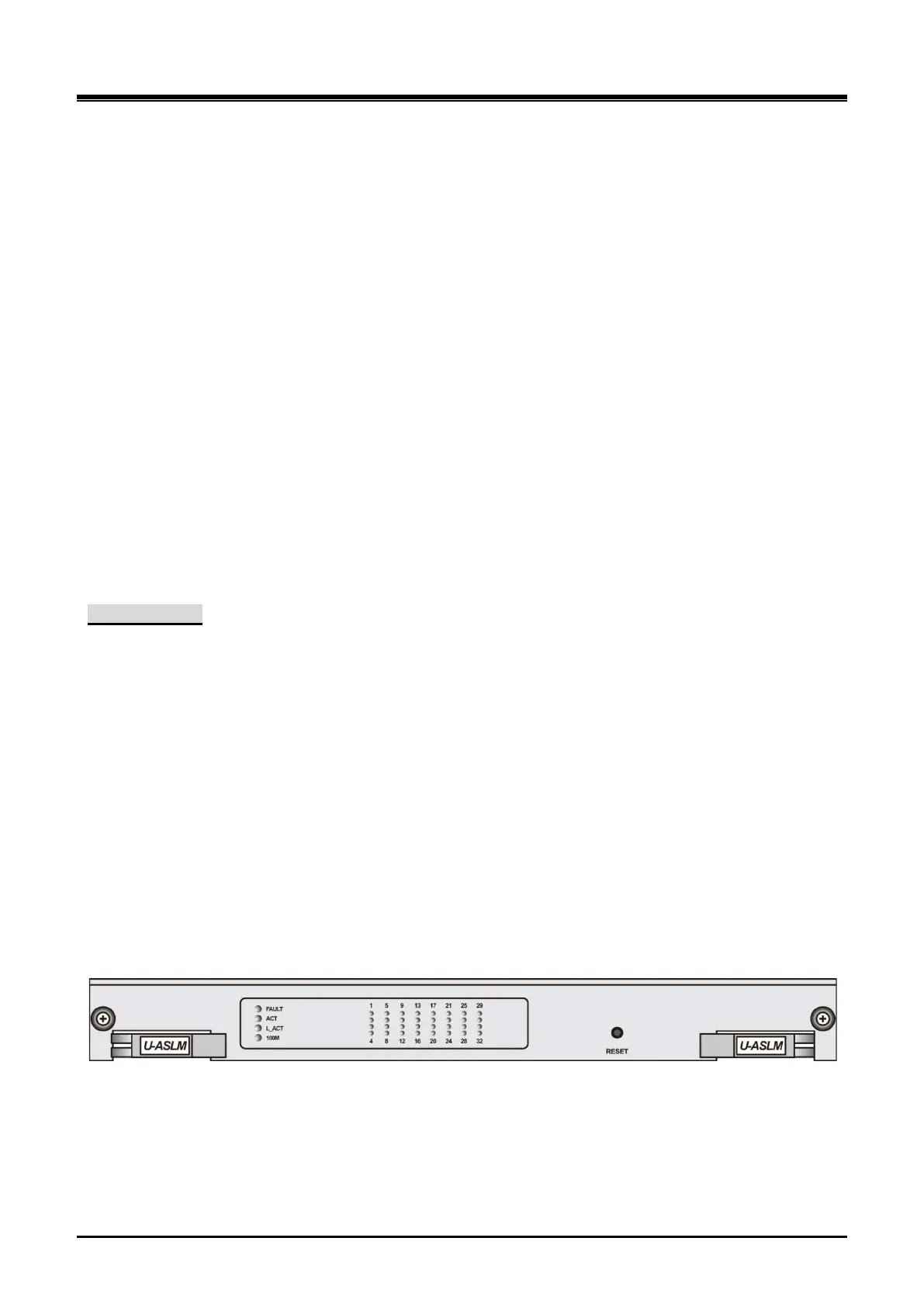

Figure 2-4 UCM-ASLM
