iPECS UCM - Page 41

iPECS UCM
Installation Manual Issue 1.1
34
 Number of UCM-MGC3 in one Synchronization group: Max 6
Synchronization groups
 Cable length: Max 5m
 LGND terminals of all UCM-MGC3 belonging to a Synchronization group should be together
connected to one protective earth ground bar.

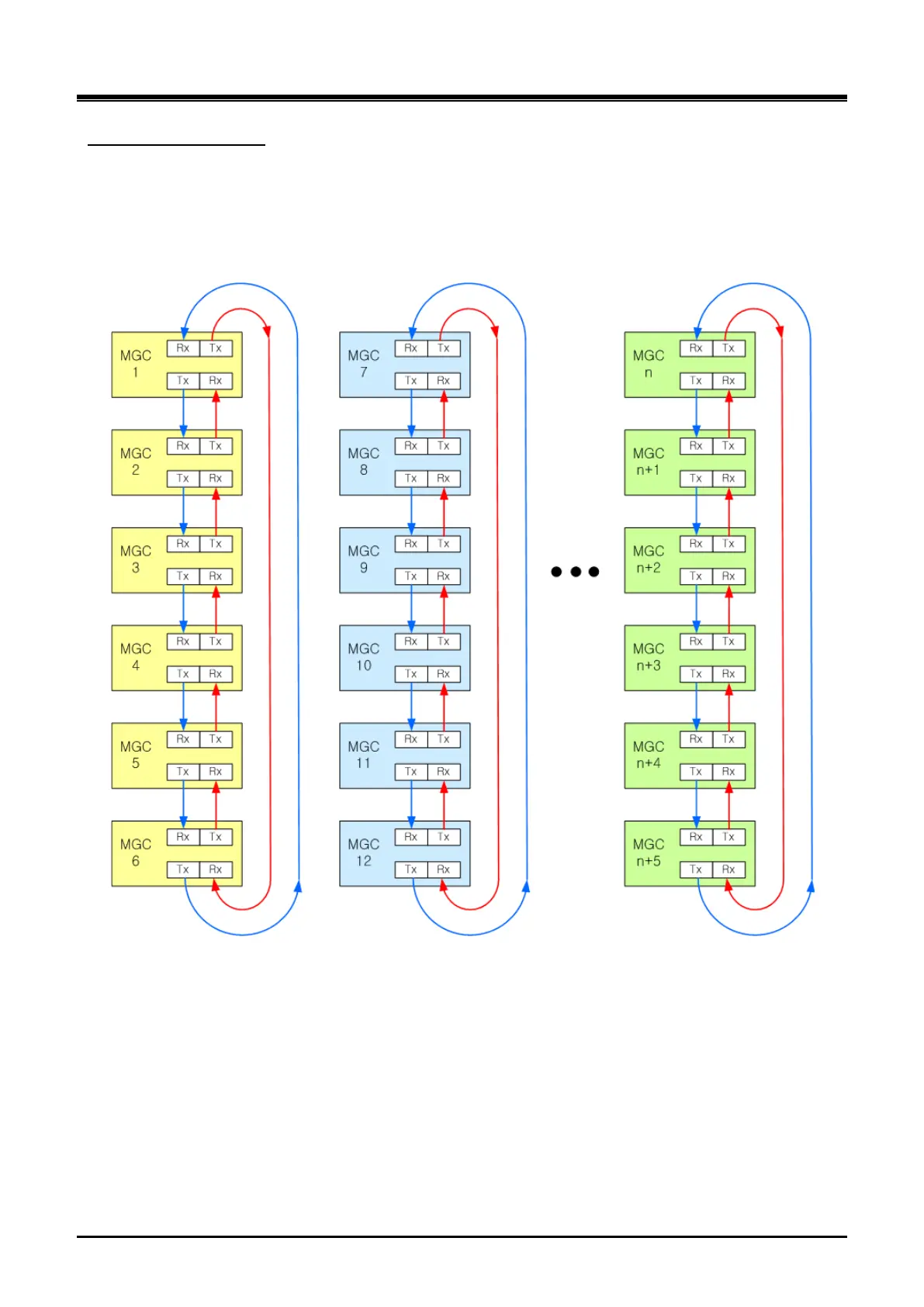

Synchronization group 1 Synchronization group 2 Synchronization group N
Figure 3-9 Block diagram of Synchronization group
