iPECS UCM
Installation Manual Issue 1.1
36
If more than one cabinet are installed in a 19” rack, Ground bar must be installed in the 19” rack and the
FGND terminal of each cabinet must be connected to the ground bar which is connected to protective earth
ground with thicker wire than 8 AWG cable.

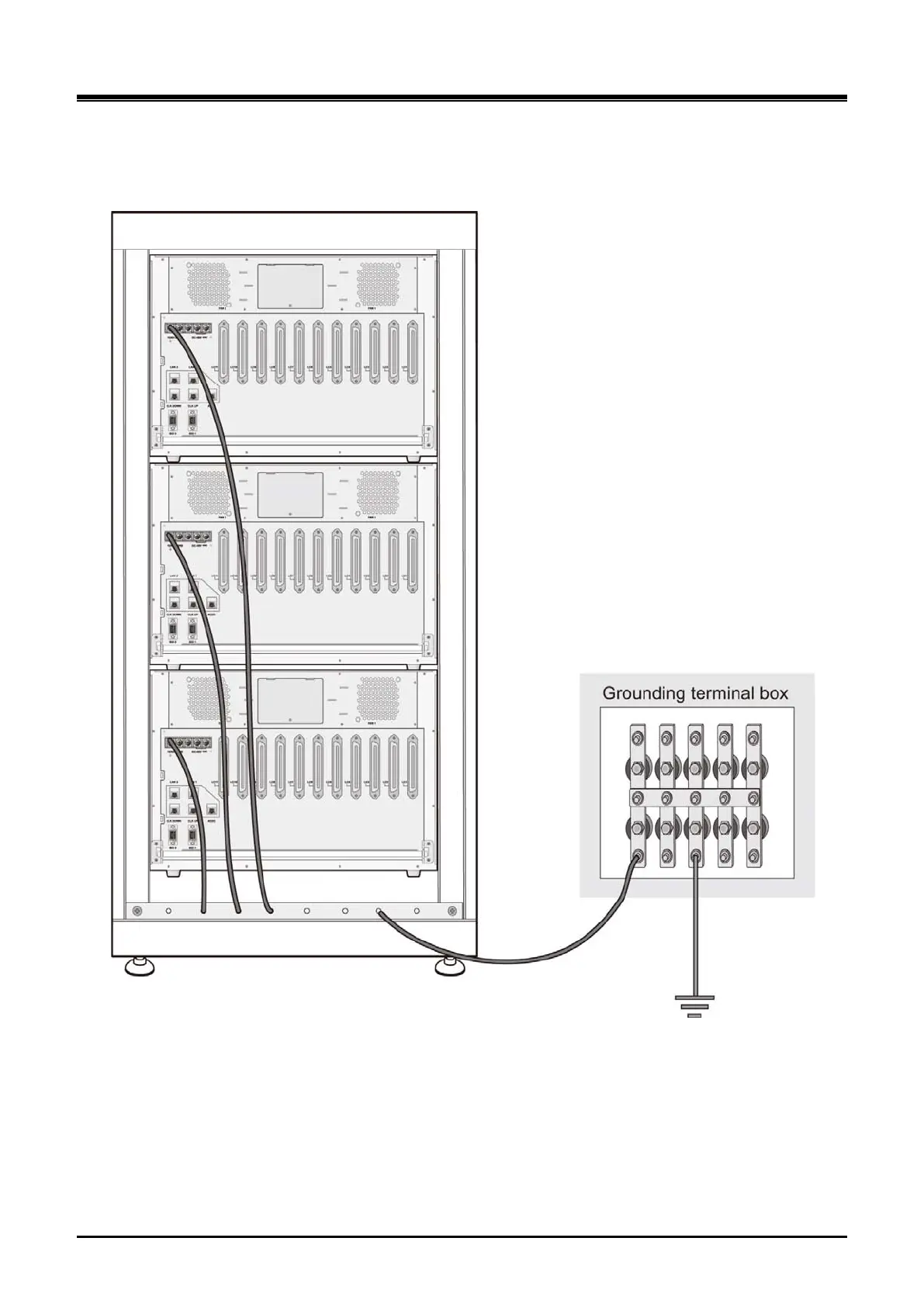

Figure 3-11 Correct Grounding Method
