iPECS UCM
Installation Manual Issue 1.1
49

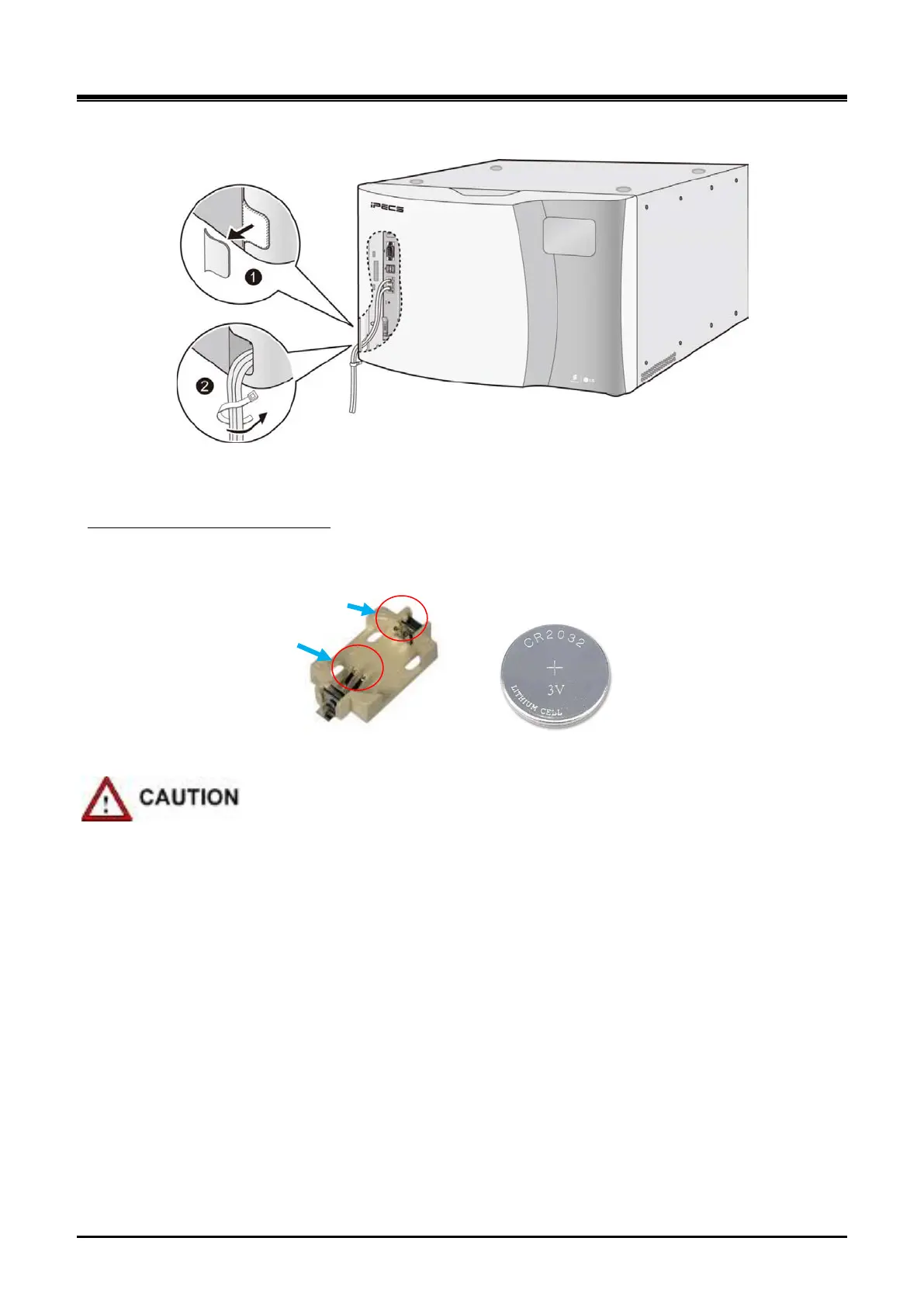

Figure 3-25 UCM-S2K LAN Cable Connection
Coin type lithium battery inserted in the holder is used to maintain the BIOS information of the CPU Gateway
Module.
Coin or Cell Type Lithium battery
Battery holder Coin type lithium battery
Pay attention to the polarity when replacing the battery. The system will not properly work if the battery
replaced incorrectly.
Make sure to replace the battery with the recommended type (CR2032, 3V).
The features (CR2032) are as below
- . Very safe (poly-carbon-mono-fluoride lithium)
- . Extremely strong load pulse characteristics (manganese dioxide lithium)
- . Operating temperature range: -30ºC ~ +60ºC
Treat the used battery in accordance with manufacturer’s instructions.
Be careful about short circuit when inserting it into the holder.
Let the ╈ polarity face upward and insert the battery while pressing the Θ pin of the holder until the ╈
pin presses the upper side of the battery.
