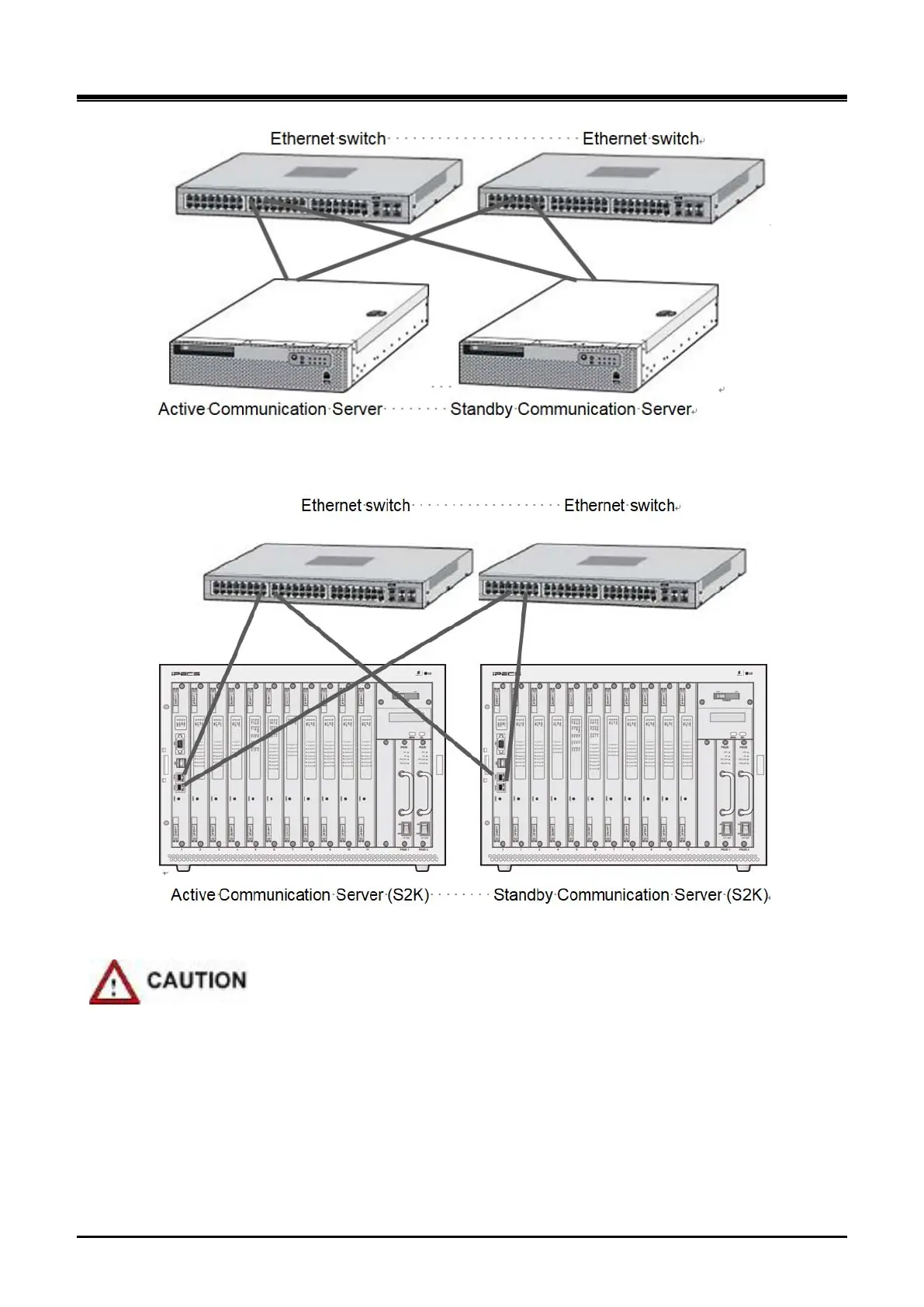

Figure 3-28 Redundancy Connection for UCM-S30K and Ethernet Switch
Figure 3-29 Redundancy Connection for UCM-S2K and Ethernet Switch
Pay attention to using the 1000 base-T (Giga LAN). The UTP-5E or UTP-6 must be used
