Mounting
The UMG 96RM-E is fixed using the mounting clips
found on the side of the switch panel. Before inserting
the device, they should be moved out of the way
in a horizontal lever using a screwdriver, for example.

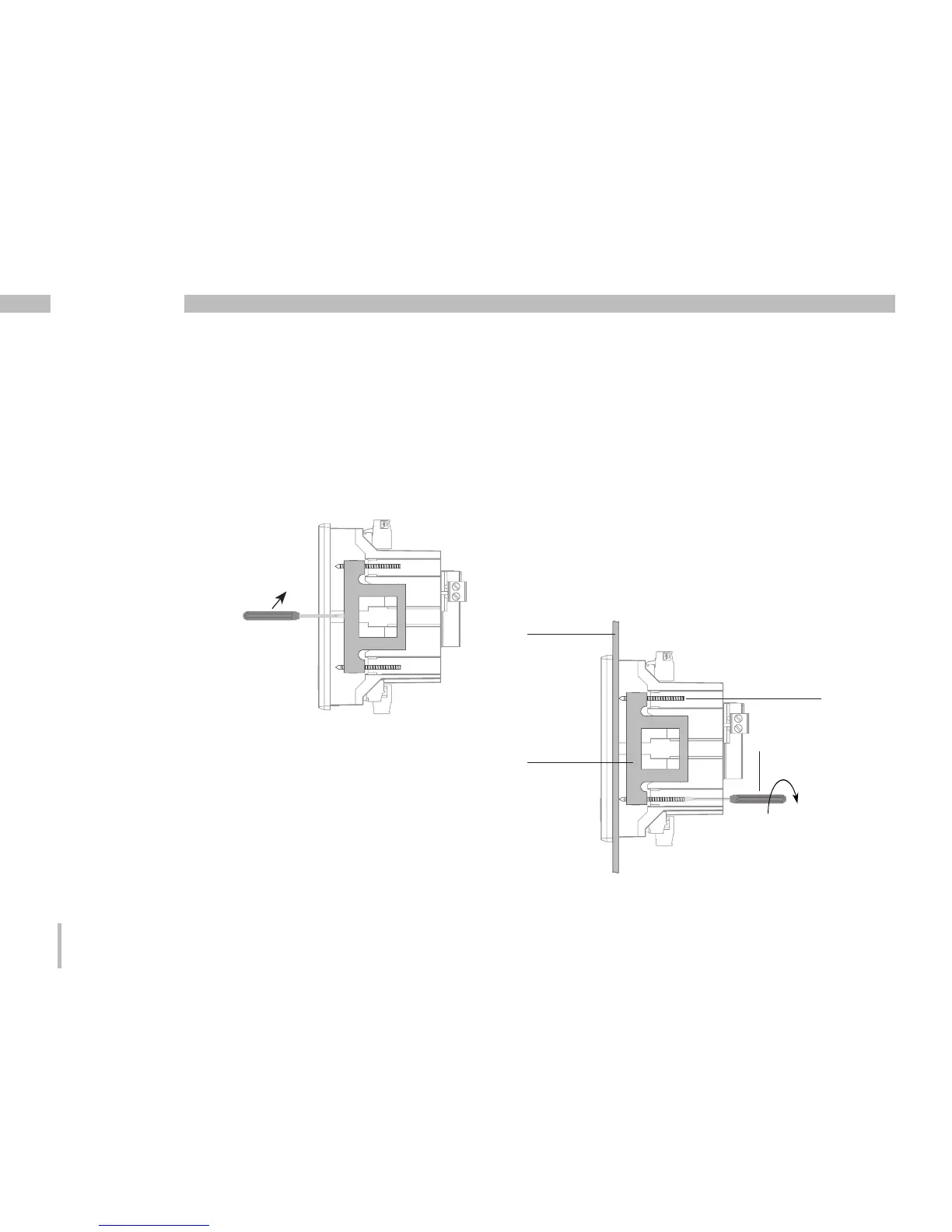

Fig. side view
UMG 96RM-E with
mounting clips.
Loosening the clips
is done using
a screwdriver
and a horizontal lever
effect.
Mounting plate
Fixing screw
Screwdriver
Mounting
clips
Contacting of the
fixing screws to the
mounting plate:
Tighten with maximum
two further turns for
the installation
The fastening is then done when the device is pushed
in an the clamps lock in place when the screws are
tightened.
• Please tight the fixing screws until they contact the
mounting plate easily.
• Tighten with two further turns, the clamping screws
(are the screws tightened too much, the mounting
bracket will be destroyed)
