Parameters and measured values
All necessary parameters for the use of UMG 96RM-E,
such as current transformer data and frequently required
measured values are provided in the table.
Use the UMG 96RM-E buttons to retrieve the contents
of most of the addresses via serial interface.
You can only enter the first 3 significant digits of a value
on the device. Values with more digits can be entered
using GridVis.
The first 3 significant digits of a value are displayed
on the device.
Selected measured values are summarized in measured
value profiles and can be indicated in display mode
by pressing button 1 and 2.
The current measured value profile, the display change
profile, plus date and time can be read and changed via
the RS485 interface only.

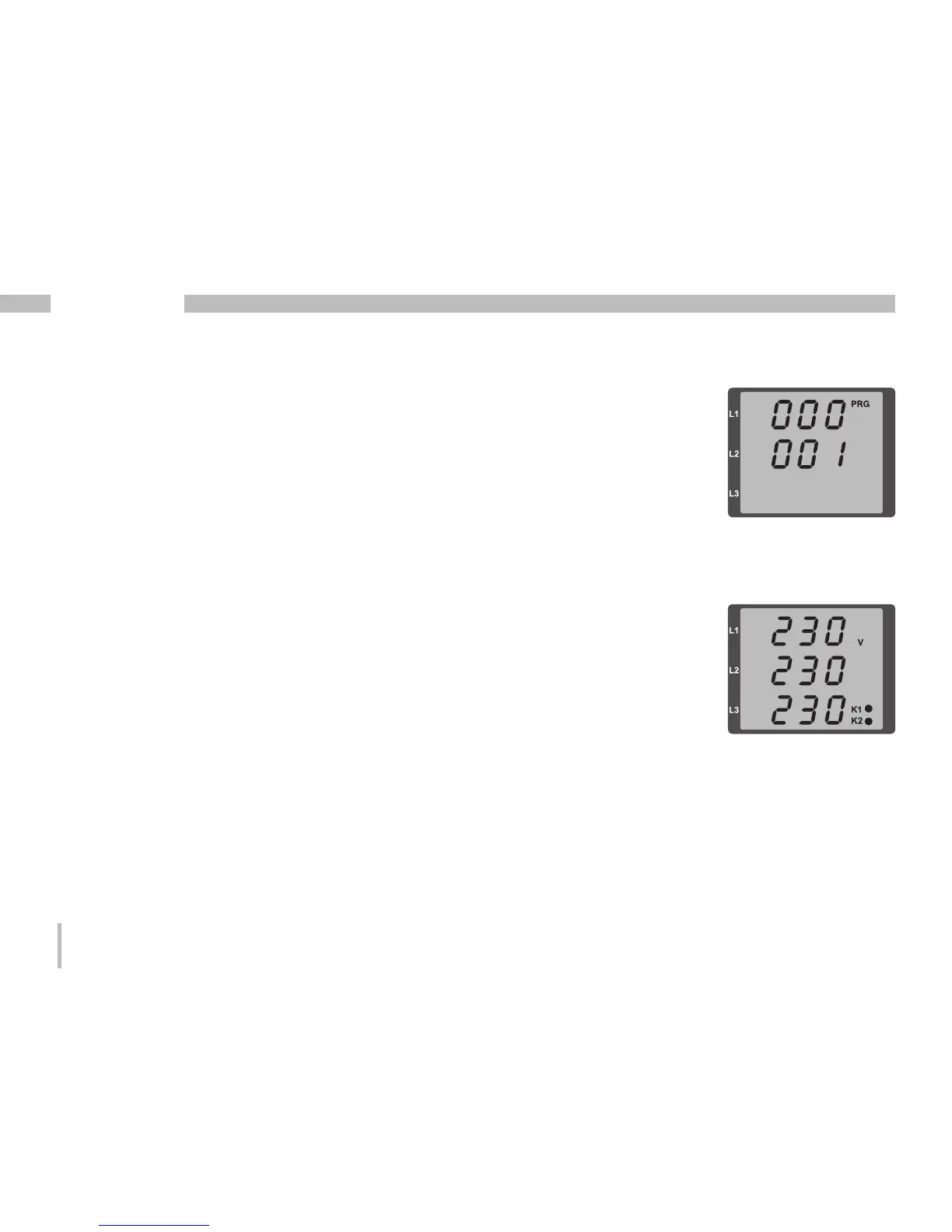

Parameter indication example
In this example, the contents
of address "000" is indicated
by the value "001" on
display of the UMG 96RM-E.
This parameter specifies
the device address (in this
case "001") according to
the list of the UMG 96 RM-E
within a bus.
Measured value indication
example
In this example, the
voltage L-N is indicated
by 230V on the display of
the UMG 96RM-E. The
transistor outputs K1 and K2
are active, which ensures the
current flow.
