UMG 96RM-E
Digital in-/outputs
The UMG 96RM-E has 2 digital outputs and 3 optional
digital inputs or outputs, which are divided into two
groups (see figure). This means that only entire group 2
(connection 28 to 31) operate either as input or output;
a different allocation within the group is not possible!
Digital outputs, Group 1
• The status indicator appears on the display at K1 or
K2
• The status indicator on the display is not dependent
on an inversion being activated (NC / NO)
Digital outputs, Group 2
• The status of the inputs and outputs in Group 2 is
indicated by the associated LED (cf. chapter LED
status bar).

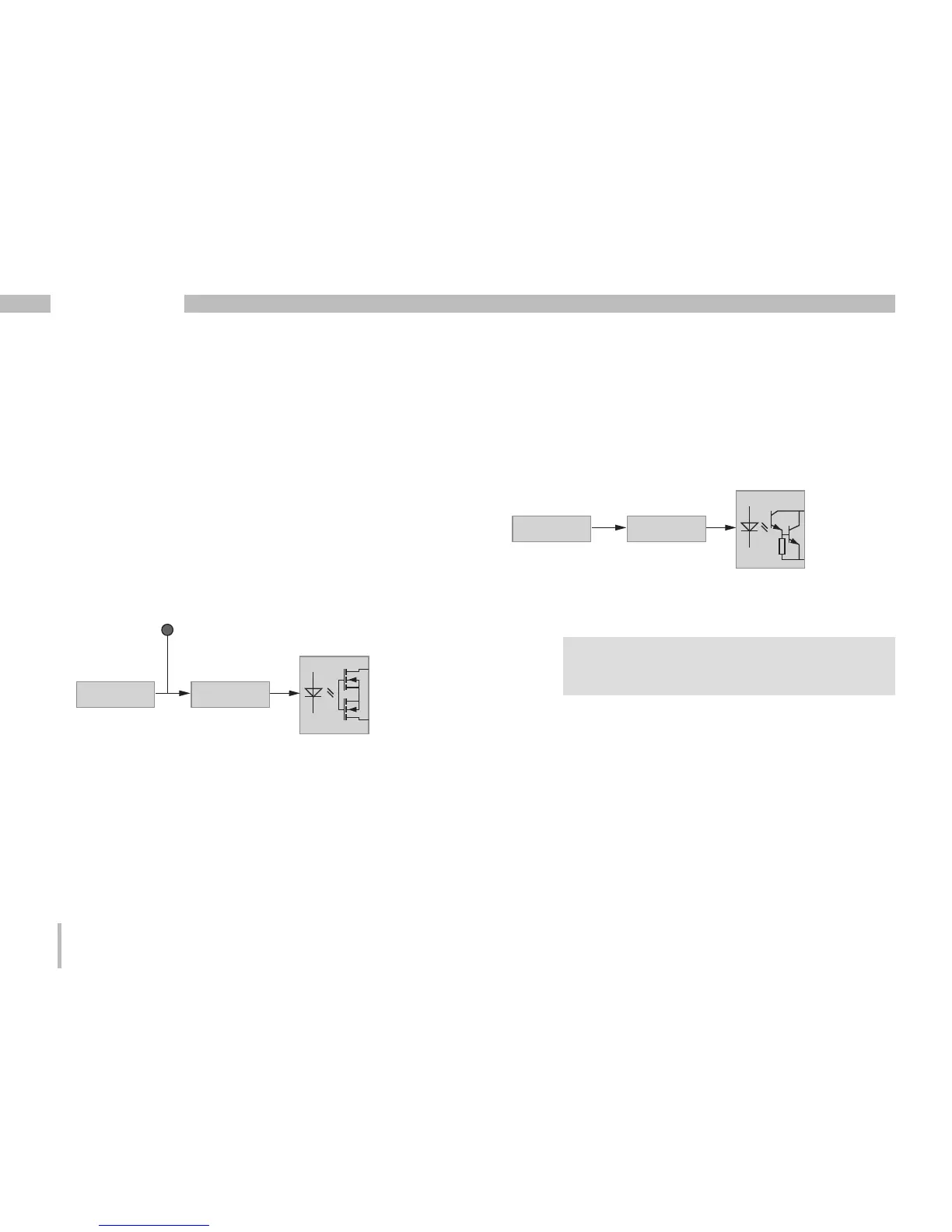

Digital
output 3
e.g.
Comparator group
InverterSource
Digital
output 1
e.g.
Comparator group
K1/K2 display
status indicator
InverterSource
C
The digital outputs of group 2 are not AC
compatible.
