Digital outputs
These outputs are galvanically separated from
the analysis electronics using optocouplers. The digital
outputs have a joint reference.
• The digital outputs of group 1 can switch DC and AC
loads. The digital outputs of group 2 can not switch
AC loads.
• The digital outputs are not short-circuit proof.
• Connected cables that are longer than 30m must
be shielded when laid.
• An external auxiliary voltage is required.
• The digital outputs can be used as impulse outputs.
• The digital outputs can be controlled via Modbus.
• The digital outputs can display the results
of comparators.
~
~
Group 2
Group 1

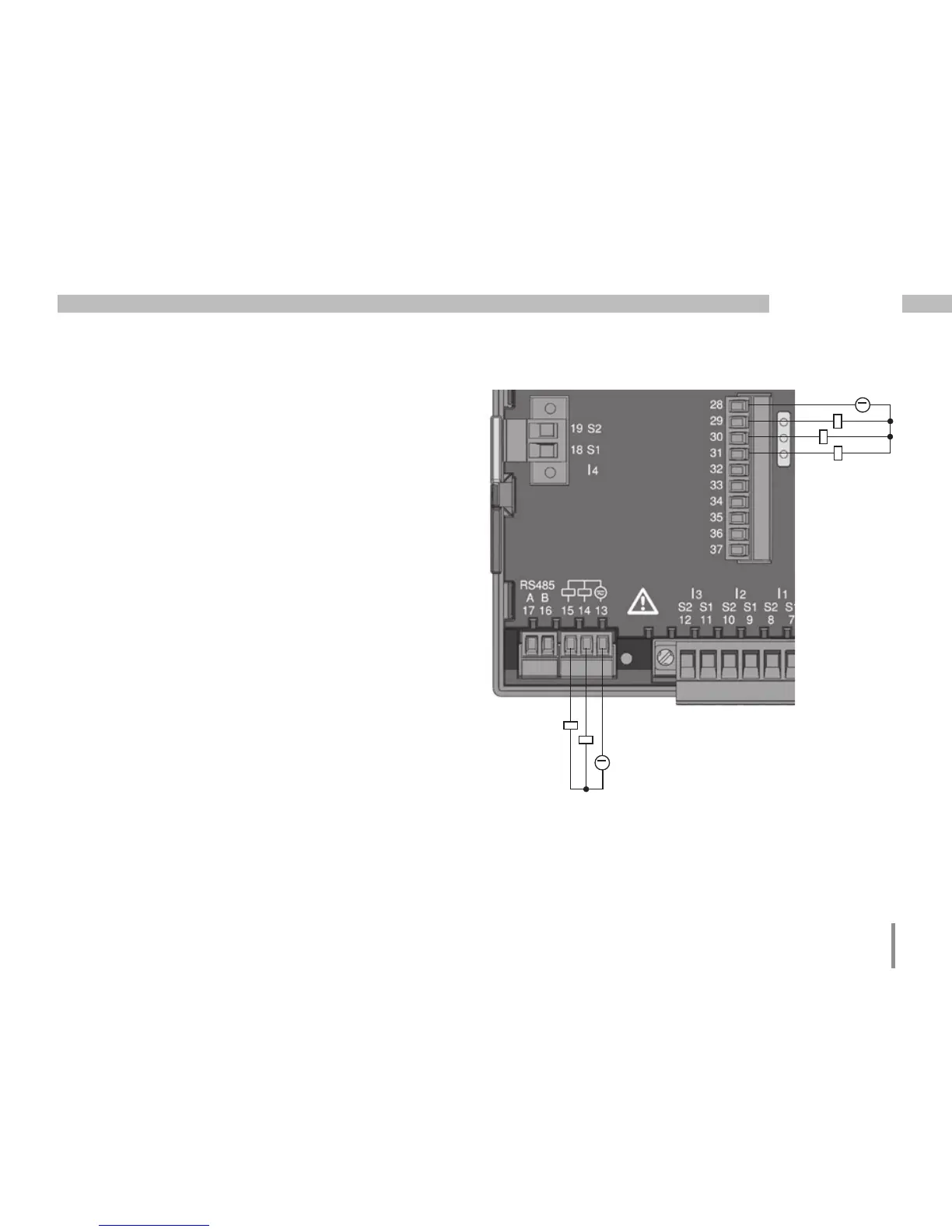

Fig. Connection
digital / pulse outputs
