Mounting
Position of installation
The UMG 96RM-E is suitable for integration into fixed
and weatherproof switch panels. Conductive switch
panels must be earthed.
Mounting position
To ensure adequate ventilation, the UMG 96RM-E
must be installed vertically. There should be separation
above and below of at least 50mm with 20mm space
to the sides.
Front panel section
Cut-out size:
92
+0.8
x 92
+0.8
mm.
m
Failure to meet the minimum clearances
can destroy the UMG 96RM-E at high
ambient temperatures!

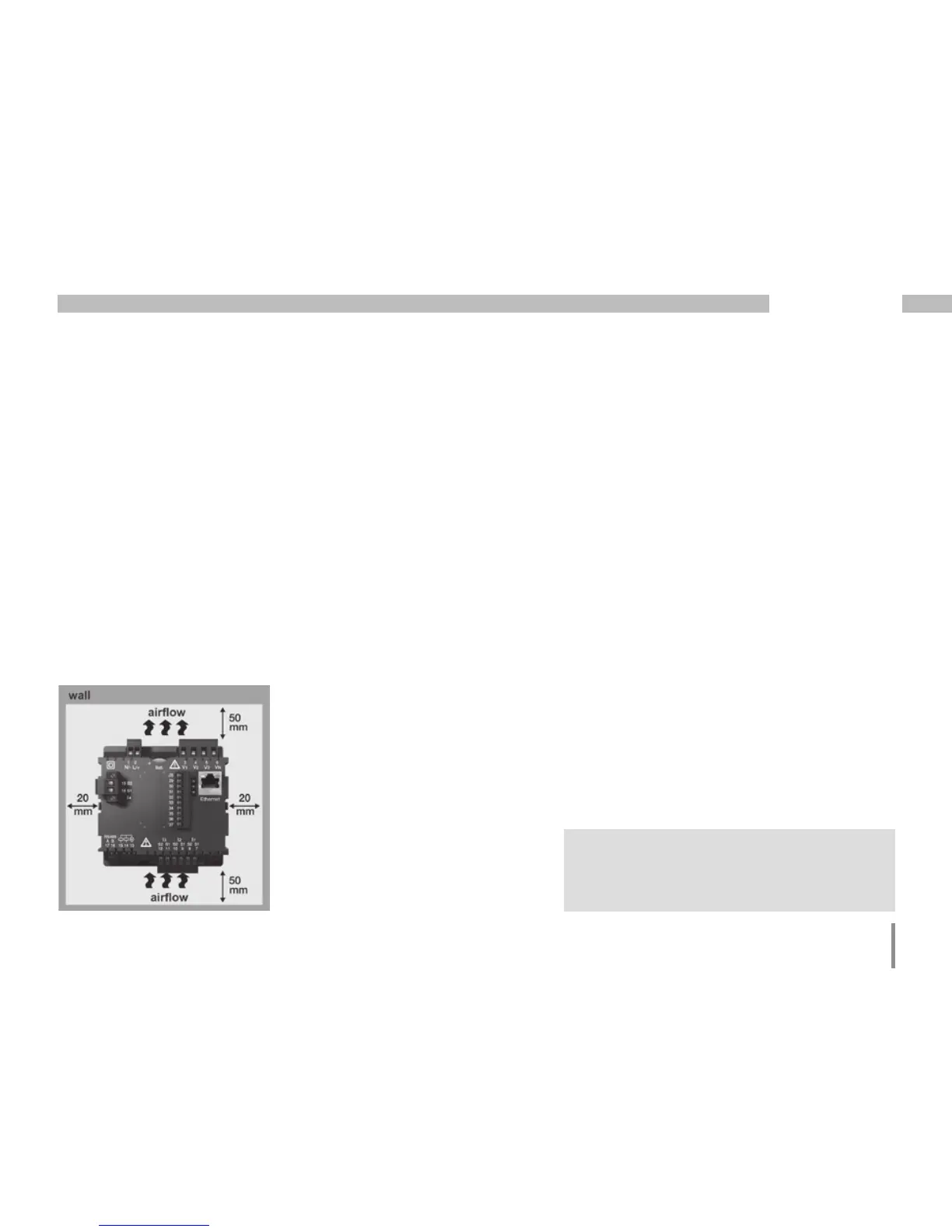

Fig. mounting position
UMG 96RM-E
(View from rear)
