UMG 96RM-E
Temperature measurement input
The UMG 96RM-E has two temperature measuring
inputs. The temperature is measured via terminals 32/34
(input 1) and 35/37 (input 2).
Do not exceed the total resistance load (sensor + cable)
of 4kOhm.

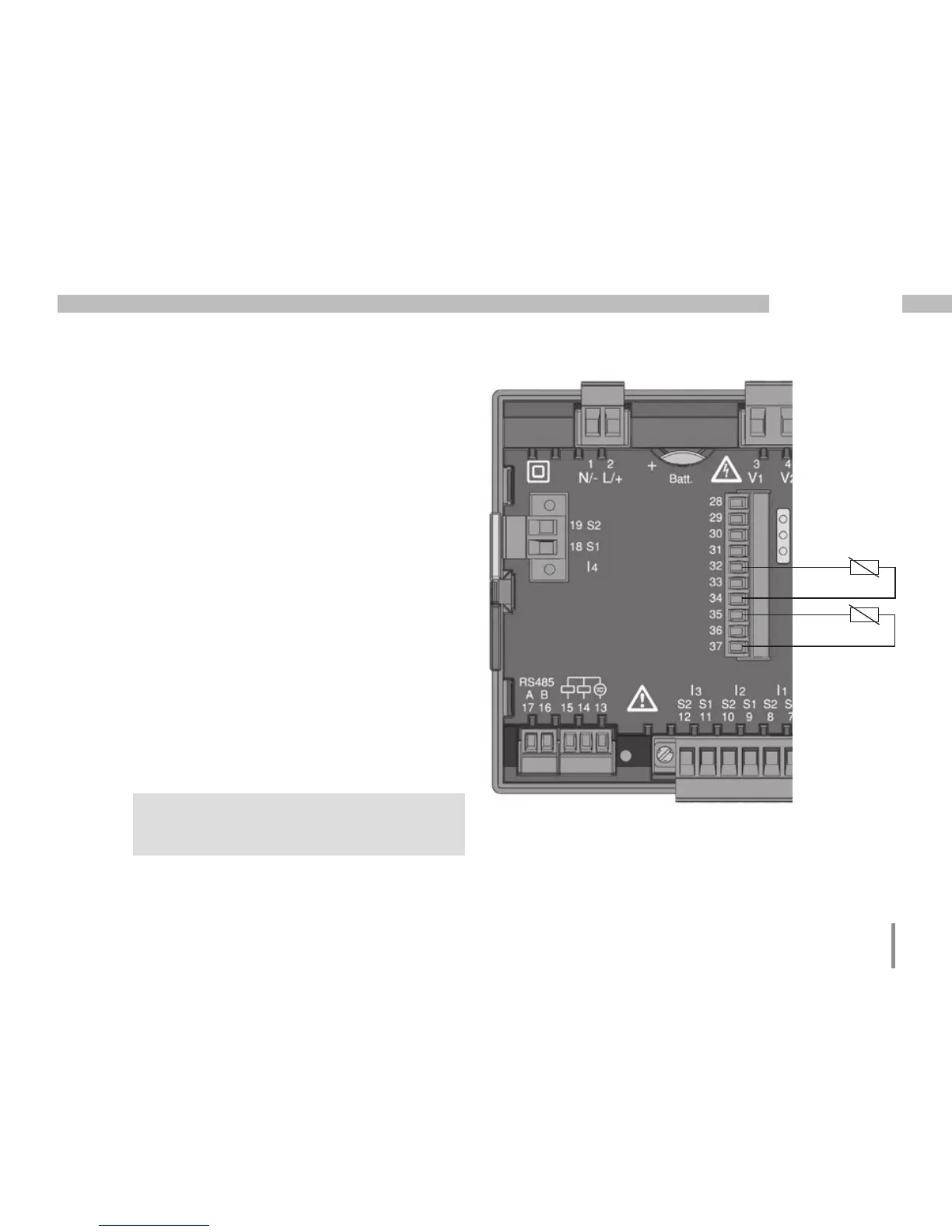

Fig. Example, temperature measurement
with a Pt100
PT100
PT100
m
Use a shielded cable to connect the
temperature sensor.
