TCP/IP addressing quick guide
Manual TCP/IP settings
Switch to the programming mode:
• Press button 1 and 2 simultaneously for around
1 second to switch to the programming mode.
The symbols for the programming mode PRG
and the current transformer mode CT appear
on the display.
Adjust the TCP/IP address (Adr.)
• Press button 2 to select "Adr"
• Press button 1 to enable the first digit (byte 0)
of the address (digit is flashing). Press button 2 to set
the digit.
• Press button 1 to select the next digit (flashing) and set
the desired digit by pressing button 2.
• If byte is set to 0, the address can be set from 1 to 3
by pressing button 1. Then the display jumps back
to Byte 0 (no digit is flashing).
Subnet mask (SUb)
• Press button 2 to select the subnet mask and set
it in a manner similar to adjusting the address
by pressing button 1 and 2.
Adjusting the gateway address (GAt)
• Use button 2 and 1 to set the gateway in a manner
similar to adjusting the address.
Exit programming mode
• Press button 1 and 2 simultaneously to exit the mode
or wait 60 seconds.

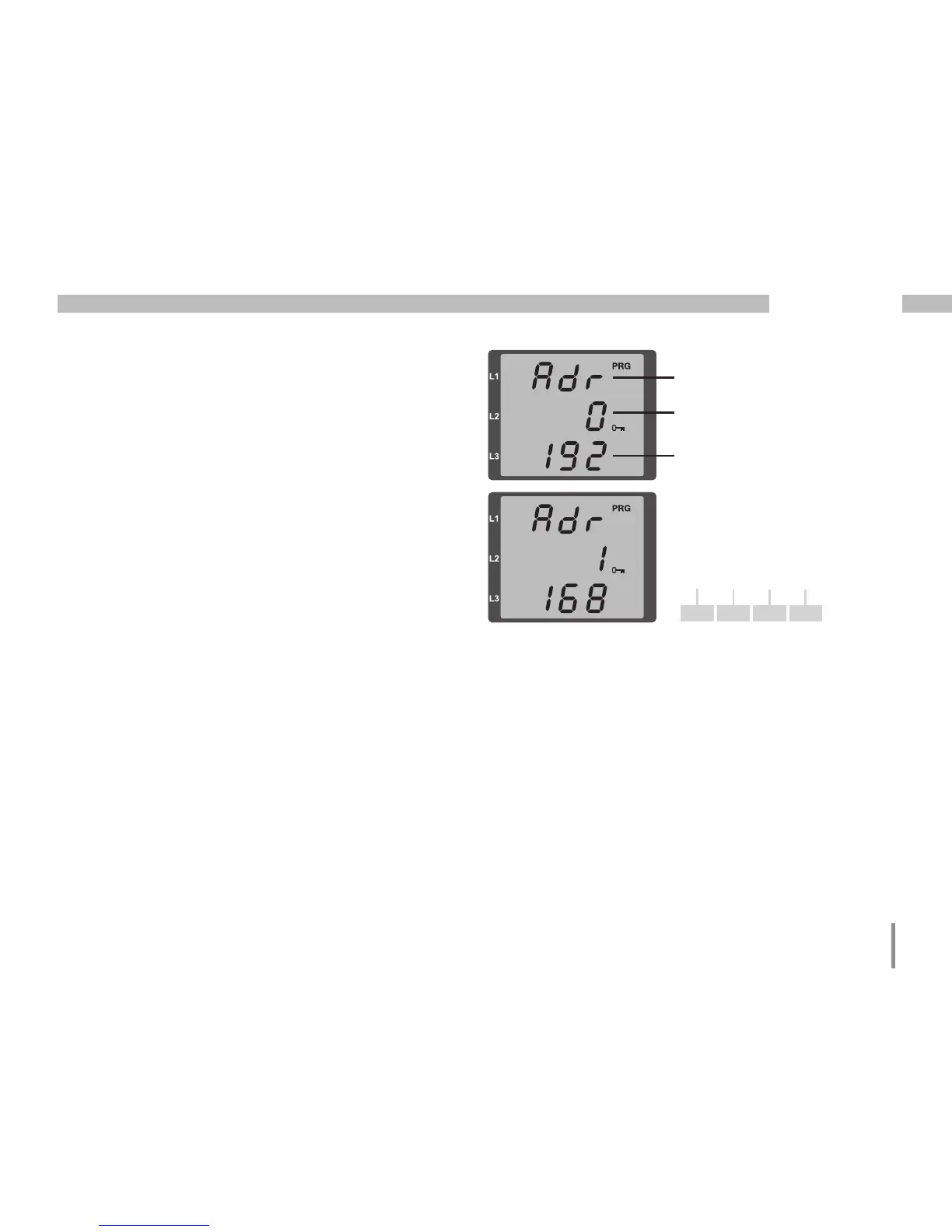

Description
Byte identification
(e.g. byte 0) of the address
Address data, byte 0
Fig. TCP/IP address, byte 1
A TCP / IP address consists of 4
bytes with the following structure:
xxx.xxx.xxx.xxx
Byte 1Byte 0 Byte 2 Byte 3
Enable dynamic IP allocation (dyn)
Device/gateway address and subnet mask are assigned
by a DHCP server and enable automatic integration
of the device into the existing mains.
• When in programming mode, press button 2
repeatedly to display the tab labelled "dYn IP".
• Press button 1 to enable the parameter "on"
or "oFF" (parameter is flashing). Press button 2 to set
the desired status and press button 1 to confirm
the selection.
• Exit programming mode.
