34
UMG 96RM-E
C
It is not necessary to configure
a connection schematic for residual
current inputs I5 and I6.

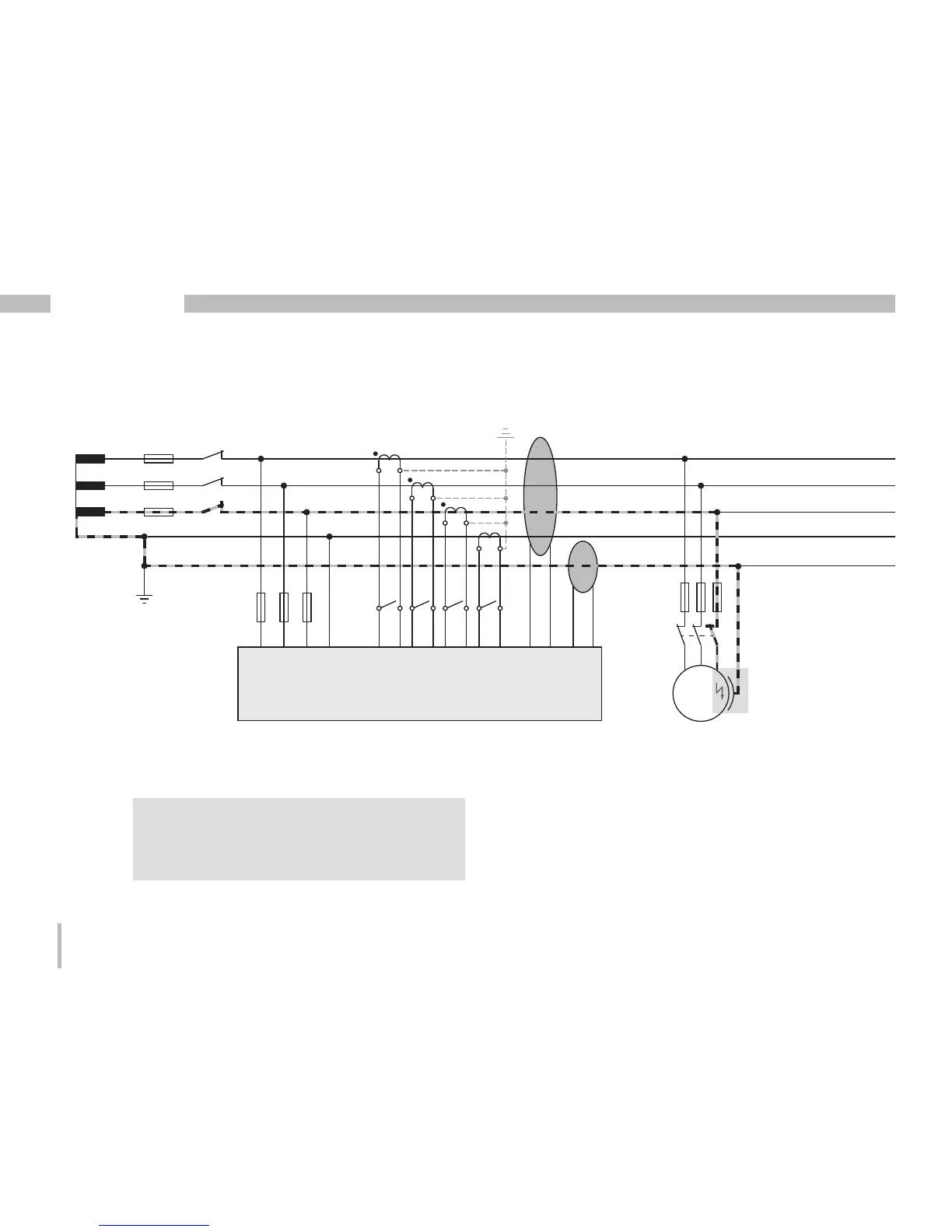

Fig. Example
UMG96RM-E with
residual current
monitoring via
measuring inputs i5/I6.
L1 L2 L3 N I1 I2 I3
L1
L2
L3
PEN
N
PE
UMG 96RM-E (RCM)
M
3~
I5
I6
I4
Residual
current
transformer
Residual current
transformer
Connection example, residual current monitoring
