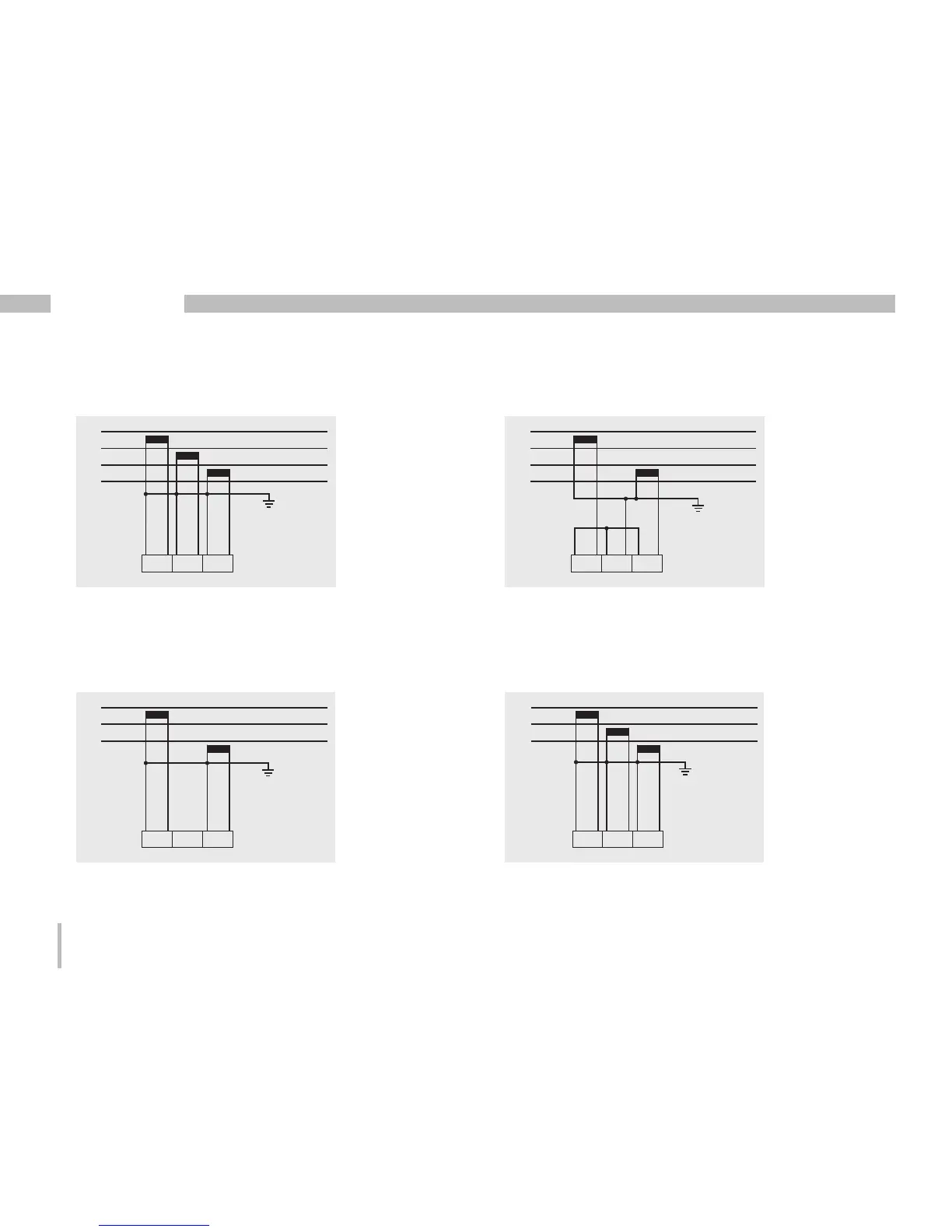

Wiring diagrams, current measurement (I1-I3)
L1
L2
L3
N
I1 I2 I3
• 3p 4w (Addr. 510= 0), factory setting • 3p 2i (Addr. 510 = 1)
L1
L2
L3
N
I1 I2 I3
L1
L2
L3
I1 I2 I3
• 3p 2i0 (Addr. 510 = 2)
L1
L2
L3
I1 I2 I3
• 3p 3w3 (Addr. 510 = 3)
Fig. Measurement in a three-phase network with
non-uniform load.
Fig. The measured values for the current
measurementinput I2 are calculated.
Fig. System with uniform phase loading. The
measured values for the current measurement
input I2 are measured.
Fig. Measurement in a three-phase network with
non-uniform load.
