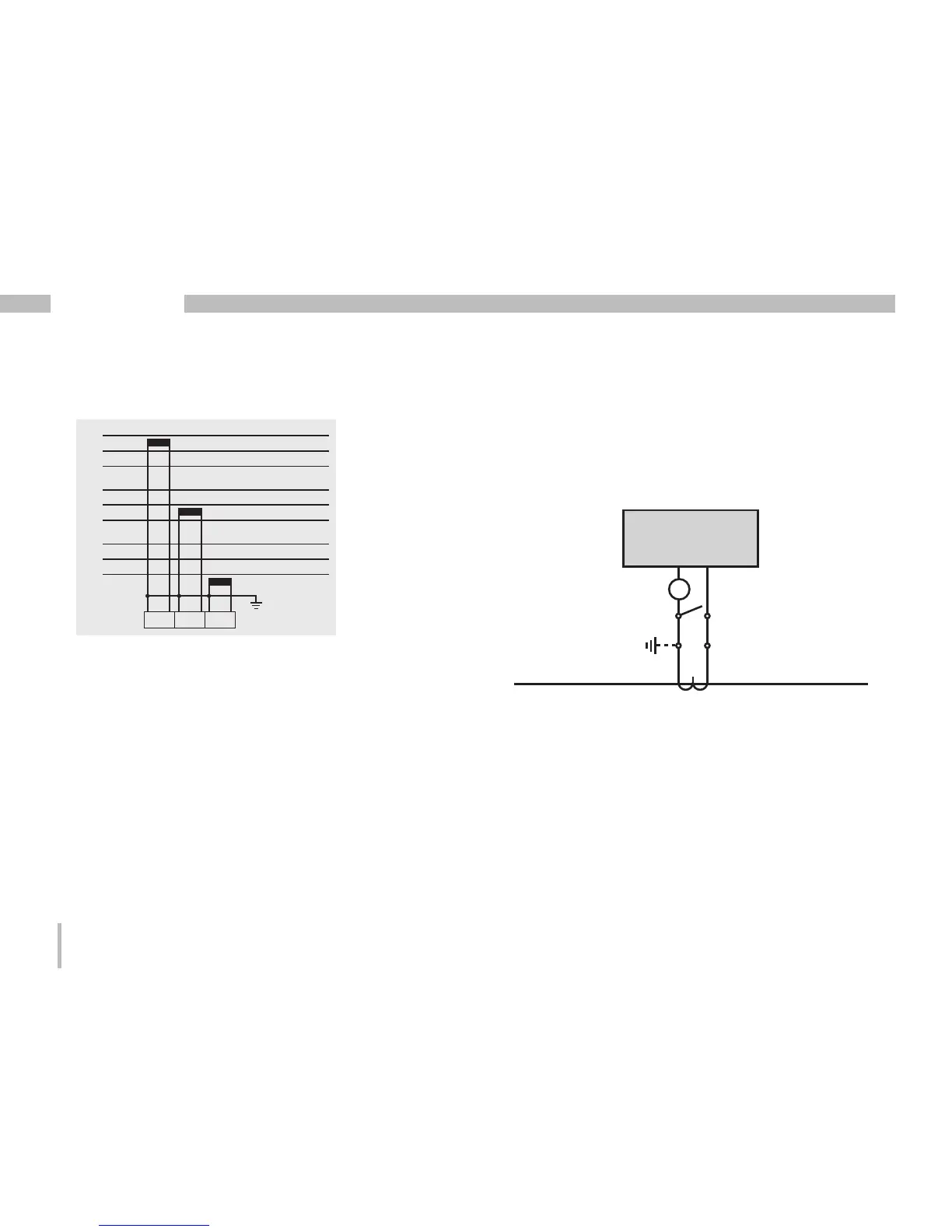

Wiring diagrams, current measurement (I1-I3)
L1
L2
L3
I1 I2 I3
L1
L2
L3
L1
L2
L3
• 3p 1w (Addr. 510 = 8)
Fig. 3 systems with uniform phase loading.
The not connected measured values I2/I3,
I1/I3 and I1/I2 of the respective systems are
calculated.
Ammeter
If you wish to measure the current not just using
the UMG 96RM, rather also with a ammeter, the ammeter
must be connected to the UMG 96RM-E in series.
Fig. Current measurement with an additional
ammeter (example).
UMG
S2
I
S
1
Einspeisung
Supply
Verbraucher
Consumer
A
(k)S
1 S2(l)
P
2(L)(K)P1
