Digital outputs - Status displays

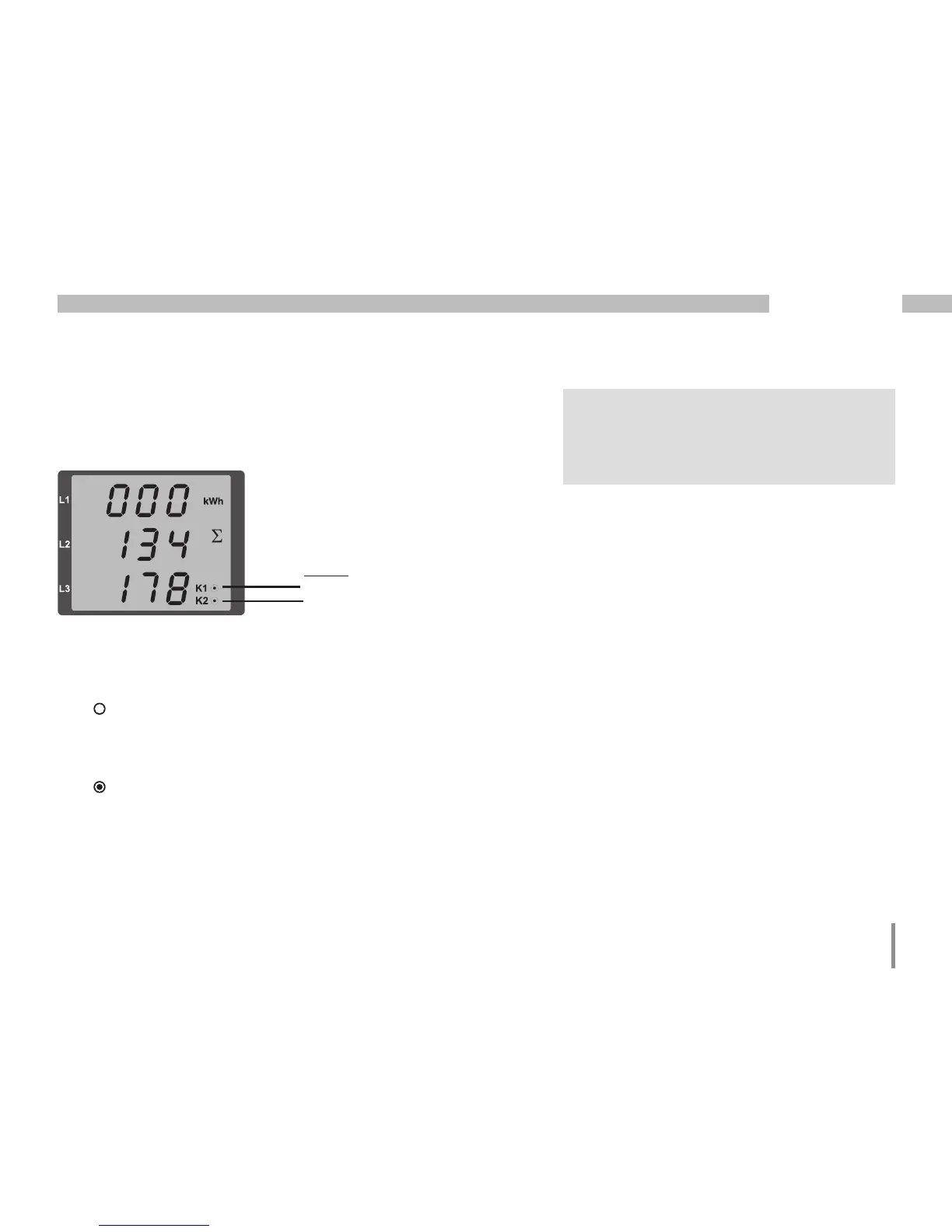

The status of the switching outputs of group 1 is
indicated by circular symbols in the display of the
UMG 96RM-E.
Digital output stati
The current flow can be <1mA.
Digital output 1: Addr. 608 = 0
Digital output 2: Addr. 609 = 0
The current flow can up to 50mA.
Digital output 1: Addr. 608 = 1
Digital output 2: Addr. 609 = 1
Since the indication is updated once
per second, faster status changes
of the outputs can not be displayed.
C
Status digital output 1
Status digital output 2
Group 1
