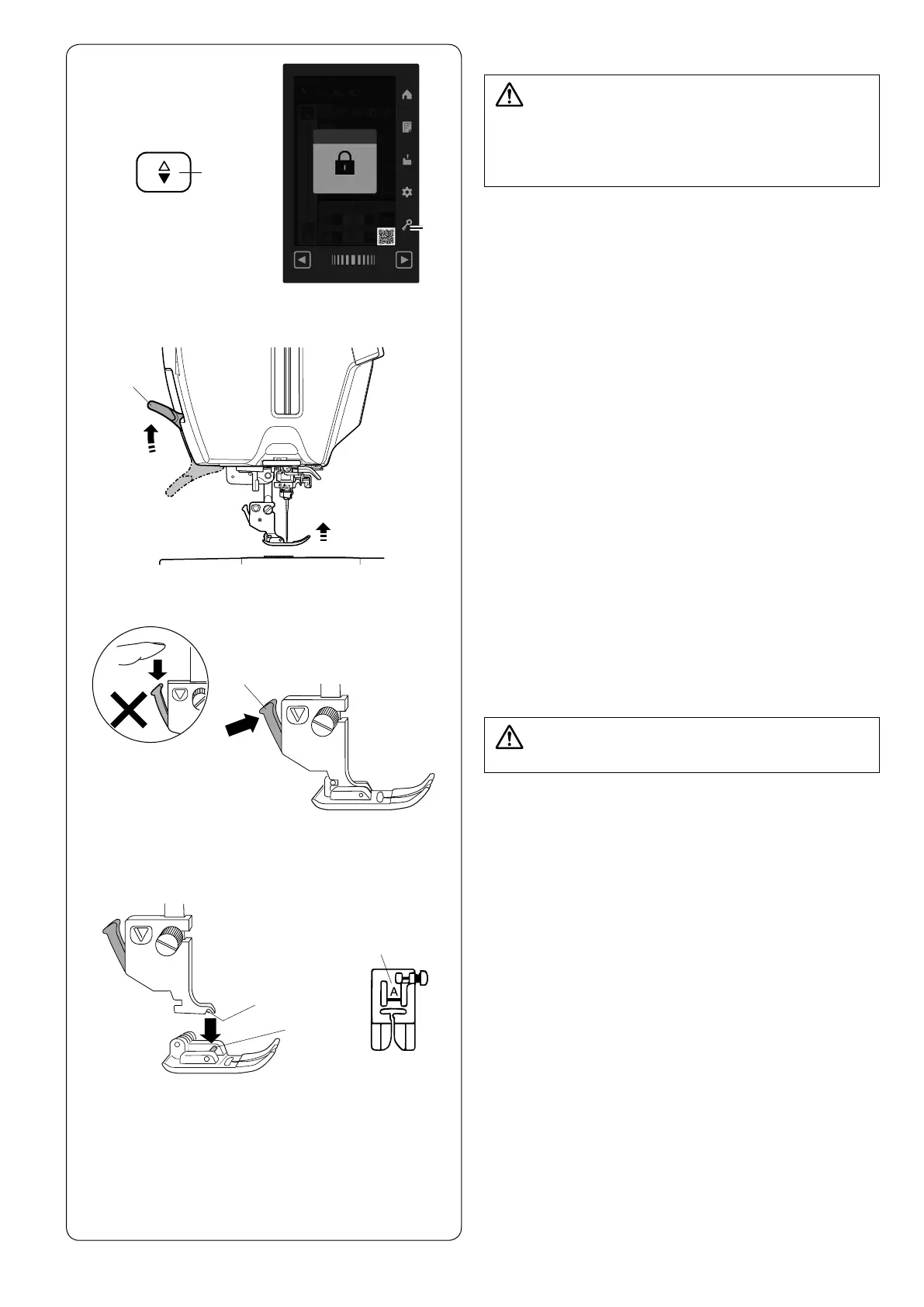

Replacing the Presser Foot
(4)
(7)
1.
Raise the needle by pressing the needle up/down
button.
Press the lockout key.
(1) Needle up/down button
(2) Lockout key
2.
Raise the presser foot lifter.
(3) Presser foot lifter
(6)
(5)
(3)
3.
Press the black lever on the back of the foot holder.
The presser foot will drop off.
(4) Lever
4.
Place the presser foot so that the pin on the foot lies
just under the groove of the foot holder.
Lower the presser bar to lock the foot in place.
(5) Pin
(6) Groove
Each foot is marked with an identication letter.
(7) Identication letter
CAUTION:
To avoid damaging the lever, do not push it down.
CAUTION:
• Always make sure to press the lockout key before
replacing the presser foot.
• Use the proper foot for the selected pattern. The
wrong foot can cause the needle to break.
(1)
(2)
1.
3.
4.
2.
