Janome HORIZON Memory Craft 9480 QC PROFESSIONAL User Manual

96

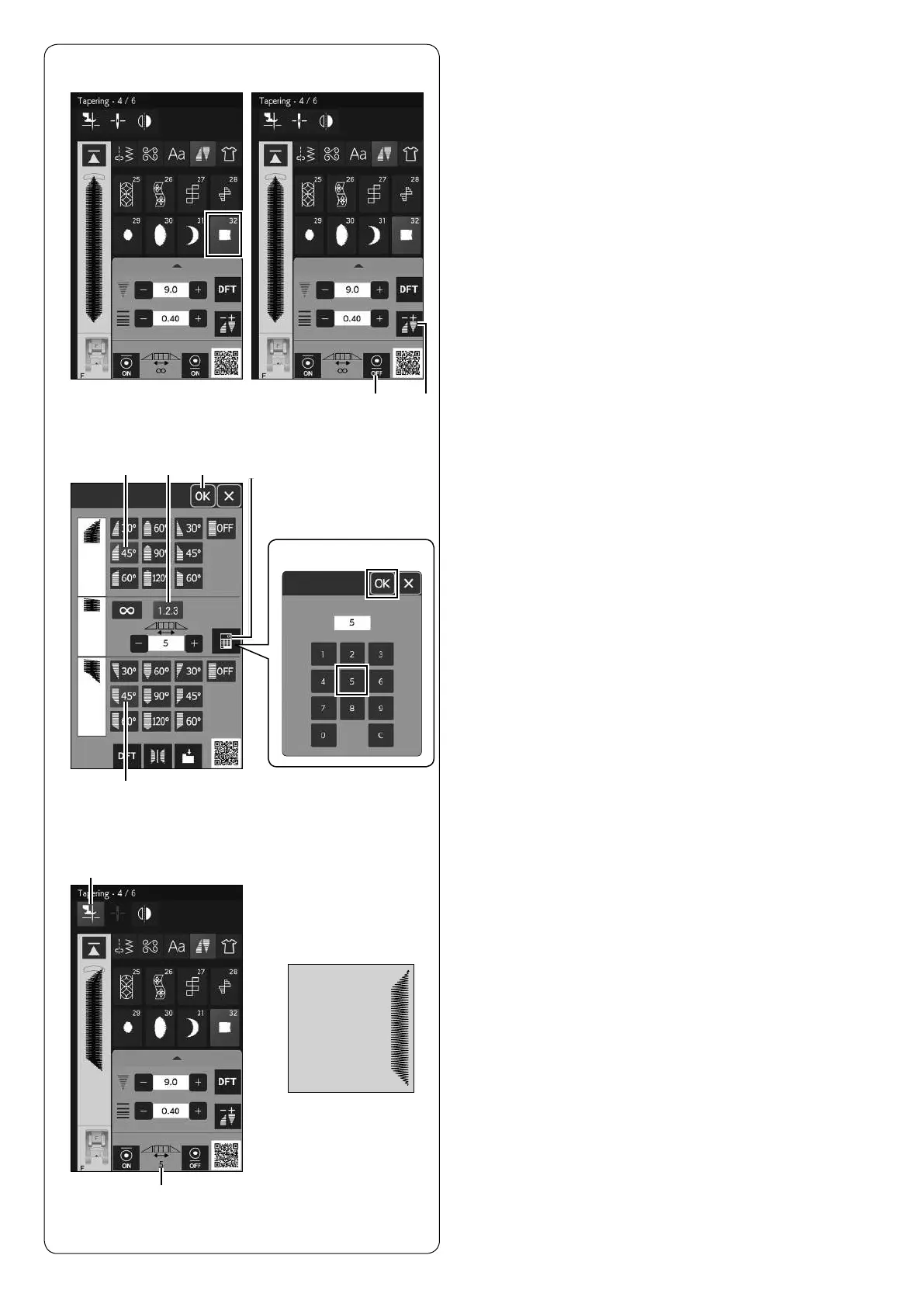

Tapered Stitch Sample 2
Example:
To create a corner frame with tapered stitch
pattern #32
1.
Select stitch pattern #32.
2.
Press the end lock stitch key to turn off the end lock
stitch.
(1) End lock stitch key
3.
Press the tapering adjustment key.
(2) Tapering adjustment key
4.
Press the tapering shape key (for start tapering
pattern).
Press the tapering shape key (for end tapering
pattern).
Press the pattern length key.
Press the “+” key 4 times or press the numeric pad
key and enter “5” (refer to page 94).
Press the OK key.
(3) Tapering shape key (for start tapering pattern)
(4) Tapering shape key (for end tapering pattern)
(5) Pattern length key
(6) Numeric pad key
(7) OK key
5.
Press the foot-up key.
You can check the number of body patterns on the
screen.
(8) Foot-up key
(9) Number of the body pattern
6.
Lower the needle into the fabric at the point where
you want to start sewing.
Start sewing. Sew until the machine stops.
The machine stops and the presser foot rises
automatically.
(1)
(4)
(3) (5)
1. 2. 3.
4.
(8)
5. 6.
(2)
(6)(7)
(9)

Janome HORIZON Memory Craft 9480 QC PROFESSIONAL Specifications

General

Maximum Stitch Width	9mm
Stitch Width	9mm
Maximum Stitch Length	5mm
Stitch Length	5mm
LCD Screen	Yes
LCD Touch Screen	Yes
Built-in Memory	Yes
Memory Function	Yes
Automatic Needle Threader	Yes
Built-in Needle Threader	Yes
Weight	26.5 lbs
AcuFeed Flex System	Yes
Automatic Thread Tension	Yes
Start/Stop Button	Yes
Needle Up/Down Setting	Yes
Thread Cutter	Yes
Automatic Thread Cutter	Yes
Knee Lifter	Yes
Speed Control	Yes
USB Port	Yes
Lighting	LED
