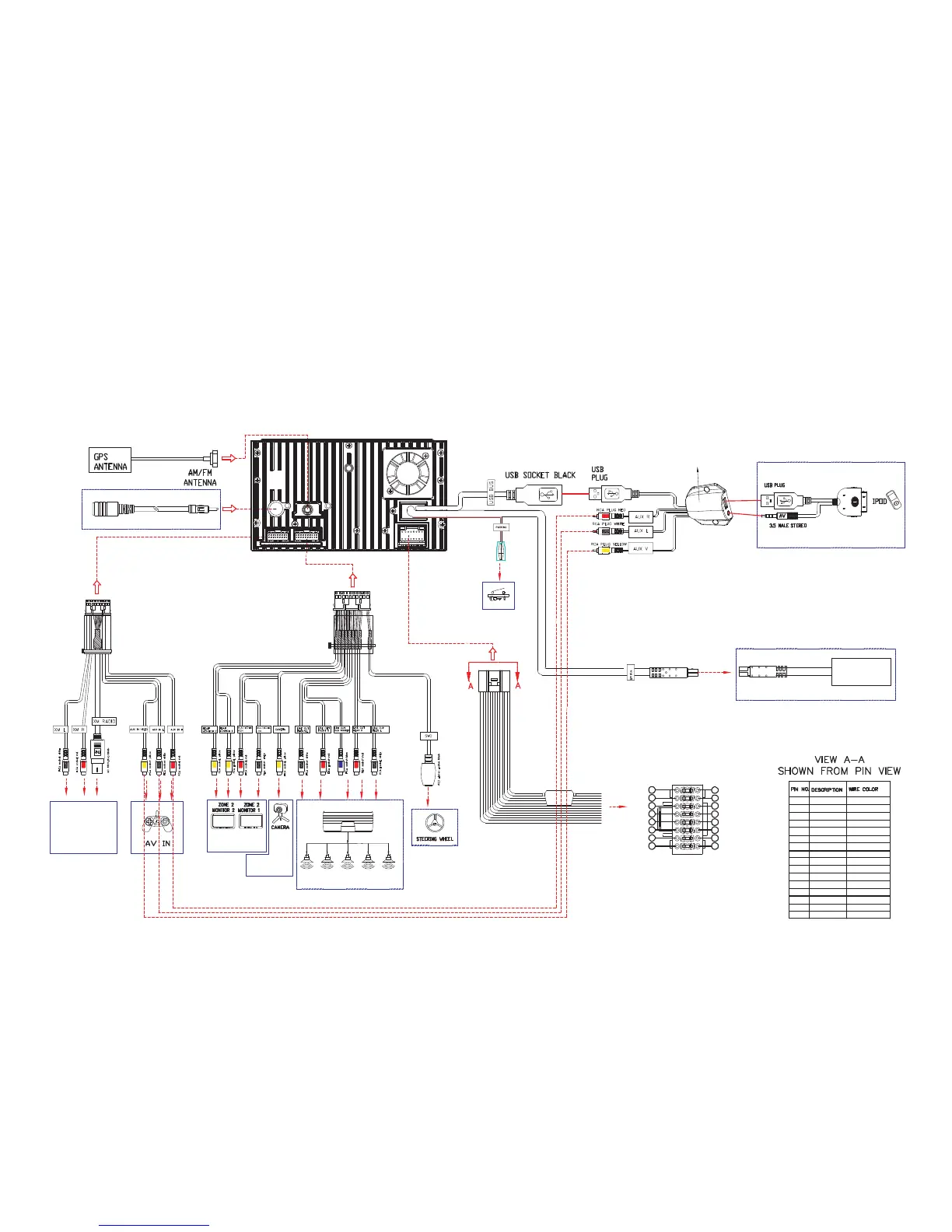

Wiring Diagram
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an
experienced technician.
Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815.
MediaLink USB
(Included)
jLink USB iPod Interface Cable
(Sold Separately) - Required for iPod
Video Viewing through Head Unit
FUSE 15A
Connect to
Optional BTM10
(sold Separately)
NOTE: Steering Wheel Control (SWC)
Requires PAC SWI-PS Interface
Adapter, Sold Separately
Additional Monitors
Sold Separately
Backup Camera
Sold Separately
Connect to optional
XM Satellite Radio
Receiver with Antenna
Parking Brake
(Pink Wire)
1
2
34
5
6
78
9
10
11 12
13 14
15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
RL-
FL-
RL+
FL+
RR-
FR-
RR+
FR+
P.ANT
REVERSE
P.CONT
MUTE
ACC
ILLUM
GND
B+
GREEN/BLACK
WHITE/BLACK
GREEN
WHITE
VIOLET/BLACK
GRAY/BLACK
VIOLET
GRAY
BLUE
GREEN/WHITE
BLUE/WHITE
BROWN
RED
ORANGE
BLACK
YELLOW
To Next Page
