Operation Manual
Water Tank With Filters
The 100 gal. (440 L) water tank houses two
lter bags (Figure 50) that lter supply water.
Check the lter bags daily.
A oat valve assembly automatically shuts
off the water supply into the tank when the
tank is full. When the oat rises with the water
level, a shut off valve attached to the oat
will close off the supply water. The assembly
is non-adjustable and must be replaced as a
unit.
An overow port (elbow tting) is located at
the top of the tank should the oat fail.
A low level switch (Figure 51) mounted on the
back of the tank shuts off the engine in the
event that the tank runs low on water. The
control panel will display “Emergency Stop” if
this occurs.
WARNING
!!
Do not plug or plumb this port. This port acts as a
vent and must remain open.

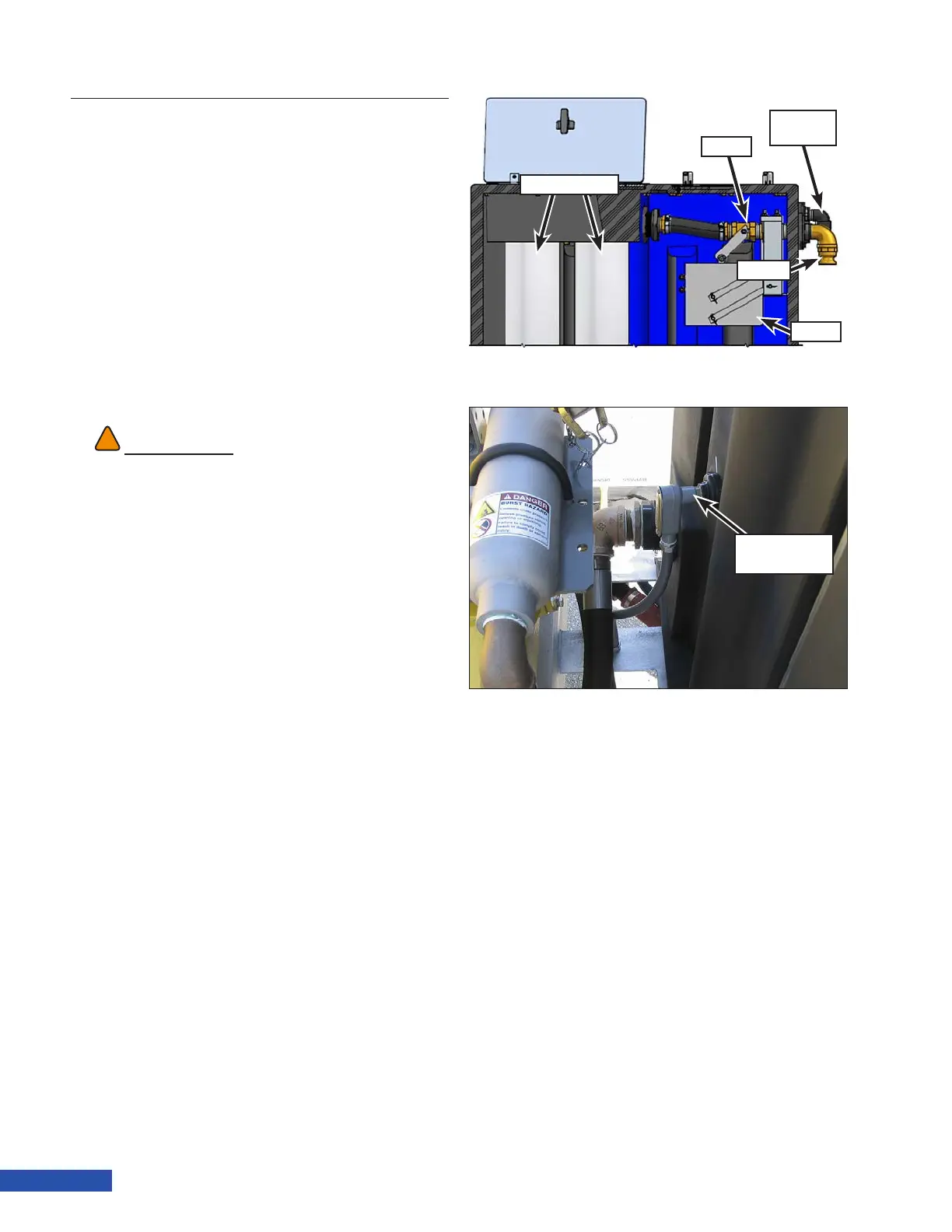

Figure 51: Low Level Switch.
Low Level
Switch
Figure 50: Water Tank Cutaway.
Filter Bags
Valve
Float
Supply
Overflow
Port
