6. Remove the cotter pin (Figure 61) from the
hinge rod and remove the rod.
7. Remove the top manifold bolts (Figure
62) at each corner.
Note: The pump wrench can be used
with a hammer to remove the
manifold bolts.
8. Install manifold mounting studs (Figure
63) into the two open holes to allow for
easier installation of the new manifold.
Note: Manifold mounting studs can be
purchased from Jetstream. (p/n
54261)
9. Continue removing the remaining mani-
fold bolts.
Manifold
Bolts
Figure 62: Manifold Bolt Removal.
Manifold Mount-
ing Studs
Figure 63: Manifold Mounting Stud Installation.

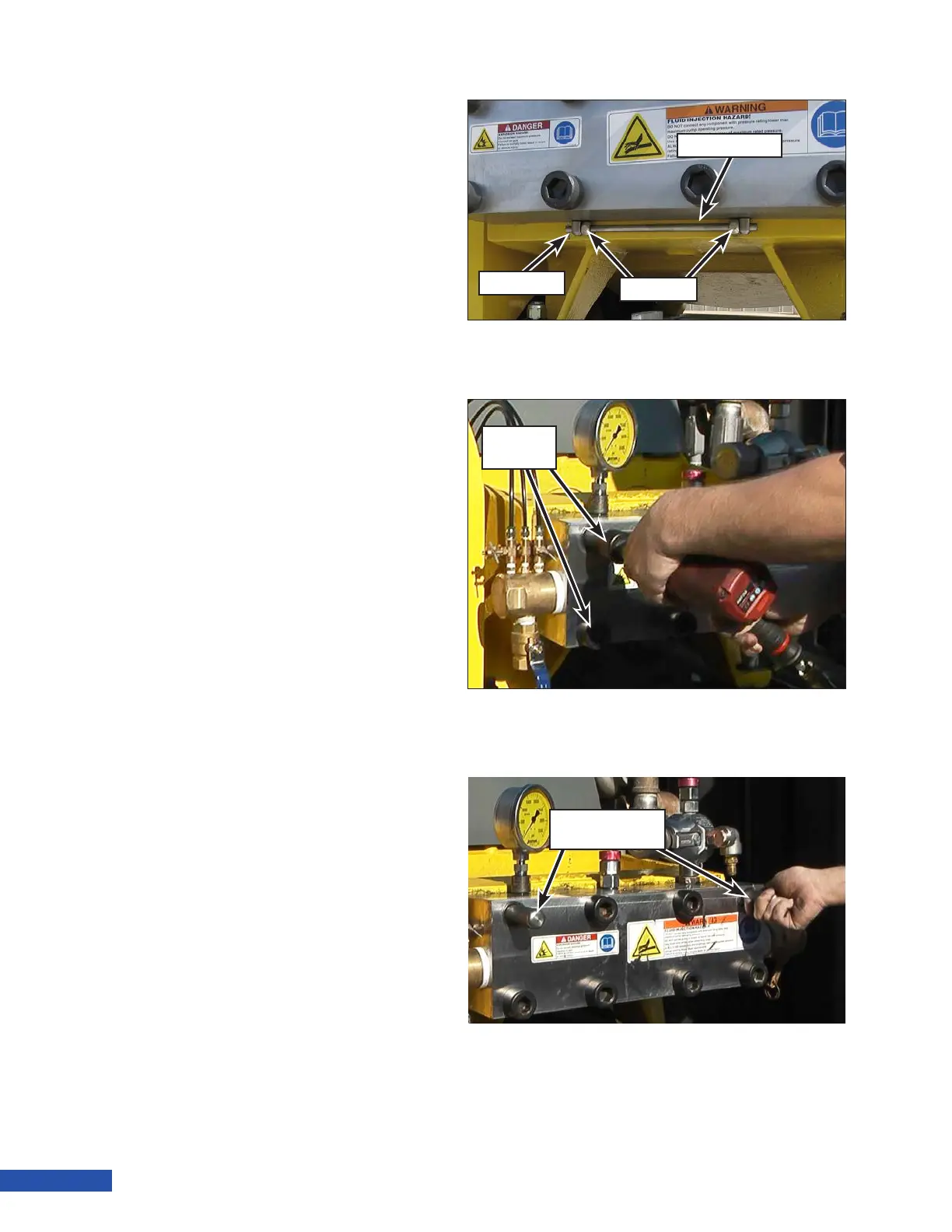

Figure 61: Hinge Rod, Trunnions, and Cotter Pin.
Hinge Rod
Cotter Pin
Trunnions
