output is configurable from the Head Pressure Control screen when the feature is Enabled. Output
wiring is described in the Field Connections section of the Wiring Diagram (Form 160.84-PW2 and
PW4):

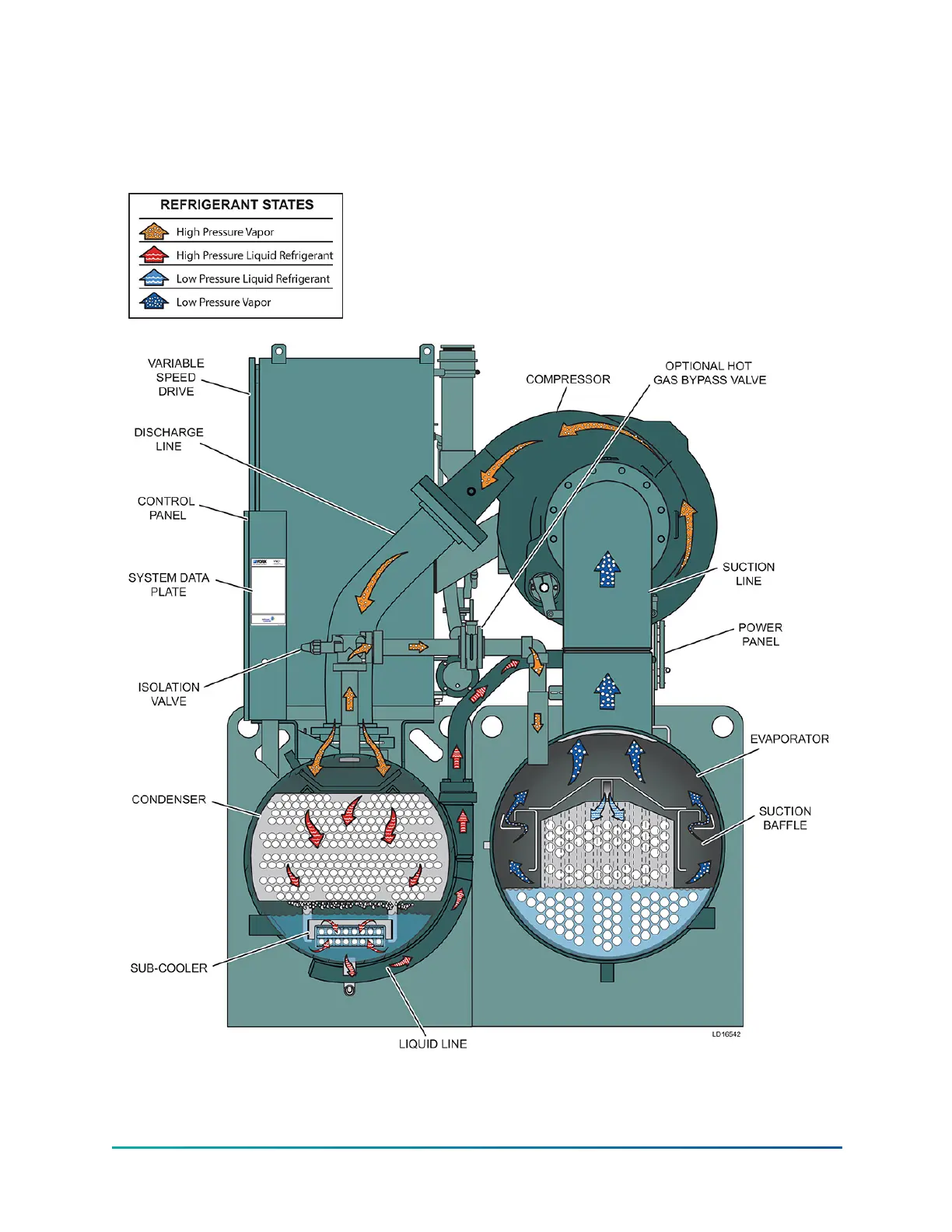

Figure 7: Refrigerant flow-through chiller
YMC
2
Mod B with OptiView
™
Control Center
