Compressor screen

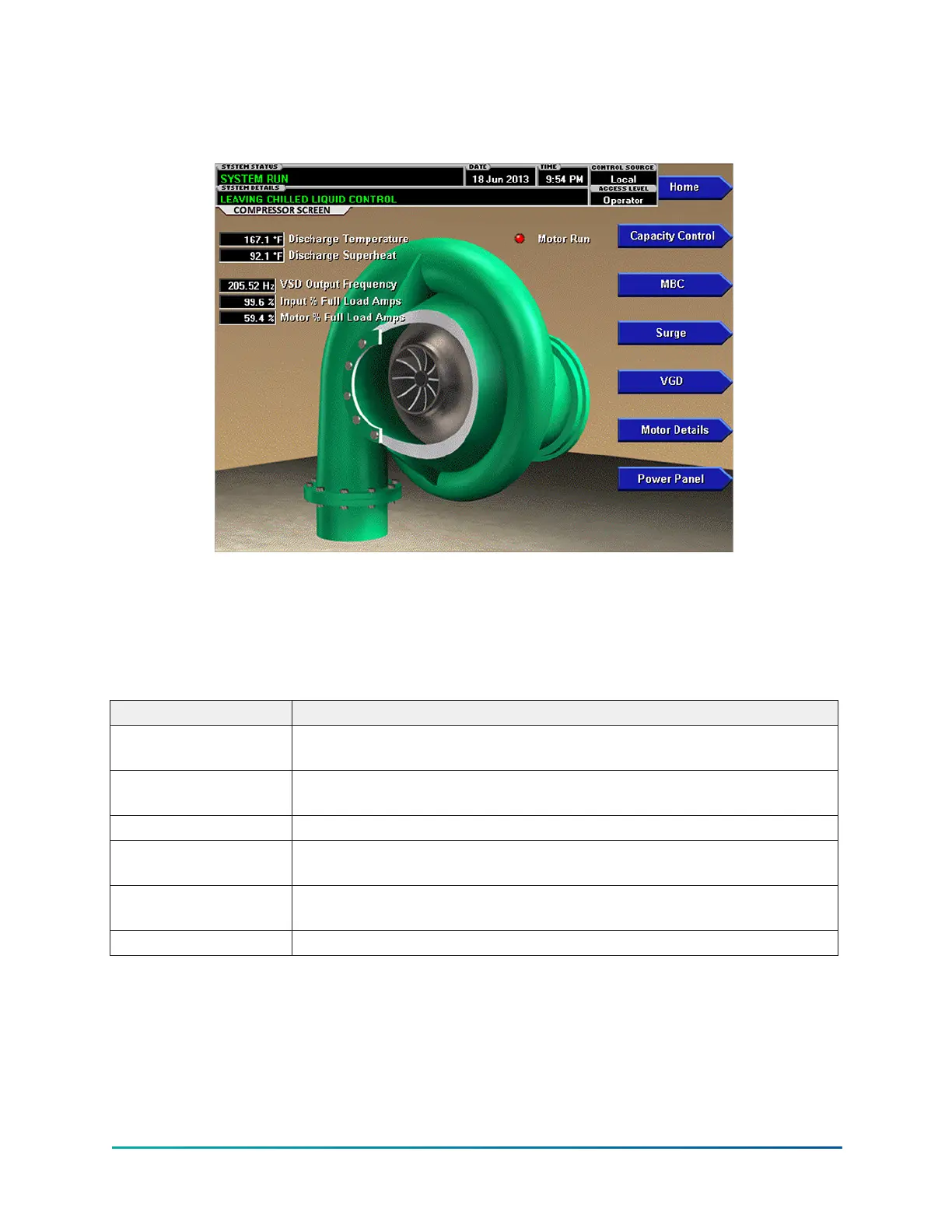

Figure 15: Compressor screen
This screen displays a cutaway view of the chiller compressor, revealing the impeller, and shows
all conditions associated with the compressor. Animation of the compressor impeller indicates
whether the chiller is presently in a RUN condition. This screen also serves as a gateway to
subscreens for jumping to capacity control and displaying MBC, Surge and VGD and Power Panel
detail.
Table 21: Display only fields
Field/LED name Description
Discharge Temperature
Displays the temperature of the refrigerant in its gaseous state at
discharge of the compressor as it travels to the condenser.
Discharge Superheat
Displays the Discharge superheat, calculated as (Discharge Temperature
– Condenser Saturation temperature).
Motor Run (LED) Indicates ON when the digital output run command to the VSD is on.
Input % Full Load Amps
Displays the chiller current as a percentage of the job input Full Load
Amps (FLA) value.
Motor % Full Load
Amps
Displays the current to the motor as a percentage of the motor
maximum current.
VSD Output Frequency Displays the VSD frequency.
There are no programmable fields on this screen.
47
