Comms screen

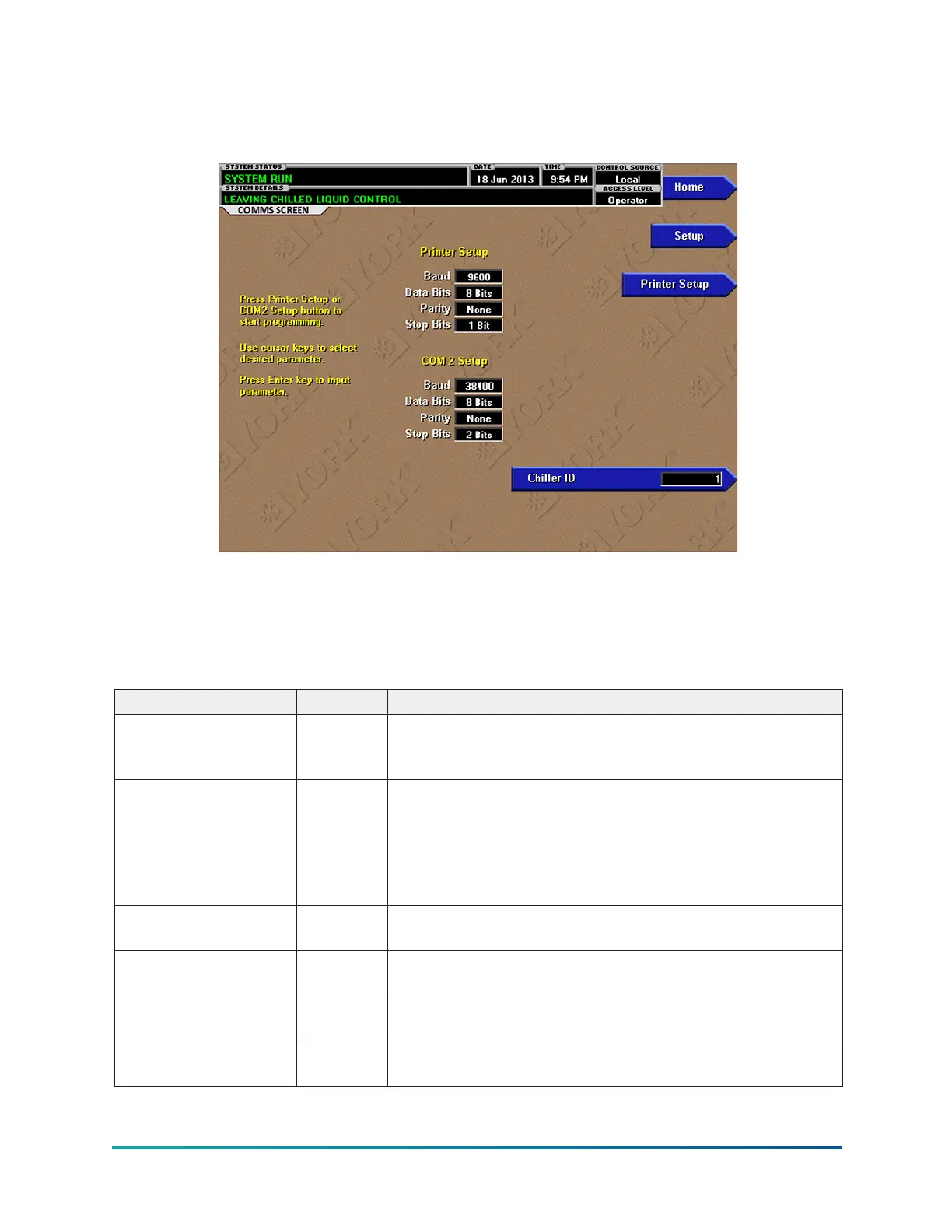

Figure 29: Comms screen
This screen allows definition of the necessary communications parameters. See Printing for details
on the printer connections and setup. Presently, there are no COM 2 communications features
available.
This screen displays attributes assigned to COMMS IDs. There are no other display options.
Table 54: Programmable
Button Access Description
Chiller ID Operator
Define the numeric chiller ID when used within an BAS
network of chillers. This ID number is also printed at the top
of reports obtained with a local printer.
Printer Setup Operator
Pressing either key places a green selection box around
the first changeable parameter. Use the ▲ and ▼ buttons
to place the selection box around the desired parameter
to be changed. With the selection box around the desired
parameter, press the ENTER (tick) button. A dialog box is
displayed permitting data entry.
Printer Baud Rate
Define the baud rate at which the panel shall communicate
to the printer.
Printer Data Bit(s)
Define the number of data bits with which the panel shall
communicate to the printer.
Printer Parity Bit(s)
Define the number of parity bits with which the panel shall
communicate to the printer.
Printer Stop Bit(s)
Define the number of stop bits with which the panel shall
communicate to the printer.
