1. Determine the location of the wall
hole based on the location of the
outdoor unit.
2. Using a 65mm (2.5in) or 90mm
(3.54in) (depending on models) core
drill, drill a hole in the wall. Make sure
that the hole
is drilled at
a slight
downward angle, so that the outdoor
end of the hole is lower than the
indoor end by about 12mm (0.5in).
This will ensure proper water
drainage.
3. Place the protective wall cuff in the
hole. This protects the edges of the
hole and will help
seal it when you
finish the installation process.
CAUTION
When drilling the wall hole, make
sure to avoid wires, plumbing, and
other sensitive components.
Wall
IndoorOutdoor
≈ 12mm / 0.5 inch

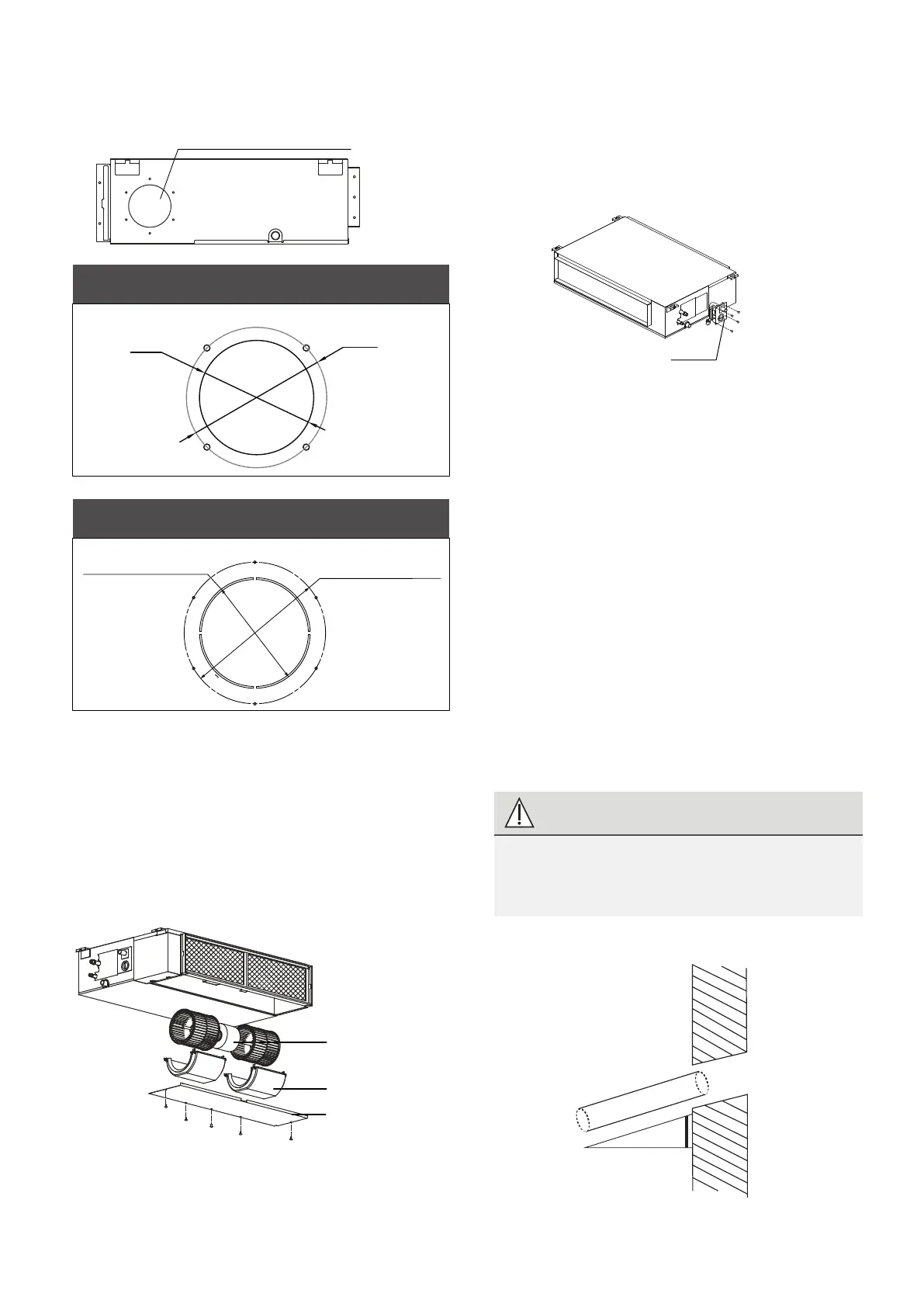

Step 5: Fresh air duct installation
Dimension:
Duct joint for fresh air
Ø92mm(3.62”)
Ø113mm(4.45”)
MODEL
9-12
Ø125mm(4.92”)
Ø160mm(6.3”)
MODEL
18-60
Motor maintenance:
Take off the ventilated panel.
Take off the blower housing.
Take off the motor.
1.
2.
3.
Step 6: Motor and drain pump
maintenance (the rear ventilated panel
is used as an example)
Pump maintainance:
1. Remove four screws from the
drain pump.
2. Unplug the pump power supply
and water level switch cable.
3. Detach the pump.
Pump
Step 7: Drill wall hole for connective piping
Motor
Blower housing
Ventilated
panel
To Next Page
