Johnson JDMV2W - Note on Air Switch

13.
14.
15.
16.
Make sure that you do not cross
your electrical wiring with your
signal wiring. This may cause
distortion and interference.
The unit must be connected to
the main outlet. Normally, the
power supply must have a
impedance of 32 ohms.
No other equipment should be
connected to the same power
circuit.
Connect the outdoor wires before
connecting the indoor wires.
WARNING
NOTE ON AIR SWITCH
When the maximum current of the
air conditioner is more than 16A, an air
switch or leakage protection switch
with protective device shall be used
(purchased separately). When the
maximum current of the air
conditioner is less than 16A, the power
cord of air conditioner shall be
equipped with plug (purchased
separately). In North America, the
appliance should be wired according
to NEC and CEC requirements.
12. To avoid getting an electric shock,
never touch the electrical compo-
nents soon after the power supply
has been turned off. After turning
off the power, always wait 10
minutes or more before you touch
the electrical components.
NOTE: The cographs are for expla-
nation purpose only. Your ma-
chine may be slightly different.
The actual shape shall prevail.

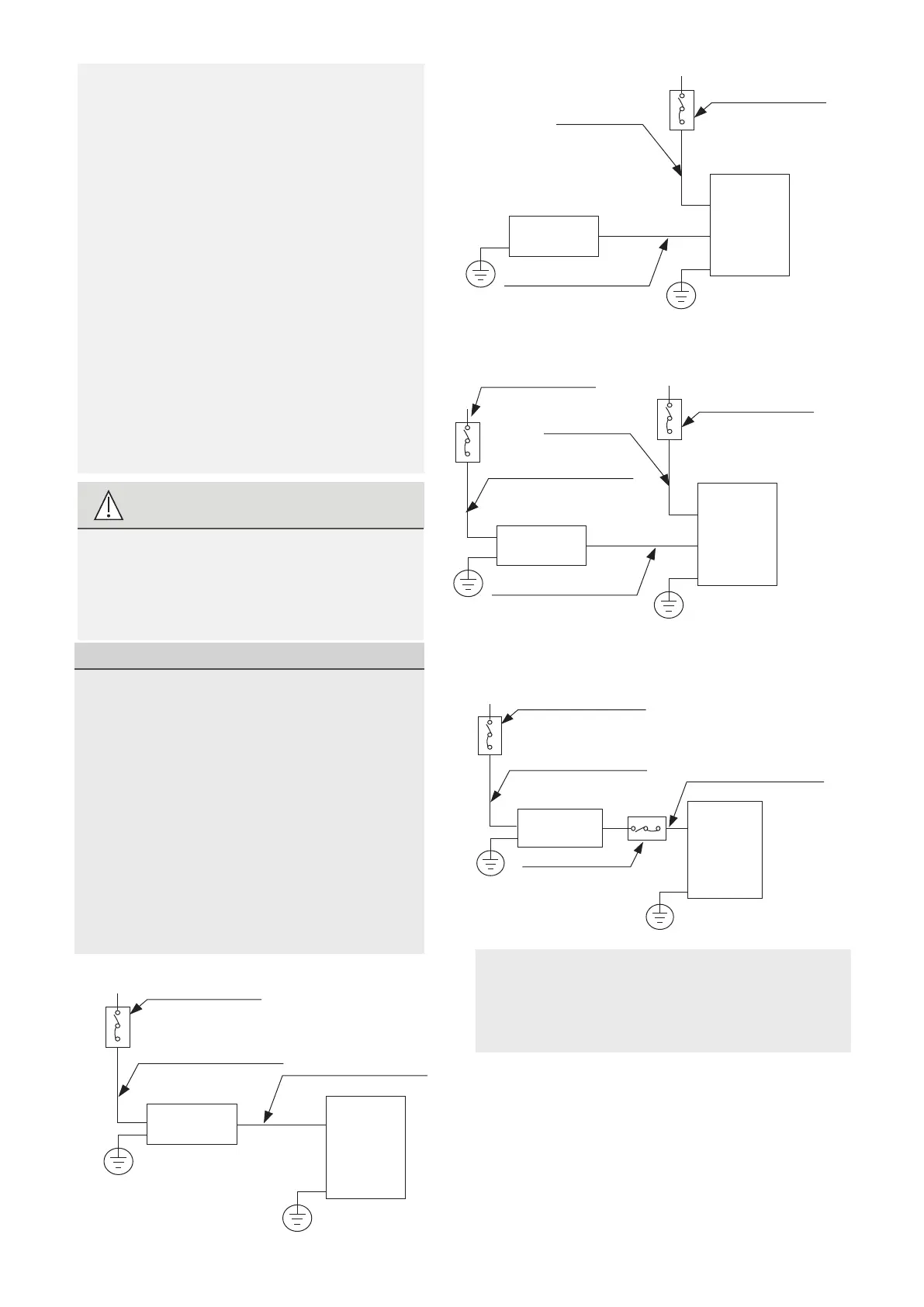

Indoor
unit
Outdoor
unit
Air switch
(purchased separately)
Air switch
Indoor & Outdoor
connective wires
(purchased
separately)
Outdoor unit
Air switch
(purchased separately)
Outdoor unit power wires
(purchased separately)
Indoor unit power wires
Outdoor unit power wires
Indoor
unit
Outdoor unit
Air switch
(purchased separately)
Indoor unit
power wires
Indoor & Outdoor
connective wires
(purchased
separately)
Indoor & Outdoor
connective wires
(purchased separately)
Indoor unit
(A)
(B)
(C)
Indoor
unit
Outdoor unit
Air switch
(purchased separately)
(Only for the North American)
Air switch
(purchased separately)
(purchased separately)
Outdoor unit power wires
Indoor & Outdoor
connective wires
(D)
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO
THE SYSTEM.
32
V.2
