3. Installation
3.1 Display installation

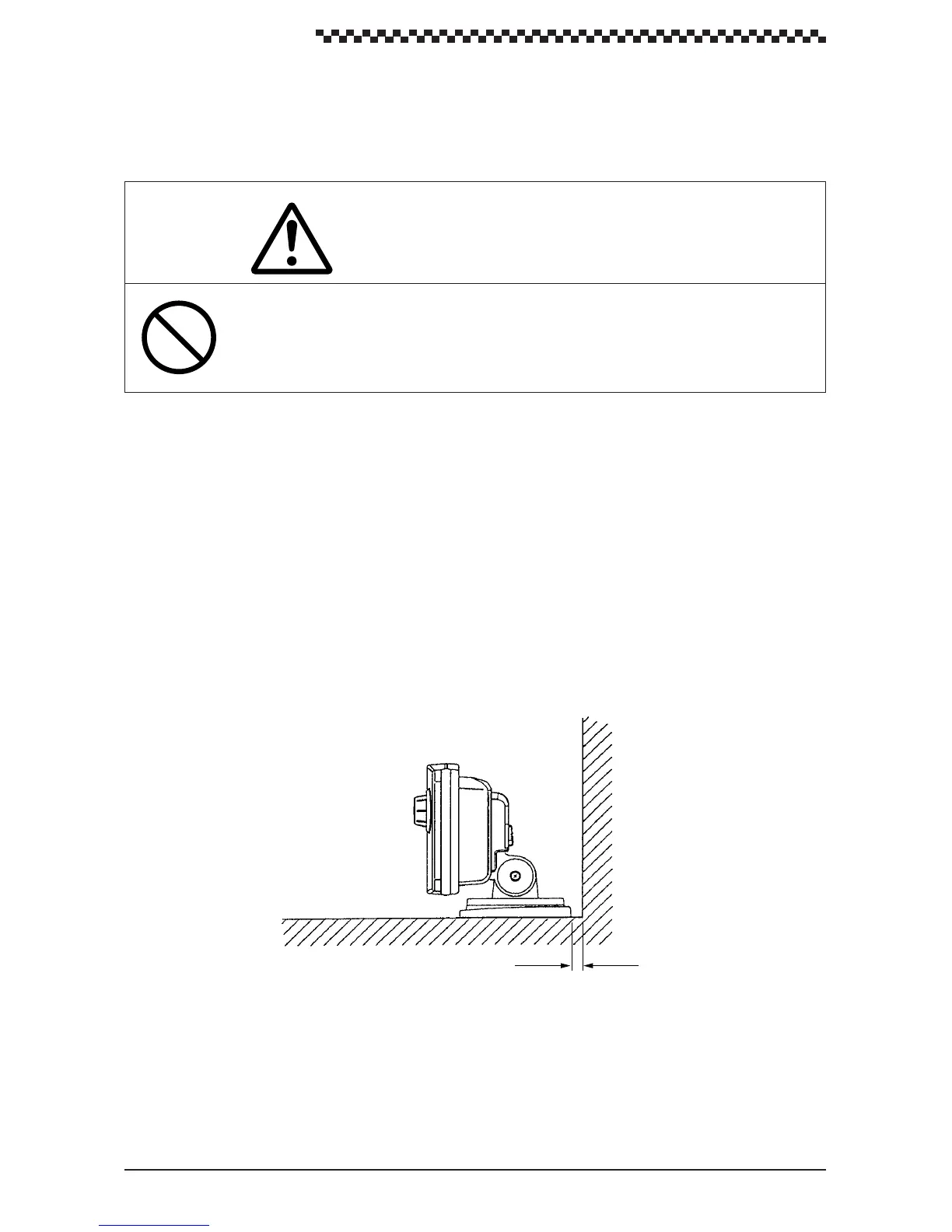

Figure 3-1
Make sure that these space requirements are met.
Tabletop
3.1.1 Choosing the location
When choosing a location to mount this unit, please consider the following two criteria for the site.
• The best location to provide ease of operation and viewing of the unit.
• The best location to provide protection from environmental elements. Avoid locations exposed
to direct sunlight and salt spray. Also avoid improperly ventilated locations and places exposed
to high temperatures.
The unit can be screw-mounted on a chart tabletop. Figure 3-1 shows the mount of free space required
around the unit.
CAUTION
Install this unit at least 1 meter away from a magnetic compass. Otherwise, the unit
may cause the compass to indicate unreliably.
UNIT : mm
10
10
