GPS Navigator J-NAV500
17
3.1.2 Mounting the unit
When installing this unit on a tabletop, use the designated screws to secure the bracket
to a stable wooden surface. Otherwise, the unit could fall and it may cause human
injury or property damage.
Mount the unit according to the following steps.
(1) Determine the mounting location of the unit and mark the holes of the four screws. Figure 3-2
shows the distance between the holes.
(2) Press the release button to remove the unit from the bracket. (See fig. 3-3)
(3) Secure the bracket to the mounting location with the four supplied tapping screws.
(4) Mount the display unit to the bracket. Make sure that the display unit is firmly attached to the
bracket.
(5) Adjust the unit to the best viewing angle. (See fig. 3-4)

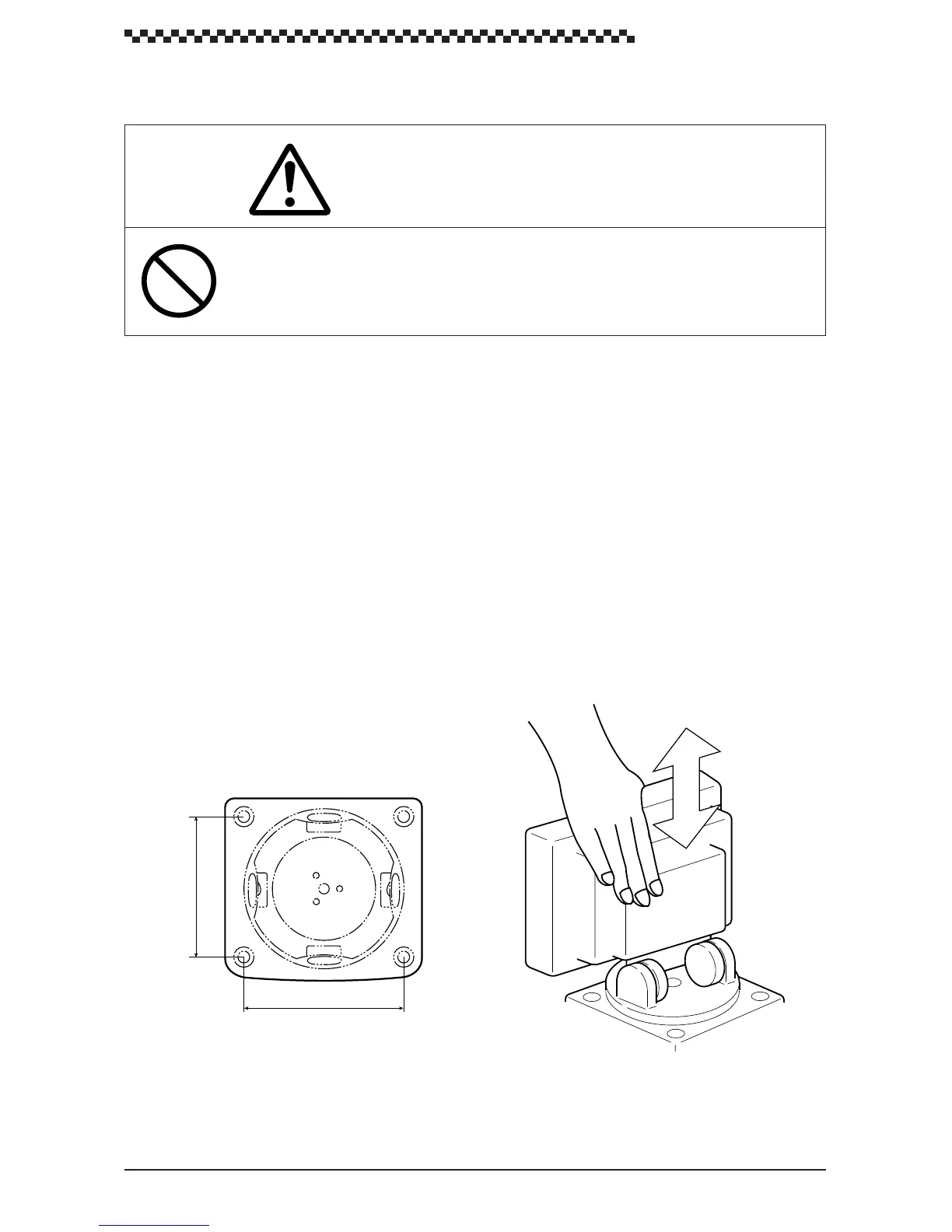

Figure 3-2 Bracket dimensions
84
74.2
CAUTION
Figure 3-3
UNIT : mm
