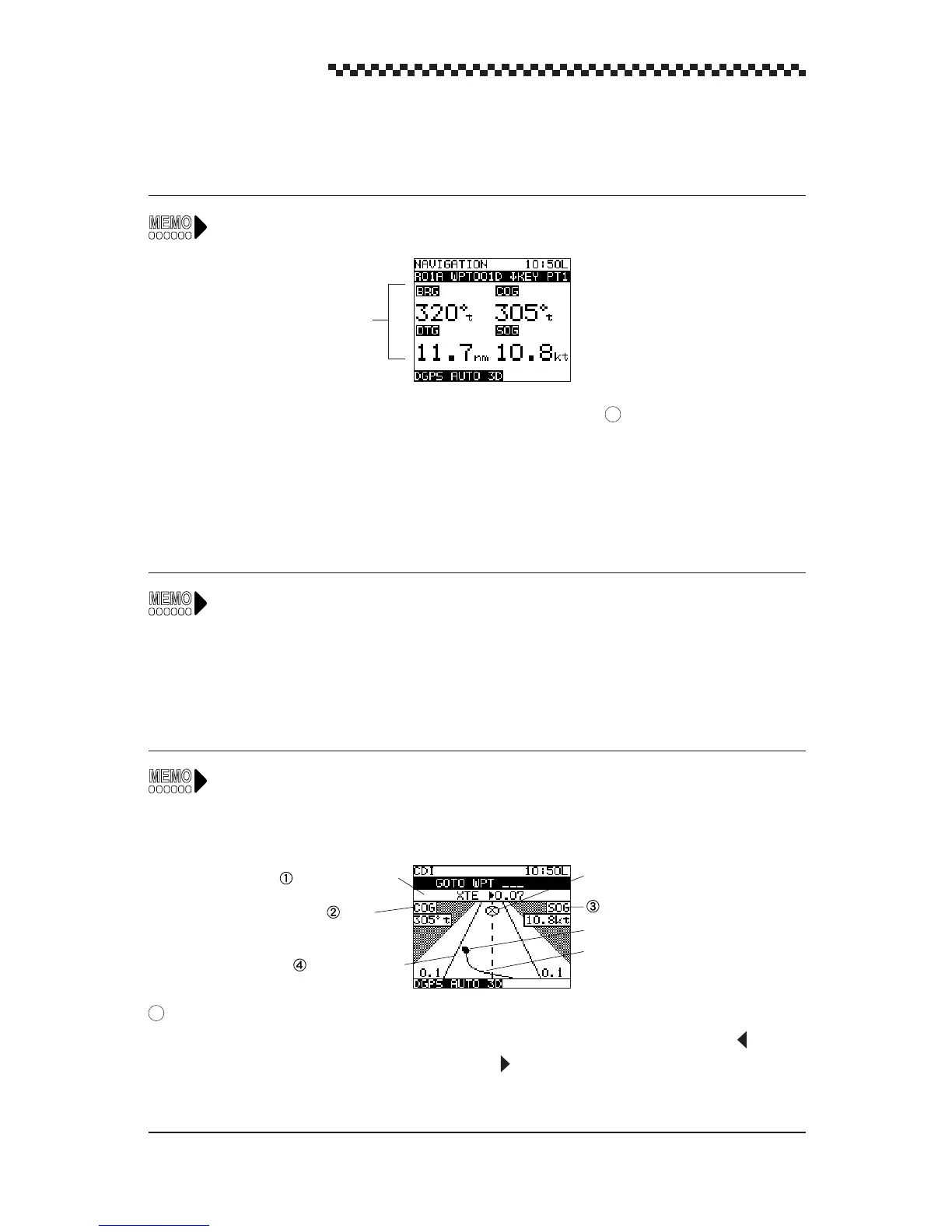

4.5.2 NAVIGATION display mode
This display mode shows the following navigation information.
The type of data displayed in this display mode can be selected in the menus.
[NAVIGATION] display mode is the type of information indicated in , “Navigation information”
described in Section 4.5.1, “POSITION display mode.” For details, see Section 4.5.1, “POSITION
display mode.”
1. BRG/DTG/COG/SOG (default)
2. BRG/DTG/XTE/TTG
3. CMG/VTD/COG/SOG
T he above display mode appears when 1. is selected.
4.5.3 CDI display mode
This display mode offers a graphic representation of course deviation. It displays the data shown below.
The data displayed in this display mode can be changed in the menus.
Course deviation
Shows the deviation from the set course and the direction to steer. (unit: 0.01 nm). The ( ) symbol
indicates that the ship should be turned left and the ( ) symbol indicates that it should turn right to
return to the set course. When the display indicates a deviation of 0.00, the ship will reach its destina-
tion by the shortest route.
Navigation information
Course deviation
Waypoint symbol
Ship symbol
Track line
@ SOG
COG
Range of CDI
7
1
