GPS Navigator J-NAV500
28
4.5 Main Display Modes
This section describes how to interpret the seven main display modes.
• Display modes where waypoints and route plans have already been set are used in the examples.
• For information on items shared by each display mode, see Section 4.5.1, “Position display mode.”
4.5.1 POSITION display mode
This display mode shows current position and navigation informations. The following items are dis-
played in the [Position] display mode.
The data displayed in this display mode can be changed in the menus.
Display mode name
Indicates that the [ POSITION ] display mode is shown.
Time (hour: min)
Displays the current time derived from GPS data.
The character L (default value) indicates local time and U indicates universal time.
(For more information, see Section 4.15, “Setting CDI range and Display Time Format.”)
Route plan number
Displays the currently selected route plan number (R01 to R20). The symbol A indicates that route
plan are automatically stepped. No symbol is displayed for manual step. (See Section 4.10, “Navigation
according to route plans.”)
The message “WPT NO DEST” is showed when no waypoint has been selected in a route plan or direct
route selection.

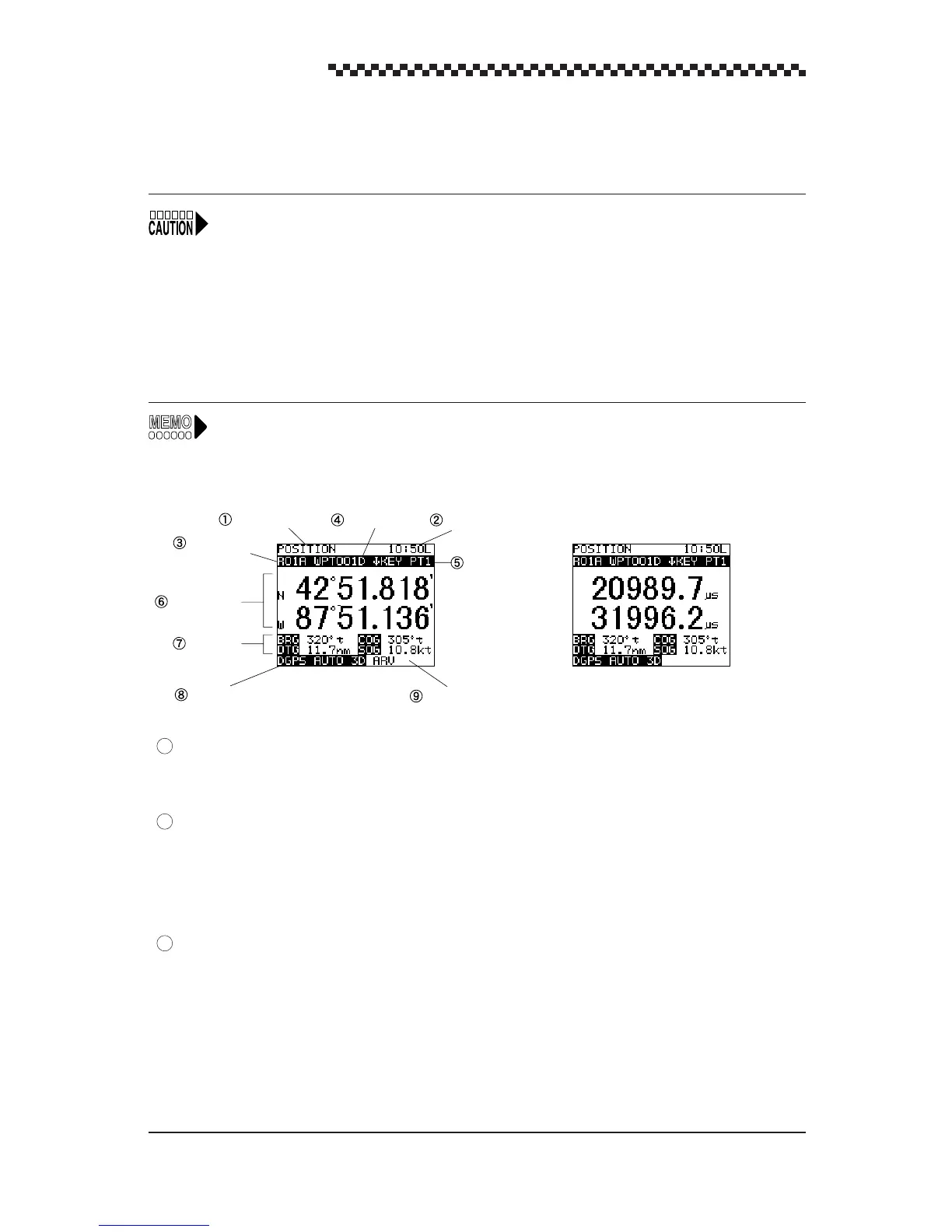

[Latitude/Longitude] display mode [Loran C Time Difference] display mode
Display mode name
Route plan number
Current position
Navigation
information
Position fix status Navigation alarm
Waypoint number Time
Waypoint name
1
2
3
