JRC J-NAV 500 User Manual

GPS Navigator J-NAV500
15
2.2 Rear panel

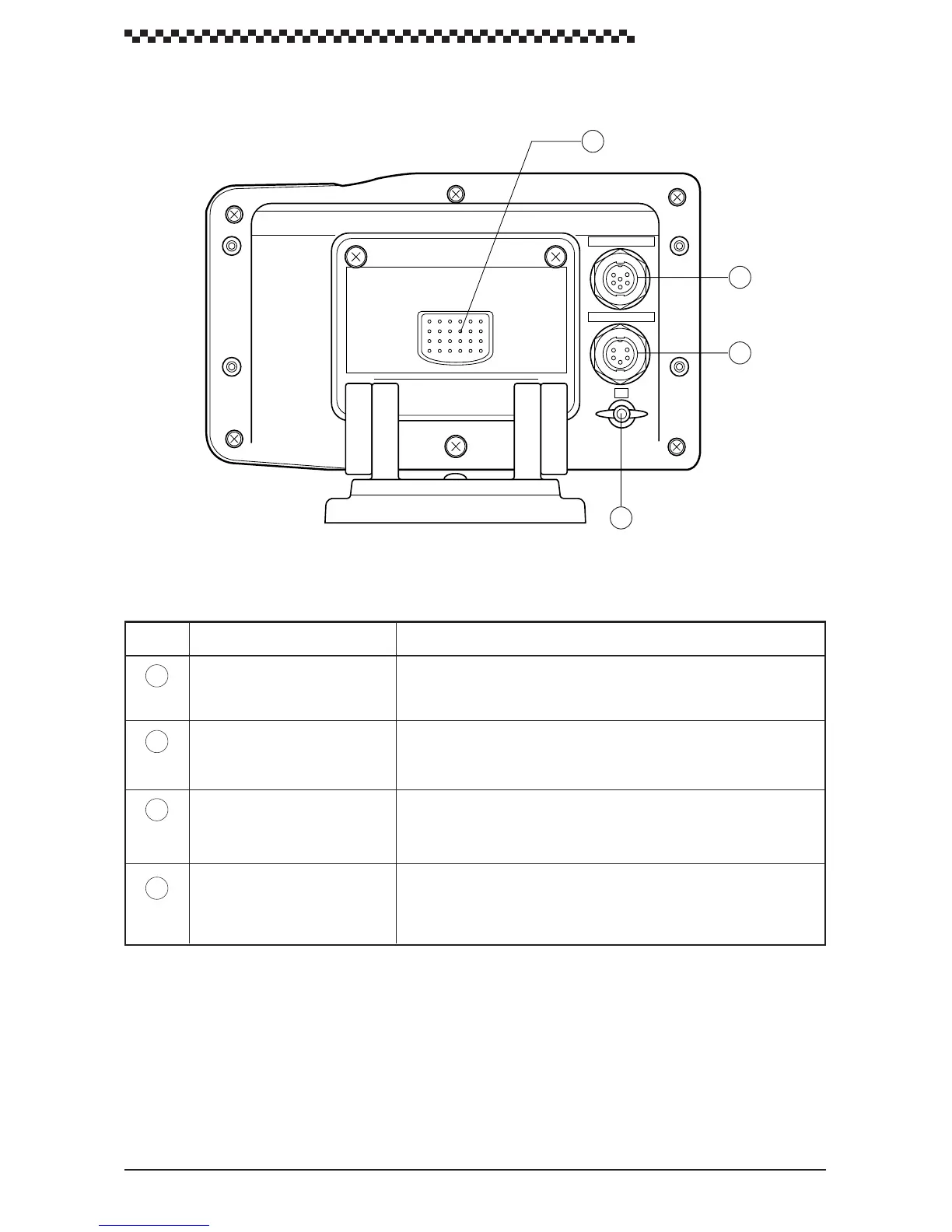

Figure 2-2
No. Name Function
Press this button to remove the display unit from the bracket.Release button
Connector for GPS or DGPS receiver (GPS 100 or DGPS 200)
Connects supplied power cable.
(Includes data I/O lines)
GPS/DGPS
DC PWR/DATA
Terminal for connecting to vessel ground.
E terminal
GPS/DGPS
DC PWR/DATA
E
10
11
12
13
10
11
12
13
