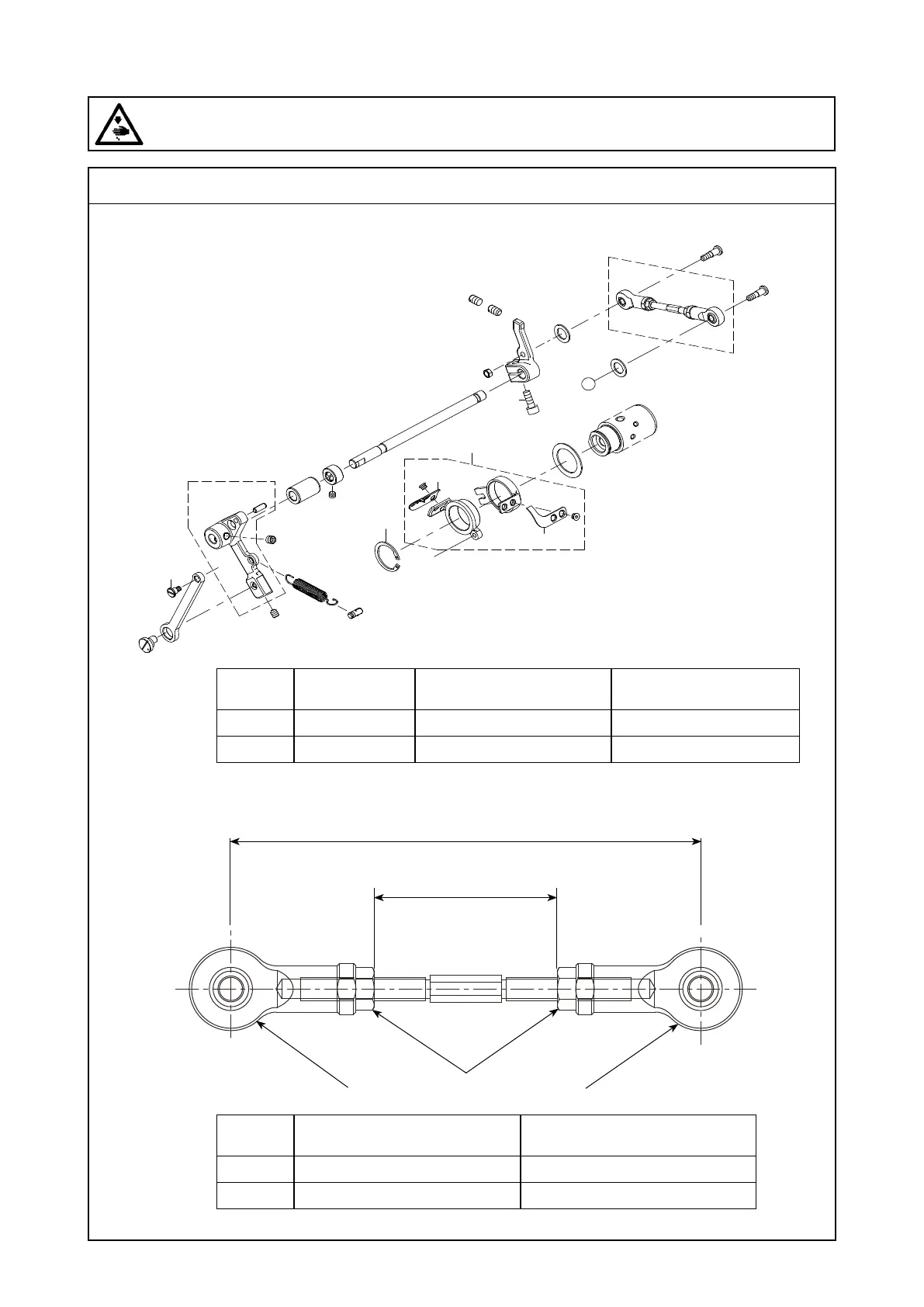

10) Installed length of the thread trimmer connector bar (asm.)
H type
101.5±0.2mm
S type
99.7±0.2mm
H type
Reference value
=
39.5mm)
S type
Reference value
=
37.7mm
Knife unit
Part No.
Handling device knife
Part No.
Thread trimmer knife
Part No.
S type 40172485 40172487 40172486
H type 40174319 40172487 40172486
Connecting rod (asm.) R
Part No.
Connecting rod (asm.) R
dimension
S type 40174398 99.7±0.2mm
H type 40174323
101.5±0.2mm
(9) Adjusting the thread trimming unit
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Standard adjustment
9) Adjustment of the driven part stopper
– 66 –
