JUKI DDL-9000C-S Series - External Parts Attachment and Positioning

8
.

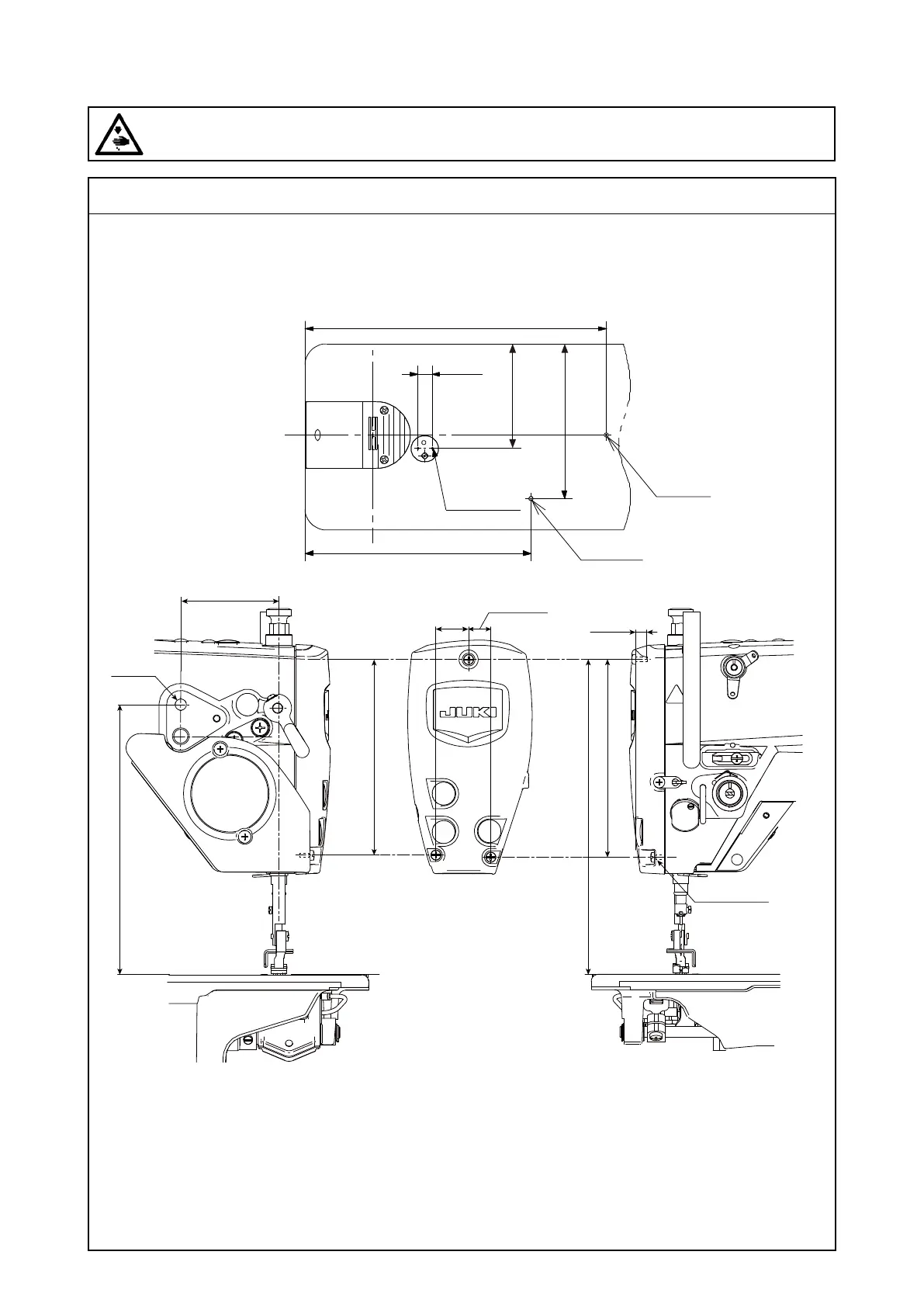

Screws for attachment and positions of external parts
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Standard adjustment
283.5
213
13.5
100.6
148.5
137.5
170
2×M4
Depth 4
22.5
15.3
M4
134.1
70
M8
Depth 9
192.5
M4
Depth 4
M4
Depth 4
M4 Depth 4
