JUKI DDL-9000C-S Series - Adjusting the Thread Trimming Unit; Adjustment of the Thread Trimming Cam Position; Adjustment of the Thread Trimming Link Stopper Screw

G
❾
❻
❽
❼
❸
16.5mm
❺
❶
❸
2mm
❷
❹

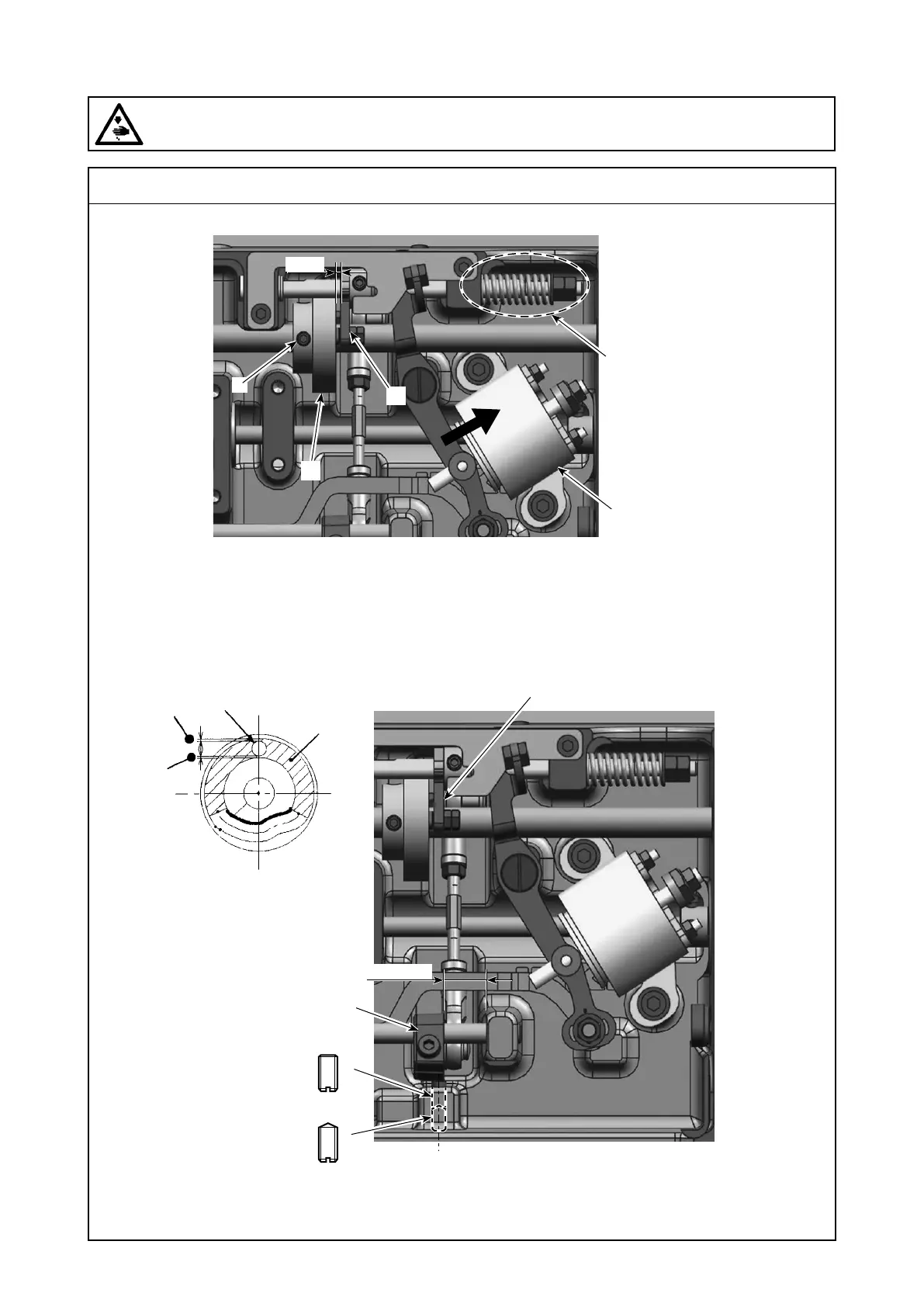

(9) Adjusting the thread trimming unit
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Standard adjustment
1) Adjustment of the thread trimming cam position
2) Adjustment of the thread trimming link stopper screw
– 52 –
The screw tip is at.
The screw tip is pointed.
Inside
Outside
