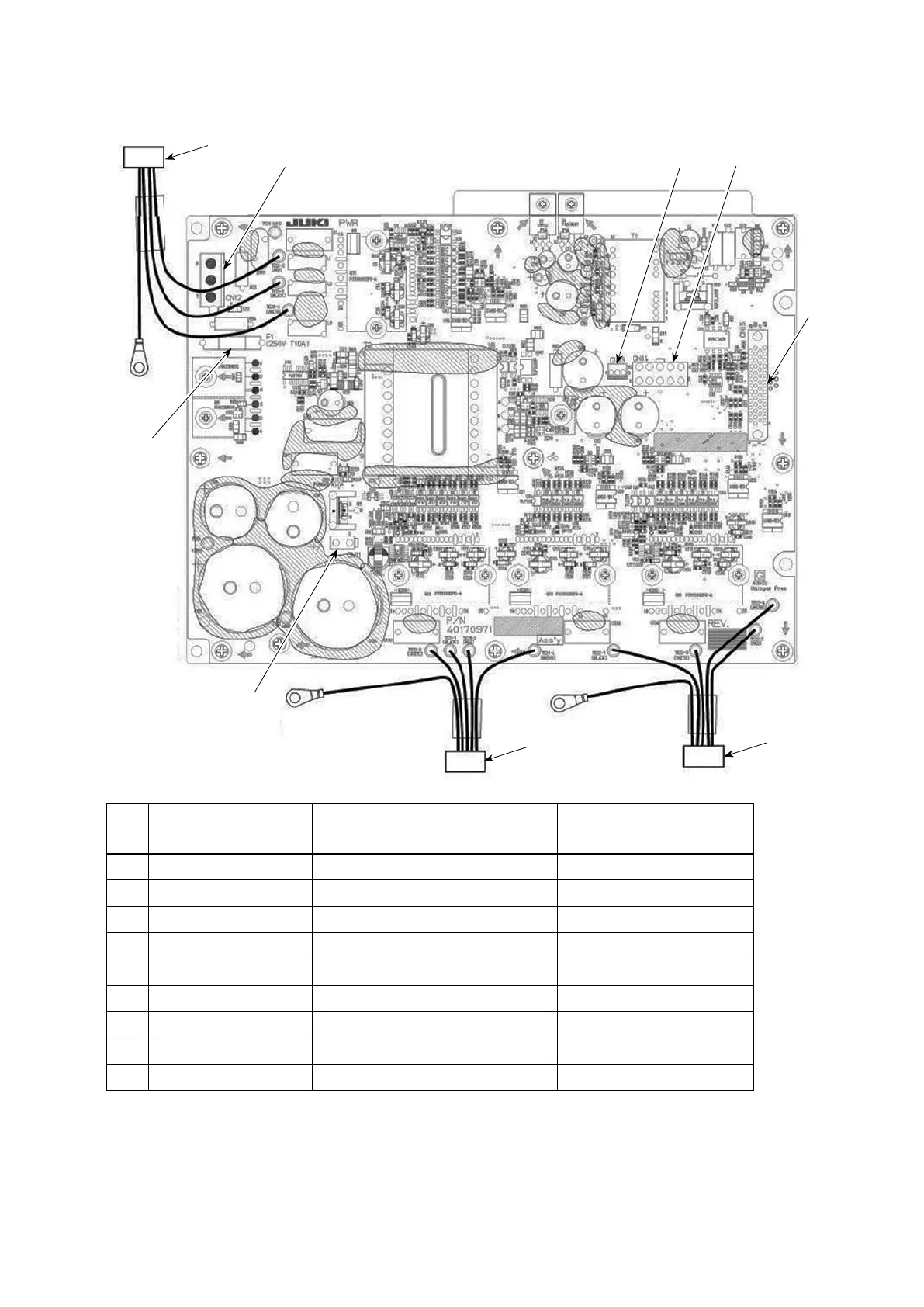

3) PWR board assembly /PWR -CE board assembly
Generation of a power supply and board that drives a principal axis motor, a horizontal feed motor, and a
vertical feed motor
No.
Names of connector
and fuse
Name of the destination to
connect
Remark
CN11 Regenerative resistance
CN12 FLT board Power input
CN13 CTL board Auxiliary power for the AT
CN14 CTL board Power output
CN15 CTL board I/O Signal
CN20 Main motor power
CN21 Horizontal motor power
CN22 Upper and lower motor power
F1 10A Time-lag fuse Unremoval
