Various boards
No. Names of connector and fuse Name of the destination to connect Remark
❶
CN1 Power switch Power input
❷
CN2 PWR board Power output
❸
FG Frame ground
❹
F1,F2,F3 20A Time-lag fuse Unremoval
No. Names of connector and fuse Name of the destination to connect Remark
❶
CN1 Power switch Power input
❷
CN2 PWR board Power output
❸
FG Frame ground
❹
F1,F2,F3 20A Time-lag fuse Unremoval
❹
❸
❶
❷

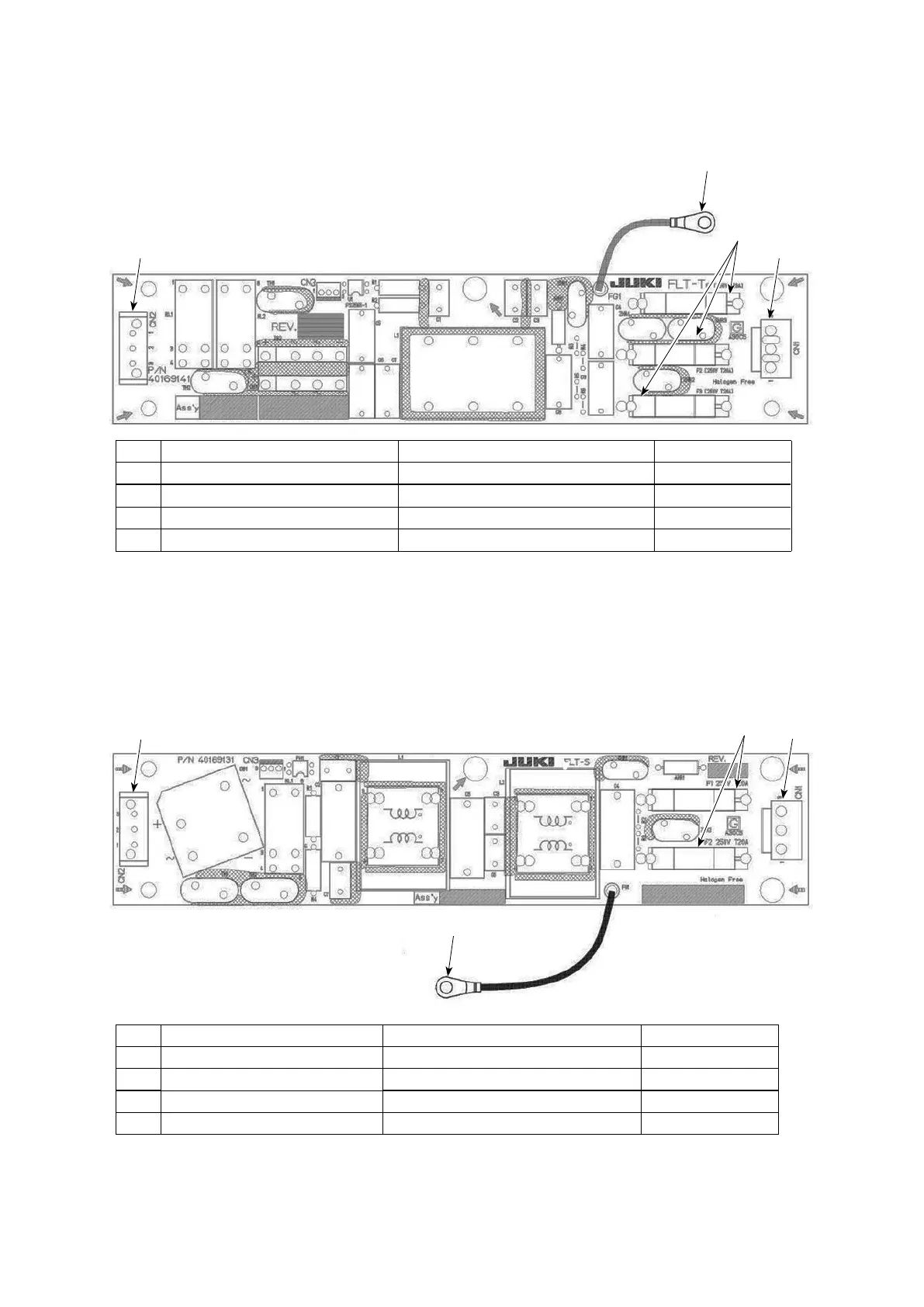

1） FLT-T board assembly
Power lter board for the three-phase of 200-240V specication/single-phase 100-120V specication
2） FLT-S board assembly
Power lter board for the single-phase 220V-240V specication and the CE specication
❸
❷
❶
❹
– 123 –
