(3) Optional input-output connector
When counters and the like are connected or as the destination to output the timing signal from the sewing
machine, an external input-output connector is prepared for the SC-951/950. In addition, as for the functions
of each connector pin, it is possible to change the already initialized functions or set a new function.
(Caution) Engineers who have electric knowledge should work when it is used.
1) How to set an optional input-output function（DDL-9000C-S）

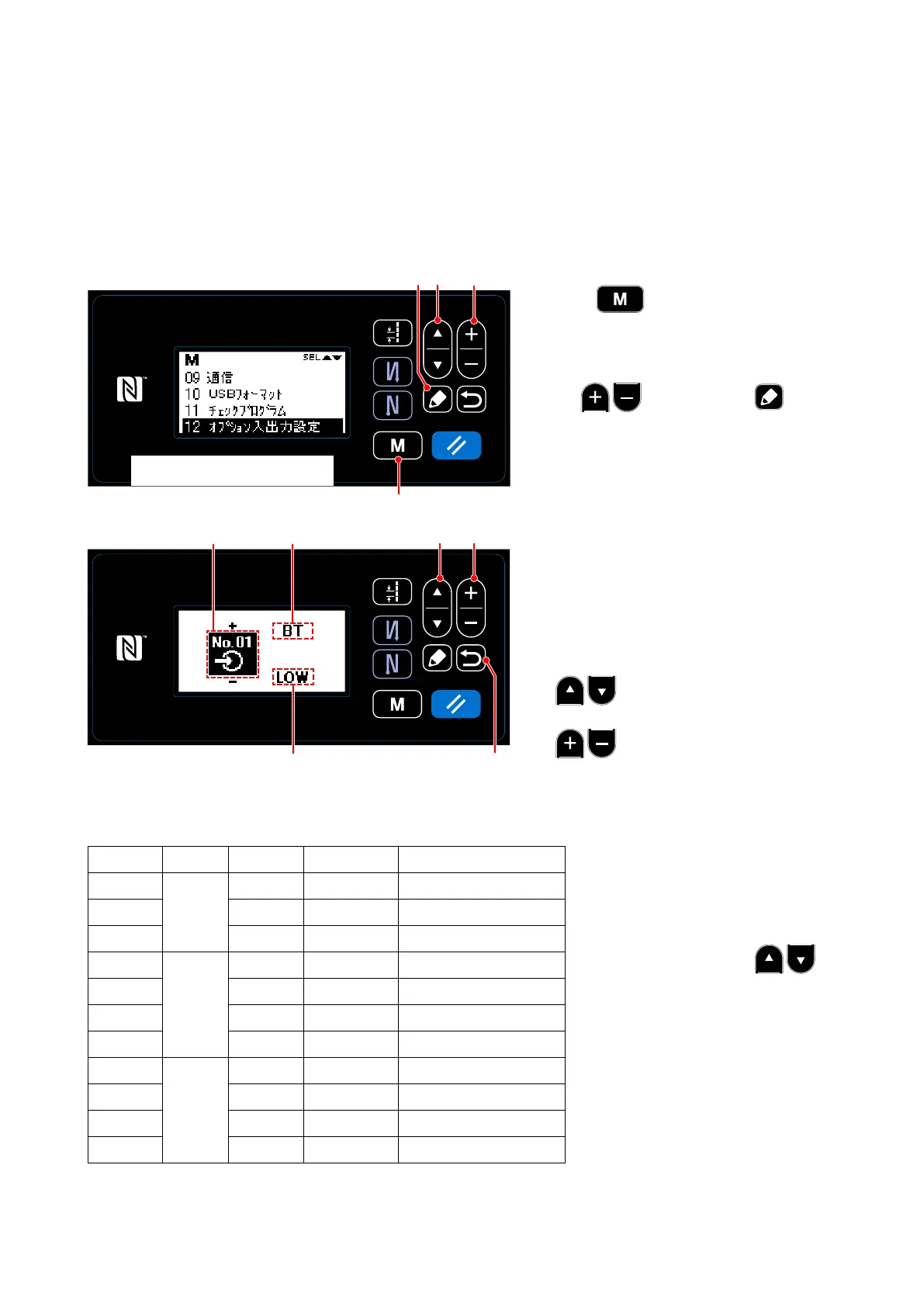

1. Keep ❾ held pressed for six
seconds on the sewing screen to display
the mode screen.
2. Select "12 Optional I/O setting" by press-
ing ❷. Then, press ❺ to
display the optional input/output setting
screen.
3. How to set an input function
Description of a display screen and an
input switch
A: Input number
B: Name of an input function
C: Active settings of a signal
❶：
Switch the changes (A, B, and C).
❷：
Change the set contents of A, B, and C.
❶❺
❶ ❷
❷
❾
Correspondence table between an input number and a connector number
IN�No. CN No. Pin�No. Initialization Electrical specication
1
CN32
29 BTSW
DC5V、-5mA
2 30 NOP
DC5V、-5mA
3 31 OTSW
DC5V、-5mA
4
CN39
7 TSW
DC3.3V、-3.3mA
5 5 FLSW
DC3.3V、-3.3mA
6 9 HSSW
DC3.3V、-3.3mA
7 11 LSSW
DC3.3V、-3.3mA
8
CN51
7 NOP
DC5V、-5mA
9 8 NOP
DC5V、-5mA
10 9 NOP
DC5V、-5mA
11 10 NOP
DC5V、-5mA
(Note) The CN32 is selected as the function of a switch placed on the LED_BT_UNIT.
4. Settings of the destination to
input a signal
Select the input number (IN�
No.) by pressing the
❶ and specify the destination to
input a signal.
(Check it with the correspon-
dence table between an input
number and a connector num-
ber.)
❻
BA
C
画面をご支給ください
– 127 –
