Juniper EX3200 Series User Manual

CHAPTER 11
Connecting the Switch
•
Connecting Earth Ground to an EX Series Switch on page 141
•
Connecting AC Power to an EX3200 or EX4200 Switch on page 147
•
Connecting DC Power to an EX3200 or EX4200 Switch on page 149
•
Connecting an EX Series Switch to a Network for Out-of-Band Management on page 152
•
Connecting an EX Series Switch to a Management Console on page 153
•
Connecting an EX Series Switch to a Modem on page 155
•
Connecting a Fiber-Optic Cable to an EX Series Switch on page 158
Connecting Earth Ground to an EX Series Switch
To meet safety and electromagnetic interference (EMI) requirements and to ensure
proper operation, you must connect the switches to earth ground before you connect
them to power.
For installations that require a separate grounding conductor to the chassis, use the
protective earthing terminal on the EX Series switch chassis to connect to the earth
ground (see Figure 52 on page 141).

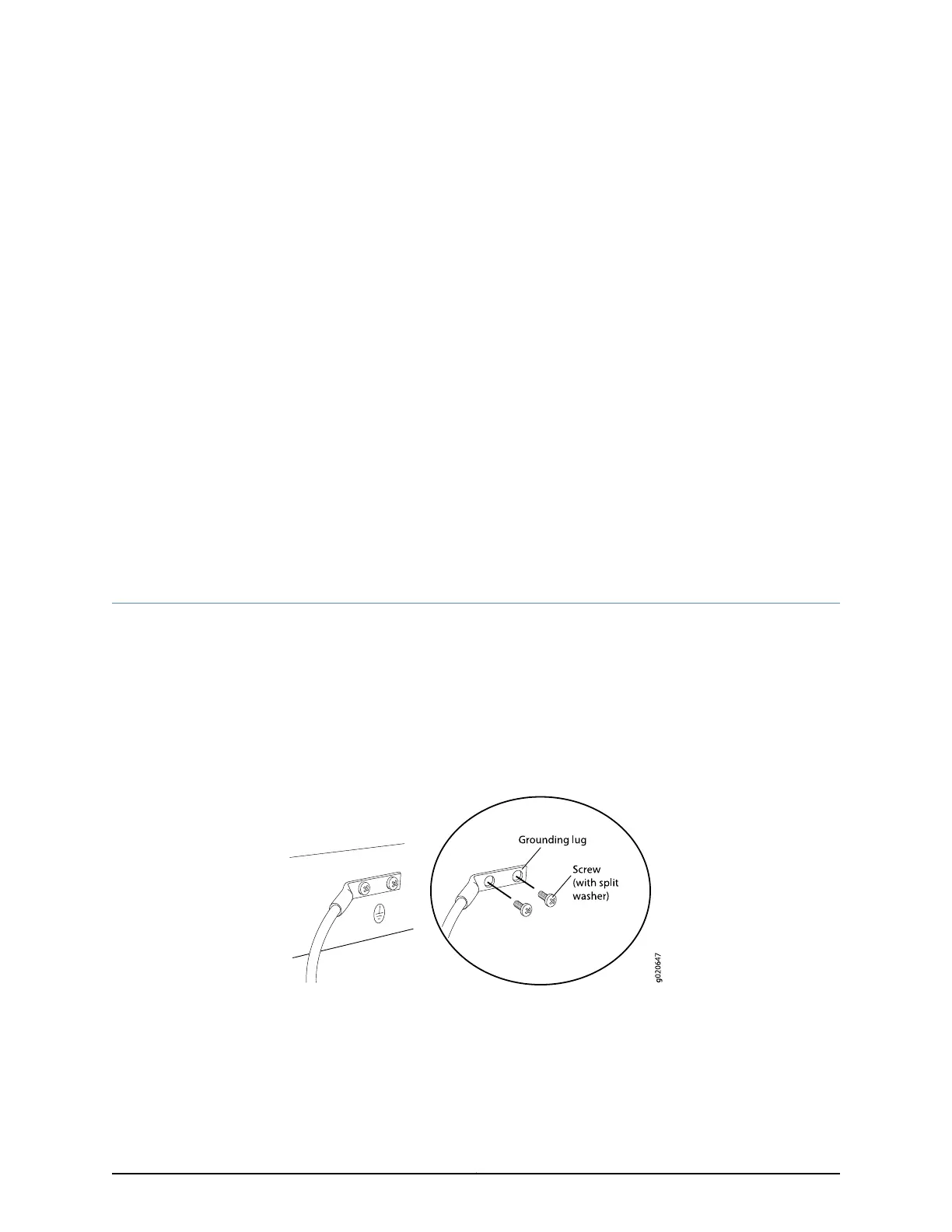

Figure 52: Connecting a Grounding Cable to an EX Series Switch
Before you connect earth ground to the protective earthing terminal of an EX Series
switch, ensure that a licensed electrician has attached an appropriate grounding lug to
the grounding cable.
141Copyright © 2010, Juniper Networks, Inc.

Juniper EX3200 Series Specifications

General

Model	EX3200 Series
Rack Units	1 U
Layer	Layer 2/3
Maximum VLANs	4094
Ports	24 or 48
Power Supply	AC or DC power supply options
Power Supply Voltage	100 to 240 VAC or -48 VDC
Operating Humidity	10% to 90% non-condensing
Uplink Ports	4 SFP or SFP+
Operating Temperature	32°F to 104°F (0°C to 40°C)
