CAUTION: To avoid electrostatic discharge (ESD) damage to the transceiver, do not
touch the connector pins at the end of the transceiver.
7. Using your fingers, grasp the body of the transceiver and pull it straight out of the
port.
8. Place the transceiver in the antistatic bag or on the antistatic mat placed on a flat,
stable surface.
9. Place the dust cover over the empty port.

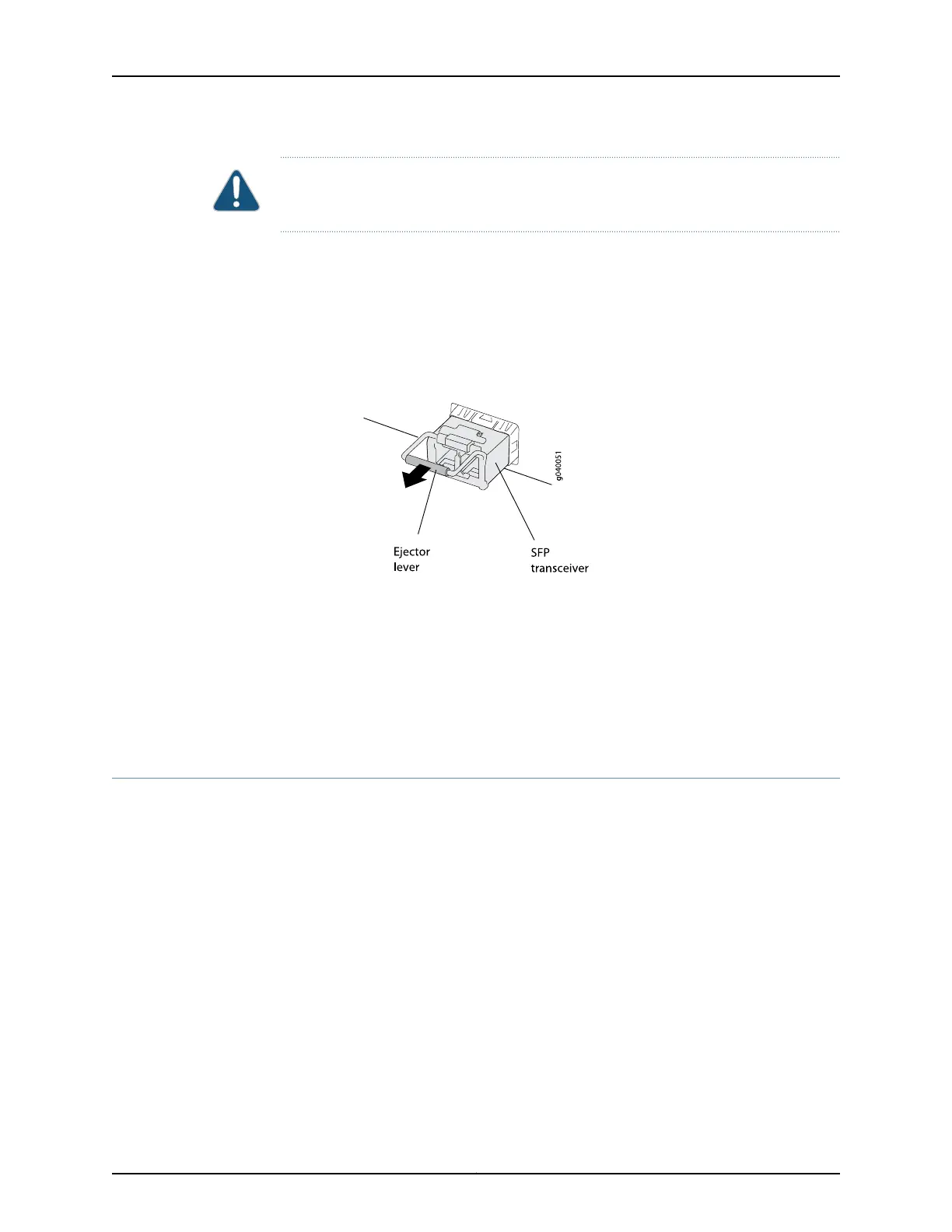

Figure 72: Removing a Transceiver from an EX Series Switch
Related Topics Installing a Transceiver in an EX Series Switch on page 137•
• Optical Interface Support in EX2200 Switches
• Optical Interface Support in EX3200 and EX4200 Switches on page 43
• Optical Interface Support in EX4500 Switches
• Optical Interface Support in EX8200 Switches
Disconnecting a Fiber-Optic Cable from an EX Series Switch
EX Series switches have field-replaceable unit (FRU) optical transceivers to which you
can connect fiber-optic cables.
Before you begin disconnecting a fiber-optic cable from an optical transceiver installed
in an EX Series switch, ensure that you have taken the necessary precautions for safe
handling of lasers (see “Laser and LED Safety Guidelines and Warnings for EX Series
Switches” on page 213).
Ensure that you have the following parts and tools available:
•
A rubber safety cap to cover the transceiver
•
A rubber safety cap to cover the fiber-optic cable connector
181Copyright © 2010, Juniper Networks, Inc.
Chapter 13: Removing Switch Components

Juniper EX3200 Series Specifications

General

Model	EX3200 Series
Rack Units	1 U
Layer	Layer 2/3
Maximum VLANs	4094
Ports	24 or 48
Power Supply	AC or DC power supply options
Power Supply Voltage	100 to 240 VAC or -48 VDC
Operating Humidity	10% to 90% non-condensing
Uplink Ports	4 SFP or SFP+
Operating Temperature	32°F to 104°F (0°C to 40°C)
